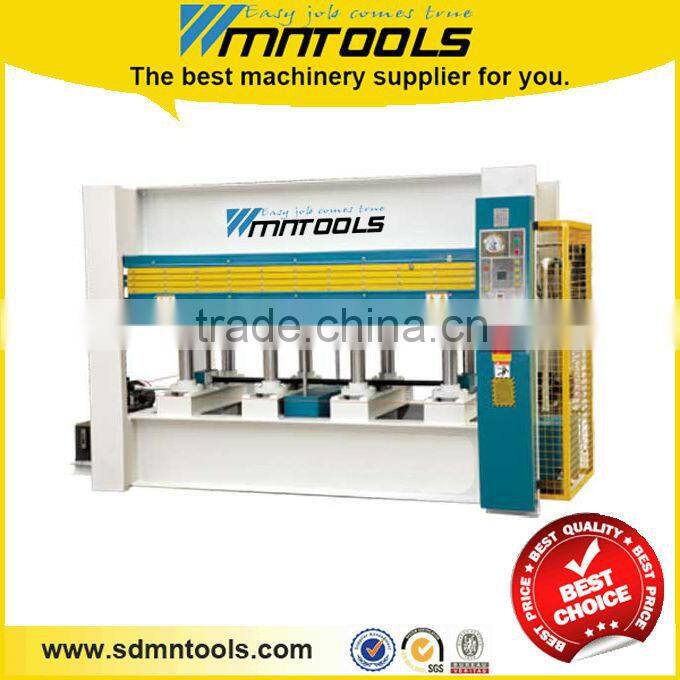

Veneer laminating hot press machine

FOB Price

USD $1 - $1 / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Hot Press Machine
Place of Origin	Shandong, China	Brand Name	MNTOOLS
Model Number	MTMH3848X100 (1 layer)	Voltage	as per request
Power(W)	7.7kw	Dimension(LWH)	3300 x1620 x2030mm
Weight	5450kgs	Certification	ce
Warranty	1 year	After-sales Service Provided	Engineers available to service machinery overseas

Hot press
High quality; Easily operation; Low maintenace
Different pressure rate, platen table size, layers Qty models

Hot press

Product Description

SPECIFICATION:

Model No.	MTMH3848X100 (1 layer)	MTMH3848X100 (2 layer)	MTMH3848X100 (3 layer)
Table size	1300 ×2500 ×42mm	1300 ×2500 ×42mm	1300 ×2500 ×42mm
Max. pressure of worktable	100t(3.1kg/cm2)	100t(3.1kg/cm2)	100t(3.1kg/cm2)
Pressure of hydraulic system	210kg/cm2	210kg/cm2	210kg/cm2
Max.platen opening	300mm	150mm	100mm
Oil cylinder	100 × 6pcs	100 × 6pcs	100 × 6pcs
Hydraulic pump power	5.5kw	5.5kw	5.5kw
Hot oil pump power	2.2kw	2.2kw	2.2kw
Heating pipe power	1 × 18kw	1 × 27kw	2 × 18kw
Overall dimensions	3300 ×1620 ×2030mm	3300 ×1620 ×2030mm	3300 ×1620 ×2030mm
Net weight	5450kg	6600kg	7740kg

CHARACTERISTIC:

	Automatic device for controlling close and open Suitable to press veneer , fireboard , decorating-paper etc. Heating type:
	1.Electric calefaction with circulating heat-transmission oil
	2.Steam gas calefaction with circulating heat-transmission oil
	3.With both electric and steam gas calefaction, special for the unsteady steam gas supply areas (three calefaction model can be selected by the client)
	key spare parts, pump , are imported from Japan, Taiwan
