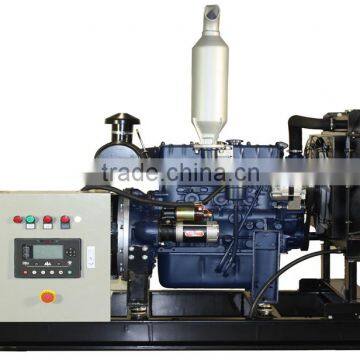

Water cooled 20kw/25kva diesel generator set
Advantage
1. Water cooled 20kw/25kva diesel generator set
2. 50Hz.1500rpm/ac400V/230V, 3 phase 4 wires.
3. With permanent magnet generator alternator.
4. Deepsea or Smartgen controller.
Technical Parameter
| Model | GF25WM | |
| Genset | Prime Power (KW) | 20KW |
| Standby Power (KW) | 18KW | |
| Rated. Capacity (KVA) | 25KVA | |
| Rated Power Factor | COSΦ=0.8 (Lagging) | |
| Rated Voltage (V) | 400,230 | |
| Rated Current (A) | 28.8A | |
| Rated Frequency (Hz) | 50Hz | |
| Rated RPM | 1500 RPM | |
| Start | Hand start | |
| Diesel | 0# light diesel | |
| Dimensions (L x W x H) | 1700×760×1320mm | |
| Steady state voltage regulation (100%) | ≤±1 | |
| Voltage fluctuation rate (100%) | ≤±0.5 | |
| Transient voltage regulation rating | +20~-15 | |
| Voltage stability time (S) | ≤1 | |
| Steady state frequency regulation (100%) | ≤±1 | |
| Frequency fluctuation rate (100%) | +10~-7 | |
| Frequency stability time (S) | ≤3 | |
| Fuel Consumption (100% load) | 231g/kW·h | |
| Noise Level (LP7m) | 98dB(A) | |
| Dimensions (L x W x H) | 1500×650×800mm | |
| Weight (KG) | 500kg | |
| Engine | Brand | WEICHAI diesel engine |
| Model | WP2.1D18E2 | |
| Cylinder | 4 cylinders | |
| Bore x Stroke (mm) | 90× 100 mm | |
| Compression Ratio | Ratio: 19:1 | |
| Start Type | DC12V electric start | |
| Cooled Type | Water cooled | |
| Type | Direct Injection | |
| Speed regulation Type | mechanical speed governors | |
| Air Intake Syatem | natural aspiration | |
| Overload Capacity | About 110% | |
| RPM | 1500RPM | |
| Generator | Brand | Chongqing Zhiren Electric |
| Model | 15T/M4 | |
| Excitation Sytem | Rare-earth Permanent magnet | |
| Rated Power (KW) | 15KW | |
| Rated Voltage (V) | 400V/230V | |
| Insulation Grade | H | |
| IP | IP23 | |
| Wiring Connection Type | 3-phase 4 wires, Y-shaped wiring (also called: Star connection/Yconnection) | |
| Frequency (Hz) | 50Hz | |
| Rated Power Factor | COSΦ=0.8 (Lagging) | |
Are you a factory or a trading company?
We are a professional and leading manufacturer.
Where are you company located in?
Our company is located in Jinfeng Electronic Industry Park, Jiulongpo District, Chongqing City, adjoins Chongqing Xiyong Bonded Zone.
What products are you produce?
We specialize in gasoline generator, gasoline generator, silent generator, movable generator, welder and related products.
What’s your annual capacity?
About 250,000 units.
What’s the MOQ?
Generally speaking, MOQ is 10 sets; we advise you to purchase 1*20GP or 1*40HQ.
What’s the delivery time?
About 21 days. It’s up to the quantities you buy.
