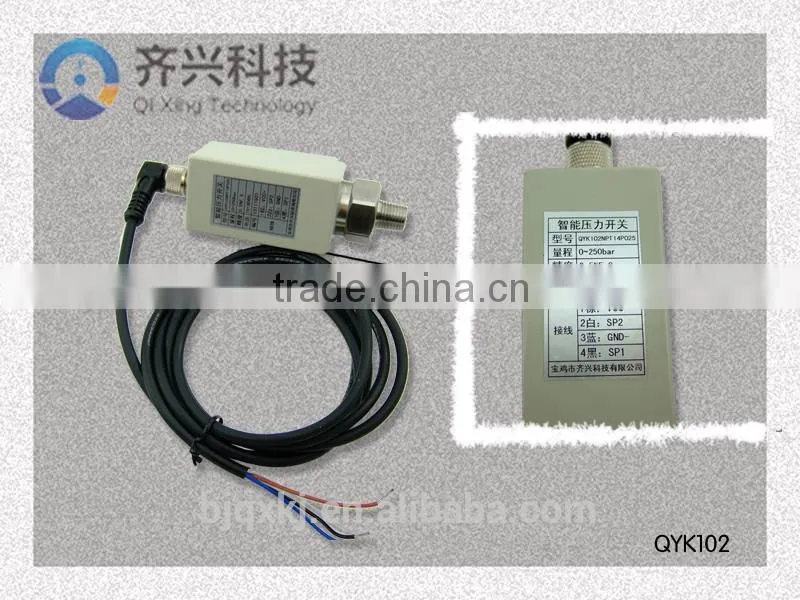

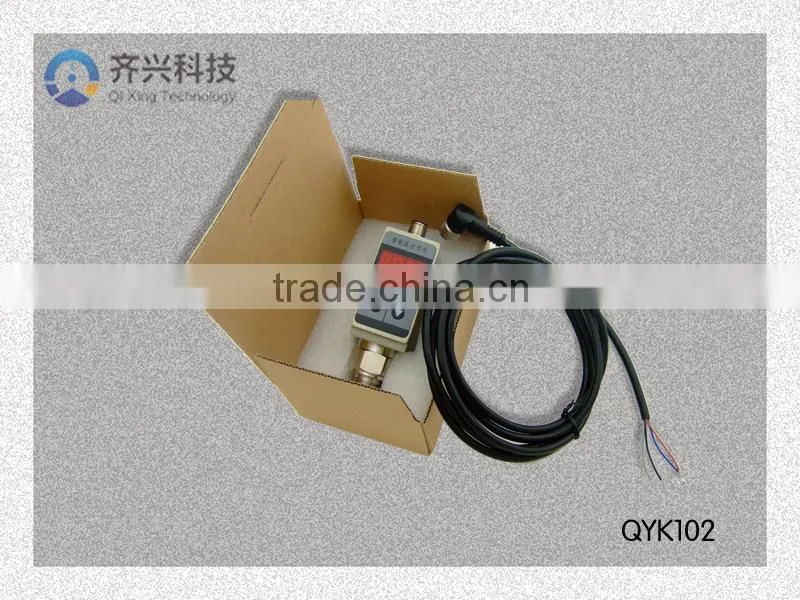

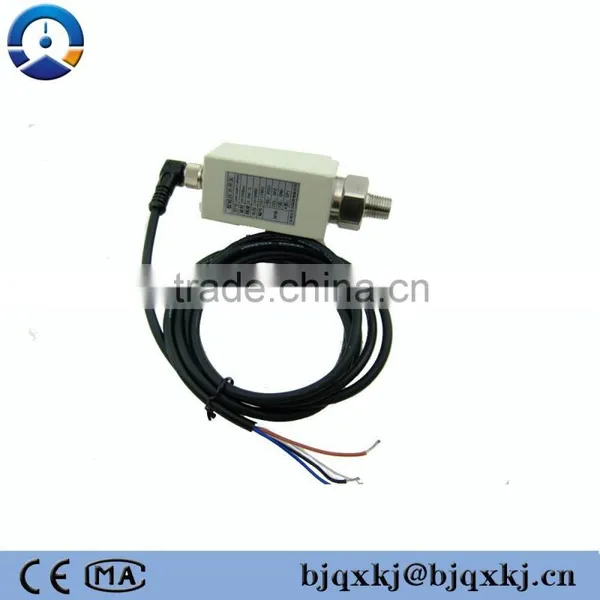

Digital Pressure Switch, 24V control switch,4 digit LED air switch
Current pressure will be displayed with 4 digits
The preset pressure switch point and delay can switch output
Switch quantity can be set between zero to full scale arbitrarily
Lighting diode on the outer covering enable an easy observation
The key adjustment and setting of various parameters can be in the field, easy operation
2 way switch output, load capacity of 1.2A
Analog signal output(4~20mA)
Control Range |
-0.1~0~100Mpa |
Control Accuracy |
≤±0.5%FS |
Stability |
≤0.2% /year |
Display Accuracy |
±0.1%FS |
Display |
4 digit tube |
Display range |
-1999~9999 |
Power Supply |
24V±20% |
Max. Consumption |
< 1W |
Load Capacity |
<24V1.2A |
Switch Type |
PNP |
Response time |
<4ms |
Life Span |
>1million |
Protection Class |
IP65 |
Medium Temperature |
-20~80℃ |
1. 4 digital figures display current pressure values.
2. Pressure preset switching points and delay switch output.
3. The switch can be set into any figures from zero to full values.
4. The shell is provided with joint action light-emitting diode, convenient for observation.
5. The key can adjust and set various parameters conveniently.
6. Two-way switch output, 1.2A loading capacity.
7.analog output is 4~20mA.
We are the original manufacturer, customization acceptable,share us with your requirements.
MOQ |
1 piece |
Warranty |
12 months |
Payment |
T/T |
Customized |
Acceptable |
Delivery time |
Within 3days after got your payment or up to your order |
Discount |
Large qty,enjoy a big discount |
Promotion |
Every month |
Inspection |
100% serious inspection procedure |
Sample |
pay for the samples at first, then return the cost when you release bulk order |
Courier |
DHL, TNT, UPS, EMS etc or your own courier |
After-sales |
Perfect after-sales Service |
Skype |
zhang.sunny30 |
