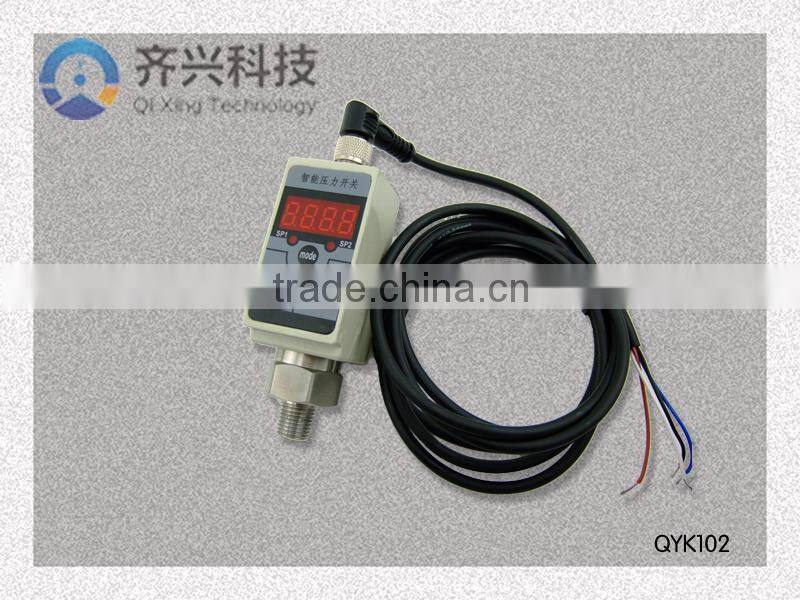

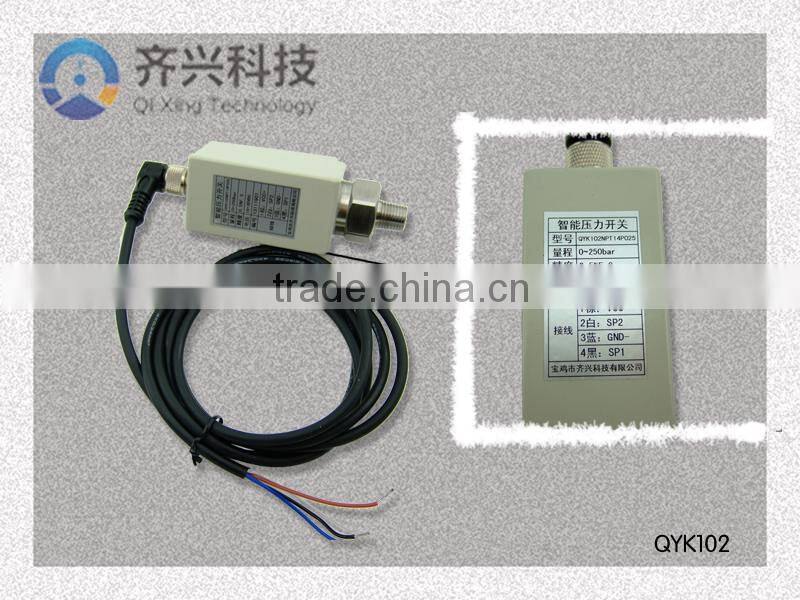

QYK102 Series Intelligent Pressure Switch
It integrates functions of measuring, display, output and control all in one.
It has a complete electronic structure.
With flexible application, simple handling, easy debugging and high reliability,
this product is widely employed to test & control the pressure of fluid medium
in many industries including areas of hydroelectricity, city water, oil, chemical,
machinery, hydraulic system etc.
| Control range | -0.1~0~100Mpa | Control accuracy | Less than ± 0.5%FS |
| Stability | Less than 0.1% / year | Display accuracy | ± 0.1%FS |
| Display mode | 0.56" digital tube | Display range | -1999--9999 |
| Power supply | 24V±20% | Power consumption | Less than 1W |
| Load capability | Less than24V1.2A | Switch type | PNP,NPN |
| Mounting thread | M20*1.5 | Material | SST |
| Respond time | Less than 4ms | Life | More than 100million times |
| Protection grade | IP65 | Medium temperature | -20~80°C |
| Connecting thread | M20 | Electric connections | A |
1. 4 digital figures display current pressure values.
2. Pressure preset switching points and delay switch output.
3. The switch can be set into any figures from zero to full values.
4. The shell is provided with joint action light-emitting diode, convenient for observation.
5. The key can adjust and set various parameters conveniently.
6. Two-way switch output, 1.2A loading capacity.
7.analog output is 4~20mA.
