Temperature Sensor Pcb With LED Indicator, PT100 Temperature Module for Temperature Transmitter

Baoji Qi Xing Technology Co., Ltd.

US$ 10 - 30 MOQ: 10 Pieces

Key Specifications

Place of Origin:

China

Brand Name:

Model Number:

BT-5/9

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin China

Brand Name QX

Model Number BT-5/9

Usage Industrial

Theory Temperature Transmitter

Accuracy 0.1%FS(Calibration basic range)

Temperature Range -200℃~850℃

temperature sensor pcb with LED indicator, PT100 temperature module for temperature transmitter

Product Description

BT-5 intelligent4~20mA(2-wire)working,Anti interference, non-destructive remote signal.

BT-9 RS485-Modbus Data bus working type,standard 3-wire PT100 connection.

Special custom ASSIC circuit, high integration, better reliability.

Full digital calibration, no movable potentiometer, lower temperature drift to<20ppm.

Anti interference design of reinforced EMC,

suitable for various of bad electromagnetism environment.

PT100 calibration of pure numerical calculations, high precision.

Intelligent USB/ single line calibration interface, integration of LED display interface.

connection:

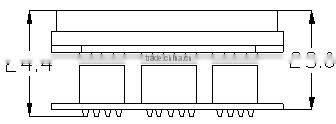

dimension:

specifications:

Model	BT-5	BT-9
Power supply	10~36VDC,standard 24VDC	8~36 VDC,recommend 24VDC
Output signal	4~20mA(2-Wire),current resolution about 1.6u	RS485-Modbus
Measure range	-200℃~850℃,min50℃
Temperature drift Coefficient	<20ppm/℃or 0.004%FS/1℃(basic range)
environment	Temperature; -40℃~85℃,Humidity<85%, dry & no corrosion environment
Dimension	54mm*23mm
Precision	0.1%FS(Calibration basic range)

FAQ

MOQ	1 piece
Warranty	12 months
Payment	T/T
Customized	Acceptable
Delivery time	Within 3days after got your payment or up to your order
Discount	Large qty,enjoy a big discount
Promotion	Every month
Inspection	100% serious inspection procedure
Sample	pay for the samples at first, then return the cost when you release bulk order
Courier	DHL, TNT, UPS, EMS etc or your own courier
After-sales	Perfect after-sales Service
