Home > Products > DC Generator > 48V 10KVA/8KW DC Genset

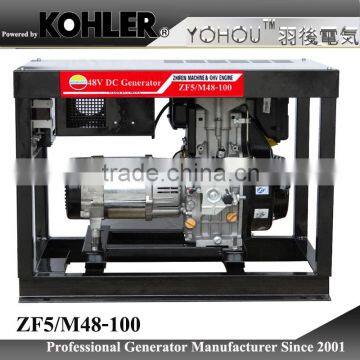

48V 10KVA/8KW DC Genset
USD $7,599 - $7,999
/ Set
1 Set(Min.Order)
- 3000 Set / Sets per Month
- Chongqing
- T/T
You May Like
Product Details
Place of Origin: | Chongqing, China | Brand Name: | YOHOU | Model Number: | YH10000M48-150 |
Output Type: | DC | Speed: | 3600 | Frequency: | 60HZ |
Rated Power: | 8kw/10KVA | Rated Current: | 200A |
Product Description
48V 10KVA/8KW DC Genset
Description
Power Rang: 5kw/6kw/8kw/10kw/12kw
Voltage: 48V
Current: 100A/150A/200A
Alternator: 48V DC PMA /PERMANENT MAGNET GENERATOR ALTERNATOR
Engine: KOHLER/HONDA/Briggs & Stratton
Application: 48V 10KVA/8KW DC Genset for Telecom
Technical Parameter
Model | YH10000MD48-150 | |
Generator alternator | DC Output Voltage | 48V (40V-59Vcontinuous adjustable) |
24V (20V-30Vcontinuous adjustable) | ||
DC output Curret | 150A | |
DC Output Power | 8.6KW/3600RPM | |
Engine | Brand | KOHLER |
Type | double cylinder, air cooled, 4 strokes | |
Displacement (CC) | 720CC | |
Continuous Rated Power | 10.0KW/3600RPM | |
Start Type | Electric start | |
Lubricate Oil Type | SAE20 (10-20℃ Spring/Autum) | |
Lubricate Oil Capacity | 2L | |
Fuel Type | Diesel 0# (Summer)/-20# (Winter) | |
Fuel Consumption(g/kw.hr) | ≤370 | |
Environment | Atmospheric pressure | 70kPa~106kPa |
Work Temperature | -20℃~+60℃ | |
Storage Temperature | -40℃~+70℃ | |
Protection | Protection Functions | battery reverse connection protection, |
timing shutdown protection, | ||
grid supply auto-shutdown protection | ||
engine preheating protection; | ||
engine lubricating oil level alarm protection, | ||
over-voltage protection, | ||
over-current protection, | ||
limit-current protection, | ||
short-circuit protection, | ||
module over-heating protection | ||
Start Conditions | Stationary AUTO Type | Grid Power Unavailable |
Stationary AUTO Type | Lower than 48V Batteries Lower Limit Voltage | |
Shutdown Condition | Stationary AUTO Type | Grid Power available |
Stationary AUTO Type | batteries voltage value higher than upper limit voltage value, batteries charging current, Timing shutdown | |
Fuel Tank Capacity (L) | 25L | |
Gneset | Continuous work time | 24 Hours |
Noise level [non-load~full-load[dB(A)/7M] | 82~90 | |
Dimensions(L×W×H) (mm) | 1100×700×720 | |
Weight(net weight)KGS | ≤180kg |
