Help CenterSkull Decal Welding Helmet
Related Products
Finished Product

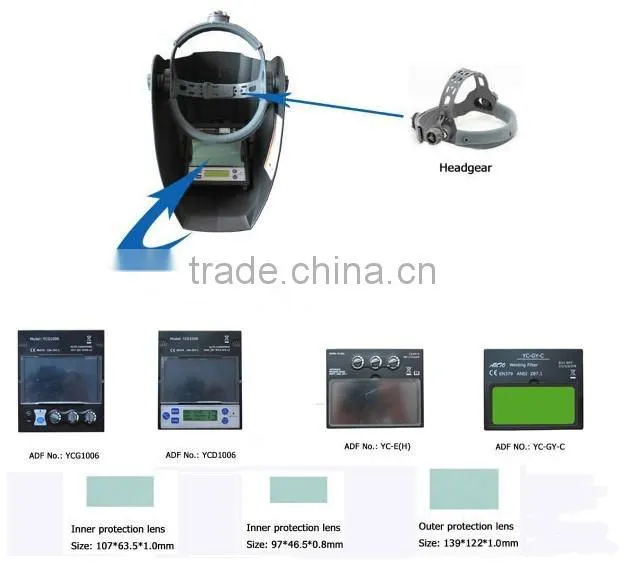

Detailed Images
ADF Technical Data
| Specification | YCG1006 | YCD1006 | YC-E(L) | YC-GY-C |
| Viewing Area | 100*60mm | 100*60mm | 92*42mm/98*48mm | 92*42mm |
| Size of Cassette | 136*115*10mm | 136*115*10mm | 110*90*9mm | 110*90*9mm |
| Light Shade | DIN 4 | DIN 4 | DIN 4 | DIN 3 |
| Dark Shade | DIN 9-13 | DIN 5-8/9-13 | DIN 9-13 | DIN 11 |
| Switching Time | 1/25000s | 1/25000s | 1/10000s | 3/10000s |
| Sensitivity | YES,stepless adjustment | YES,9 levels | YES,stepless adjustment | / |
| Delay time | 0.1-0.9s | 0.1-0.9s,9 levels | 0.1-0.9s | 0.3s |
| UV/IR Protection | > DIN15 | > DIN15 | > DIN15 | > DIN15 |
| Power Supply | Solar Cell & Lithium Battery | Solar Cell & Lithium Battery | Solar Cell & Lithium Battery | Solar Cell & Lithium Battery |
| Arc Sensor | 4 PCS | 4 PCS | 2 PCS | 2 PCS |
| Operating Temperature | -5℃~+55℃ | -5℃~+55℃ | -5℃~+55℃ | -5℃~+55℃ |
| Storing Temperature | -20℃~+70℃ | -20℃~+70℃ | -20℃~+70℃ | -20℃~+70℃ |
| Grind Mode | YES | WELD/GRIND/CUT | YES,optional | WELD |
| Battery Replaceable | YES | YES | YES,optional | YES,optional |
| Low Battery Alarm | YES | YES | / | / |
| Self-test | YES | / | / | / |
| Cetificate | ANSI | CE,ANSI | CE | CE,ANSI |
Certificate
Packing
Inspection Equipment
Related Product

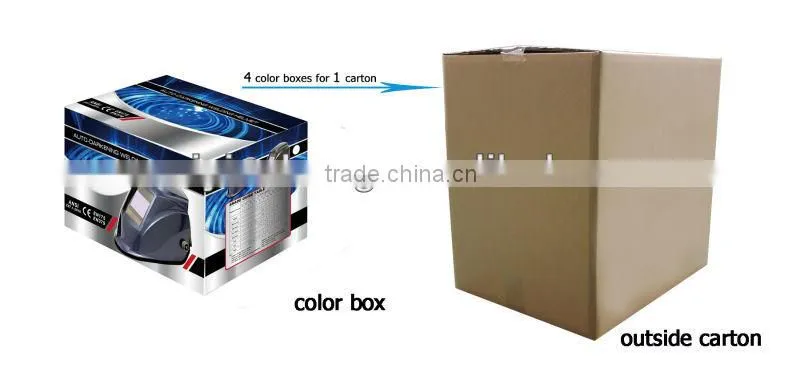

Packing Information
a. each helmet is packed in one color box
b. color box size: 298*245*250mm
c. four color boxes packed in one carton
d. carton size: 50*31*51cm
e. N.W./G.W.: 1.9/4.5KGS
Sample Policy
a. sample time: 5-10days
b. sample cost: USD50.00 for each one
c. cost refundable: when you confirm the order, we will return the sample cost to you
Terms of Payment
TT, LC, Western Union acceptable
a. 30% as deposit and balance against the sight of copy B/L
b. FOB Shanghai, CIF destination
