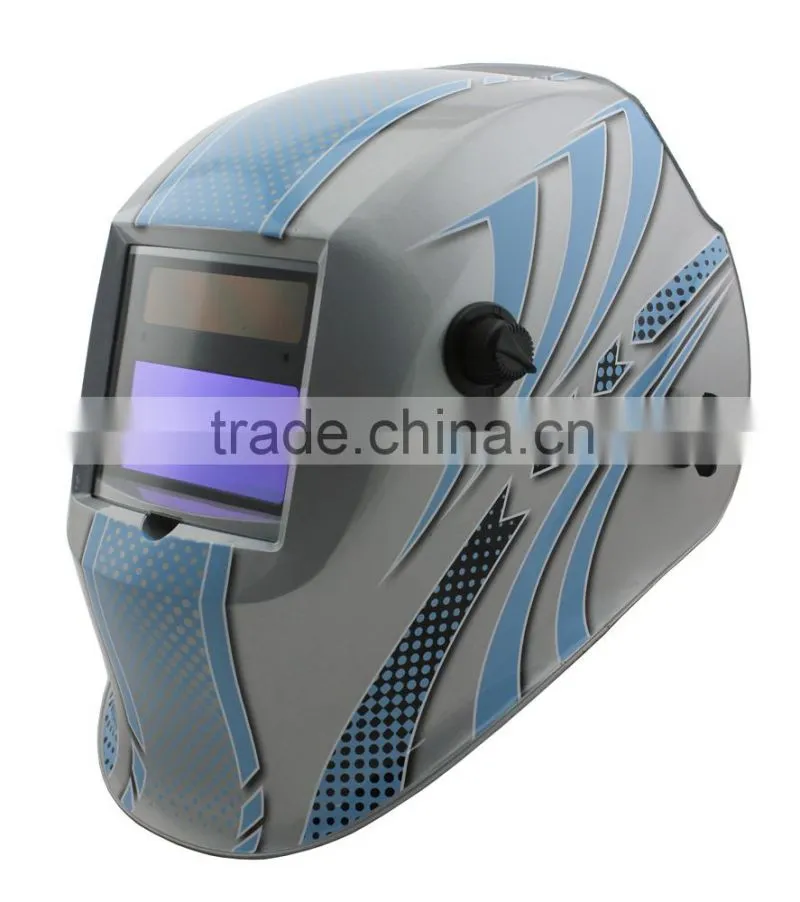

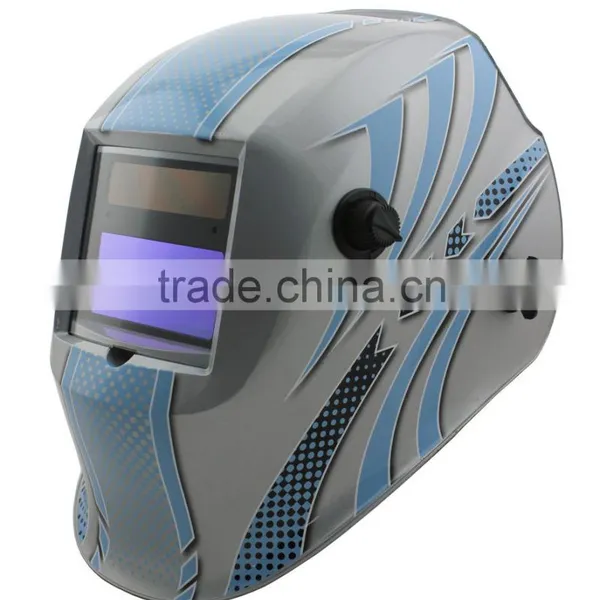

CSA Approved Auto-darkening Welding Helmet YC-05
Negotiable
MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Yin Cheng
Model Number:
YC-05
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Jiangsu, China
Brand Name
Yin Cheng
Model Number
YC-05
Auto-Darkening
Yes
Switch Time
1/10000s
View Area
92*42mm,98*48,98*62mm
Solar Powered
Yes
Cartridge Size
110*90*9mm
Sensitivity
Stepless Adjustment
Power Supply
Solar cell +Lithium battery
Helmet Material
Nylon
Finihsed Product
Other Color
Detailed Images
ADF Technical Data
| Specification | YC-GY-B | YC-BS | YC-E(L) | YC-ES |
| Viewing Area | 92*42mm | 92*42mm | 92*42mm/98*48mm | 92*42mm |
| Size of Cassette | 110*90*9mm | 110*90*9mm | 110*90*9mm | 110*90*9mm |
| Light Shade | DIN 4 | DIN 4 | DIN 4 | DIN 4 |
| Dark Shade | DIN 9-13 | DIN 9-13 | DIN 9-13 | DIN 9-13 |
| Switching Time | 1/10000s | 1/10000s | 1/10000s | 1/10000s |
| Sensitivity | YES,stepless adjustment | YES,stepless adjustment | YES,stepless adjustment | YES,stepless adjustment |
| Delay time | 0.3s | 0.3s | 0.1-0.9s | 0.1-0.9s |
| UV/IR Protection | > DIN 15 | > DIN 15 | > DIN 15 | > DIN 15 |
| Power Supply | Solar Cell & Lithium Battery | Solar Cell & Lithium Battery | Solar Cell & Lithium Battery | Solar Cell & Lithium Battery |
| Arc Sensor | 2PCS | 2PCS | 2PCS | 2PCS |
| Operating Temperature | -5℃~+55℃ | -5℃~+55℃ | -5℃~+55℃ | -5℃~+55℃ |
| Storing Temperature | -20℃~+70℃ | -20℃~+70℃ | -20℃~+70℃ | -20℃~+70℃ |
| Grind Mode | YES,optional | YES,optional | YES,optional | YES,optional |
| Battery Replaceable | YES,optional | YES | YES,optional | YES |
| Low Battery Alarm | / | YES | / | YES |
| Self-test | / | YES | / | YES |
| Cetificate | CE | CE,ANSI,CSA | CE,ANSI | CE,ANSI,CSA,AS/NZS |
Packing

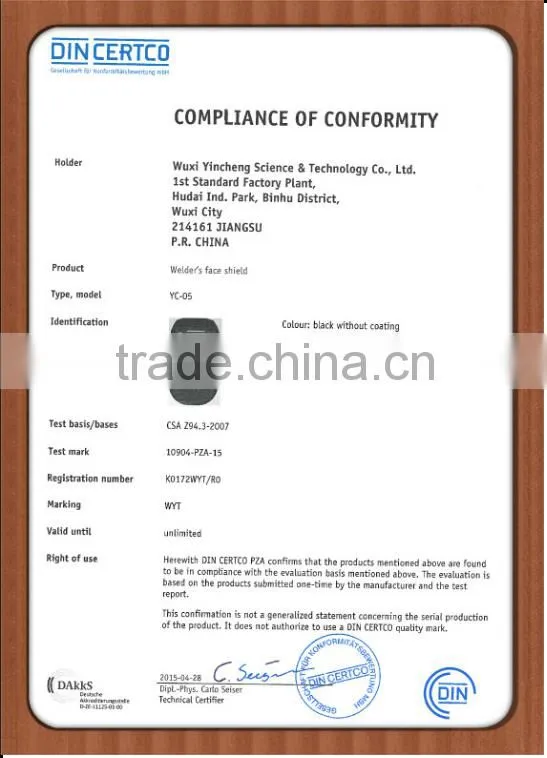

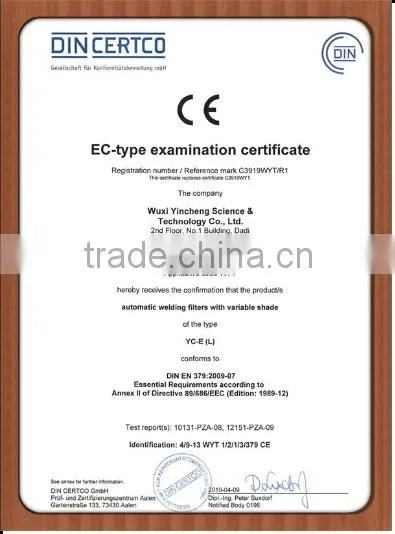

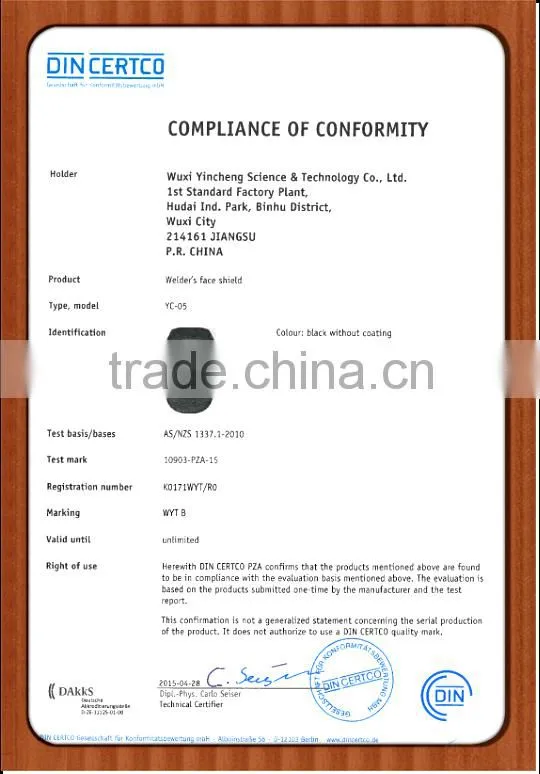

Certificate
Inspection equipment
Related Product
Packing Information
a. each helmet is packed in one color box
b. color box size: 298*245*250mm
c. four color boxes packed in one carton
d. carton size: 50*31*51cm
e. N.W./G.W.: 2.1/5.2KGS
Sample Policy
a. sample time: 5-10days
b. sample cost: USD50.00 for each one
c. cost refundable: when you confirm the order, we will return the sample cost to you
Terms of Payment
TT, LC, Western Union acceptable
a. 30% as deposit and balance against the sight of copy B/L
b. FOB Shanghai, CIF destination
