Sidewall Rubber Conveyor Belt Elevator Conveyor Belt Cleated conveyor belt

Specifications

1.Cleated conveyor belt
2.Good quality
3.Best price
4.Sample free
5.Min 100 meters

Sidewall Rubber Conveyor Belt Elevator Conveyor Belt Cleated conveyor belt



Specification:

It is suitable for conveyor mealiness, graininess, small piece materiel, aslo conveyor materiel in bag . The slope angle less than 45°prevent materiel down slope, improve conveying capability.

Feature:



1. Belt width: 300mm-1600mm;

2.Cleatwidth:203mm/224mm/320mm/380mm/395mm/500mm/550mm/600mm/680mm/740/mm750mm/1000mm/1400mm/1490mm;

3. Cleat height: 4mm/6mm/8mm/10mm/12mm/15mm/25mm/35mm



Characteristics:

1. Patterned conveyor belt is composed of belt carcass and pattern cover. Pattern shape and height(depth) can be different because of different conveying materials and gradient of the conveyor.

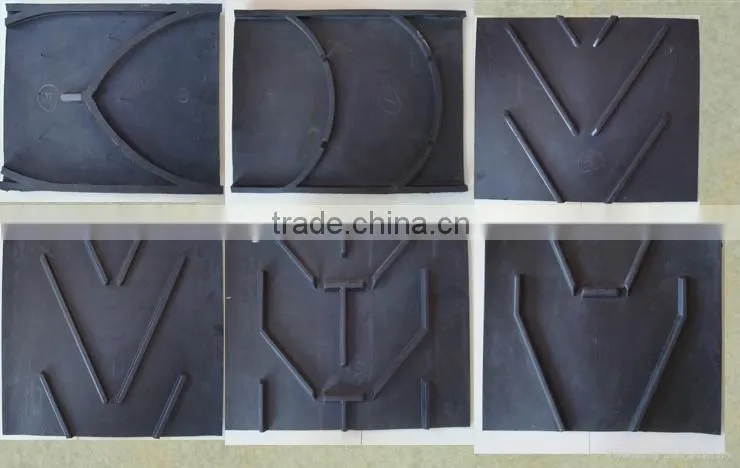

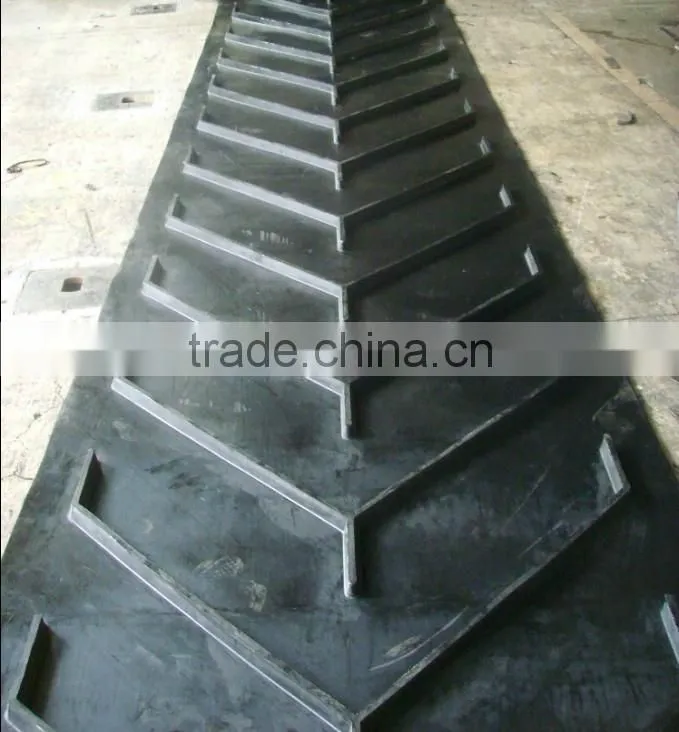

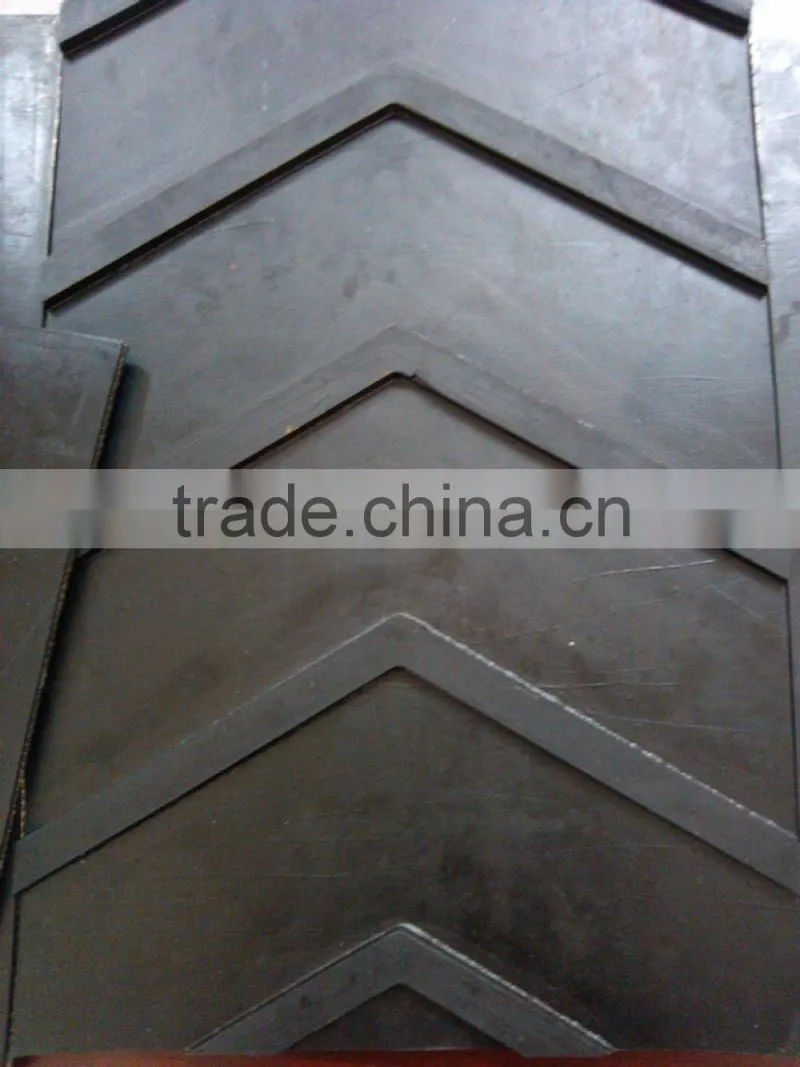

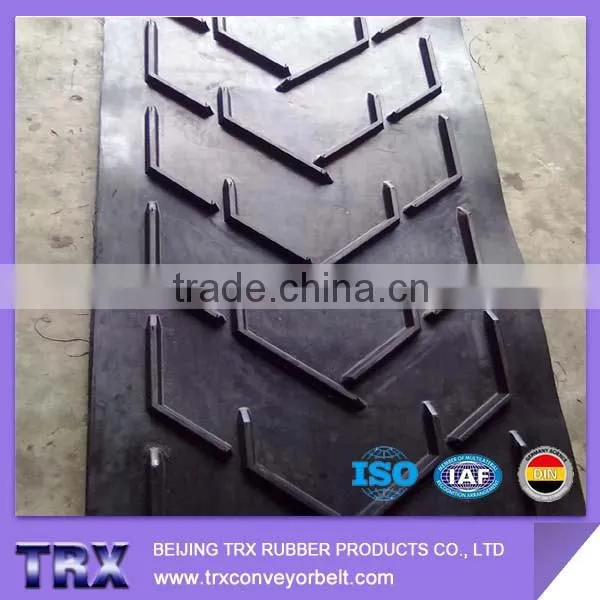

2. On surface of the belt, there is cheveron pattern higher than the belt body, the pattern may be either open-end or closed. Each kind of pattern includes three types: high, medium and low.

Uses:

Conveying packaged, powdered, granulated and small lump material at a gradient of equal or less than 40°





Basic construction of rubber sidewall conveyor belt

Product Name	Rubber Sidewall Conveyor Belt
Structure	Top cover rubber,Bottom cover rubber,Reinforced core,Cross rigid
Thickness of top cover rubber	3-6mm
Thickness of bottom cover rubber	1.5-4.5mm
Belt Core	Cotton, Nylon, EP etc.
No. of Farbic Plies	2-10 plies
Belt Width	300-1600mm
Cleat type	T, TS, C , TC and TCS
MOQ	50m, can be negotiable
Sample	Available



Technical data for your reference



Base Belt	Sidewall	Cleat	BF	BR	Belt Width
Width B (mm)	Height H(mm)	Height H1(mm)	mm	mm	mm
300	40	35	25	180	35
	60	55	50	120	40
	80	75
400	60	55	50	180	60
	80	75
	100	90
500	80	75	50	250	75
	100	90
	120	110
650	100	90	50	350	100
	120	110
	160	140	75	300
800	120	110	50	460	120
	160	140	75	410
	200	180
1000	60	140	75	550	150
	200	280
	240	220
1200	160	140	75	690	180
	200	180
	240	220
	300	280	105	630
1400	200	180	75	830	210
	240	220
	300	280	105	770
	400	360
1600	200	180	75/105	970	240
	240	220
	300	280	75	910
	400	360
