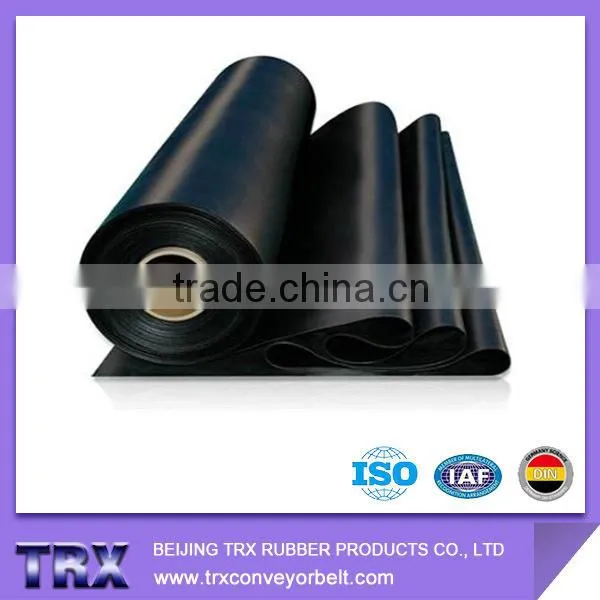

Wear-Resistant Rubber Sheet
USD $5 - $100
/ Meter
100 Meters(Min.Order)
- 100000 Meter / Meters per Month
- Tianjin Port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | TRX | |
| Model Number | TRXRS01 |
Product Description
Specifications
Our facrory produces a wide range of technical rubber sheets which are available in different types, dimension and hardness.Rubber Sheet
Our factory produces a wide range of technical rubber sheets which are available in different types, dimension and hardness.
>both sides smooth
>one or both sides with textile pattern (fabric impression or fine grip)
>without plies - width from 1000 mm to 1600 mm
>with plies - width 1300 mm (cotton ply) or to 1600 mm (EP ply)
>thickness of rubber sheets from 0,5 mm to 40 mm
>abrasion resistant rubber sheets are available with or without CR layer
Application:
>conveyor belts cleaners
>drum lagging
>mechanical protection from impacts
>protection from heat, vibrations, noise and humidity
>electric insulation and antistatic protection
TYPE OF RUBBER SHEETS
| TYPE | ELASTOMER | PROPERTIES | PRODUCT - APPLICATION |
| A | NR - natural rubber | • good elasticity and flexibiliy • high physical and mechanical values • resistant to diluted acids and bases • weaker temperature resistance • not resistant to gasoline and oils P40 | P40 orange red: food quality (FDA), B.f.R.,XXI, kat. II,/ 1.4.2006 A35 black: antidust quality A40 red or grey: non staining, washers A65 black: non staining, abrasion-resistant (max 120 mm3 ), smooth or fabric impression pattern |
| B | SBR - styrene butadiene rubber | • quite good temperature resistance • good mechanical values • resistant to diluted acids and bases • not resistant to gasoline and oils | B60-Y-W-WL black: abrasion-resistant rubber B67 black: antistatic quality (max. 5000 Ω) B70 grey: electric-insulation, 35kV and 50 kV |
| C | NBR - acrylonitrile rubber | • good mechanical characteristics • resistant to vegetable and mineral oils • resistant to gasoline with not more than 30% of aromats • low elasticity • weaker ozone existence | C55 black: medium oil and grease resistant quality C60 blue: medium oil and grease resistant + food quality (FDA) C70 black: oil and grease resistant quality |
| Cl IIR | IIR - butyl, CI IIR - cyclobutyl rubber | • good temperature resistance • good ozone existence • resistant to polar solution • resistant to acids and bases • not resistant to gasoline and oils | Cl IIR45 black: resistant to acid and heat |
| D or CR | CR - chloroprene rubber | • high physical and mechanical values • good ozone existence • resistant to aliphat oils • not resistant to gasoline | CR layer for very good adhesion properties (drum lagging or other technical rubber sheets) |
| E | EPDM - ethylene propylene rubber | • good temperature resistance • good ozone existence • resistant to polar solution | E60 black: ozone and heat resistant with or whithout EP ply |
