jail fence wireRazor thickness:0.5mm-0.6mm.
Wire diameter:2.5mm.
Razor length:12mm-21mm.

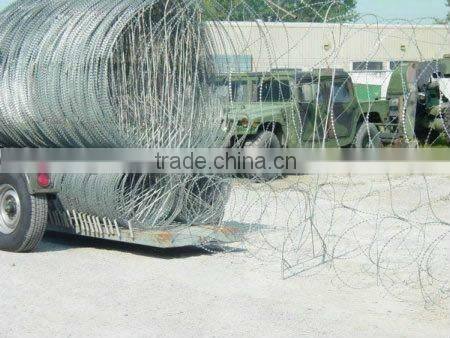

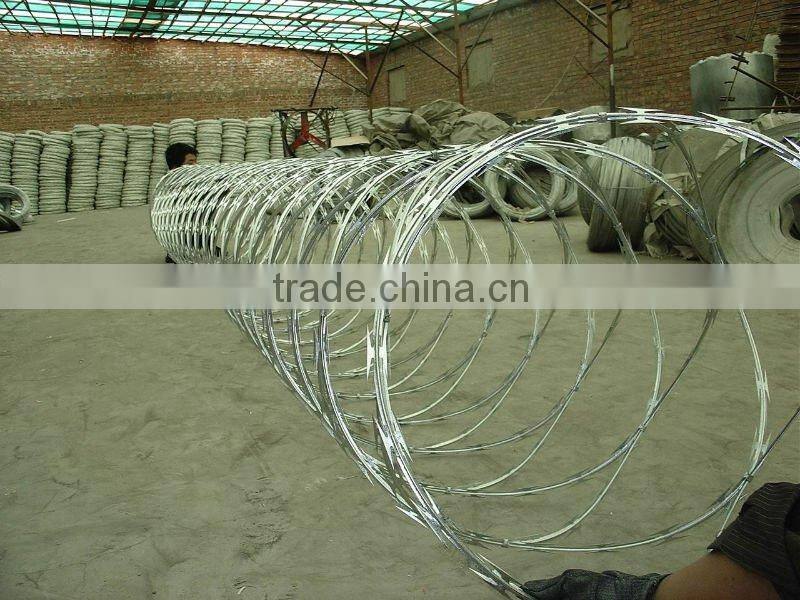

jail fence wire
jail fence wire is a kind of modern security fencing materials fabricated with razor-sharp steel blade and high-tensile wire. Crossed razor barbed wire can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders, with piecing and cutting razor blades mounted at the top of the wall, also the special designs making climbing and touching extremely difficult. The wire and strip are galvanized to prevent corrosion.
barbed tape
1. Materials: Galvanized steel sheet and wire or stainless steel sheet and wire.
2. Uses: Be used as security window and fence, cross type razor barbed wire, be set up on top of solid walls. There are many ways to use razor barbed wire. It can be widely used in industry, agriculture and especially in military security.

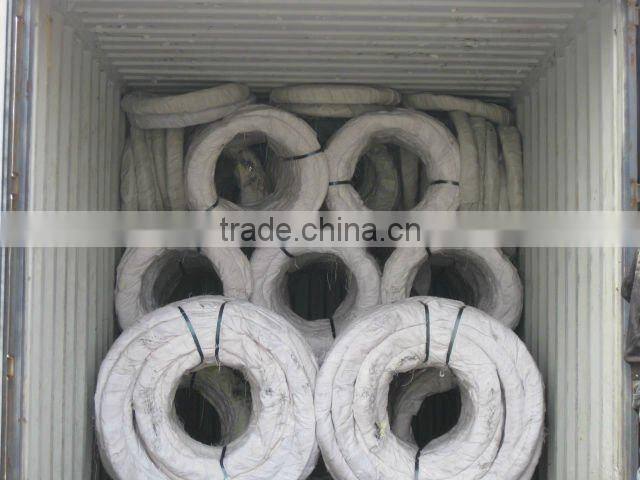

3. Packing terms: Compression packing, woven bag packing.
4. Razor thickness: 0.5mm-0.6mm.
5. Wire diameter: 2.5mm.
6. Razor length: 12mm-21mm.
7. Razor width: 13mm-21mm.
8. Barb spacing: 26mm-100mm.
9. Outside diameter: 450mm-960mm.
10. Number of loops: 33mm-102mm.
11. Standard length per coil: 8m-16m.
12. Razor barbed types: Single coil and cross type.
| Razor Blade Specification | ||||||
| Razor Specification | Blade Style | Razor Thickness(mm) | Wire diameter(mm) | Barb Length(mm) | Barb Width(mm) | Barb Spacing(mm) |
| BTO-10 | 0.5± 0.05 | 2.5± 0.1 | 10± 1 | 13± 1 | 25± 1 | |
| BTO-12 | 0.5± 0.05 | 2.5± 0.1 | 12± 1 | 15± 1 | 25± 1 | |
| BTO-18 | 0.5± 0.05 | 2.5± 0.1 | 18± 1 | 15± 1 | 35± 1 | |
| BTO-22 | 0.5± 0.05 | 2.5± 0.1 | 22± 1 | 15± 1 | 36± 1 | |
| BTO-28 | 0.5± 0.05 | 2.5 | 28 | 15 | 46± 1 | |
| BTO-30 | 0.5± 0.05 | 2.5 | 30 | 18 | 46± 1 | |
| CBT-65 | 0.6± 0.05 | 2.5± 0.1 | 65± 2 | 21± 1 | 101± 2 | |
| Barbed Tape Wire Specification | |||||
| Outside Diameter(mm) | NO. Of Loops | Standard Length per Coil(M) | Types | Notes | |
| 450 | 33 | 8 | GBT-65 | Single coil | |
| 500 | 41 | 10 | GBT-65 | Single coil | |
| 700 | 41 | 10 | GBT-65 | Single coil | |
| 960 | 53 | 13 | GBT-65 | Single coil | |
| 500 | 102 | 16 | BTO-10.15.22 | Cross type | |
| 600 | 86 | 14 | BTO-10.15.22 | Cross type | |
| 700 | 72 | 12 | BTO-10.15.22 | Cross type | |
| 800 | 64 | 10 | BTO-10.15.22 | Cross type | |
| 960 | 52 | 9 | BTO-10.15.22 | Cross type | |

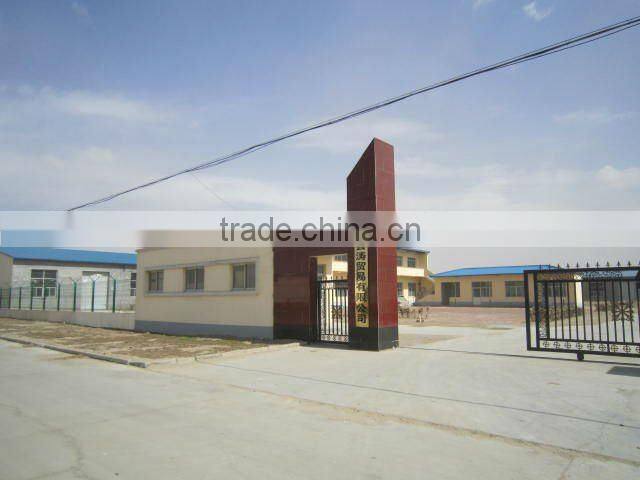

YUNTAO company welcome you to visit our factory.
