Help CenterBarbed Wire Roller
Related Products
Specifications
barbed wire roller1.Hot dipped Galvanized or Stainless steel
2.BTO-22,CBT-65,BTO-12
3.Hight Tencile Strength
Product |
barbed wire roller |
|
Material |
medium-carbon steel wire, rolling galvanized sheet.It is divided into linear, crossover, linear coiling,cross coiling and cross. |
|
Feature |
Strong protection ability and good ability of threats, convenient installation,long service life |
Gauge |
2.5mm |
Finish |
Electro galvanized, Hot dipped galvanized, PVC coated |
|
Application |
Used for boundary segregation,military facilities,prisons,villas, military bases,the safety facilities such important state protection |
Note |
lengh,diameter can be made according to customer requirements. |
razor barbed wire specification
Reference Number |
Thickness |
Wire Dia |
Barb |
Barb |
Barb |
BTO-10 |
0.5±0.05 |
2.5±0.1 |
10±1 |
13±1 |
25±1 |
BTO-12 |
0.5±0.05 |
2.5±0.1 |
12±1 |
15±1 |
25±1 |
BTO-18 |
0.5±0.05 |
2.5±0.1 |
18±1 |
15±1 |
35±1 |
BTO-22 |
0.5±0.05 |
2.5±0.1 |
22±1 |
15±1 |
36±1 |
BTO-28 |
0.5±0.05 |
2.5 |
28 |
15 |
46±1 |
BTO-30 |
0.5±0.05 |
2.5 |
30 |
18 |
46±1 |
CBT-65 |
0.6±0.05 |
2.5±0.1 |
65±2 |
21±1 |
101±2 |
Outside Diameter |
No. of Loops |
Standard Length per Coil |
Type |
Notes |
450mm |
33 |
8M |
CBT-65 |
Single coil |
500mm |
41 |
10M |
CBT-65 |
Single coil |
700mm |
41 |
10M |
CBT-65 |
Single coil |
960mm |
53 |
13M |
CBT-65 |
Single coil |
500mm |
102 |
16M |
BTO-10.15.22 |
Cross type |
600mm |
86 |
14M |
BTO-10.15.22 |
Cross type |
700mm |
72 |
12M |
BTO-10.15.22 |
Cross type |
800mm |
64 |
10M |
BTO-10.15.22 |
Cross type |
960mm |
52 |
9M |
BTO-10.15.22 |
Cross type |

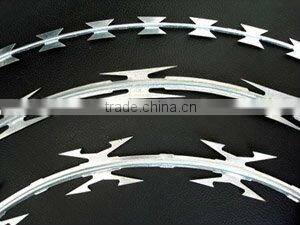

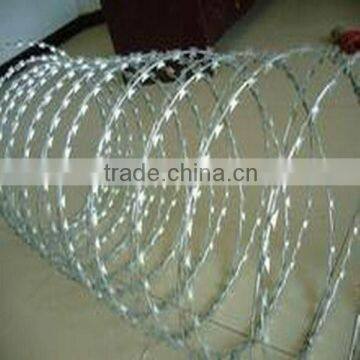

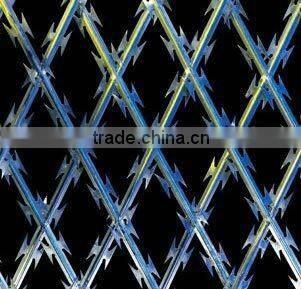

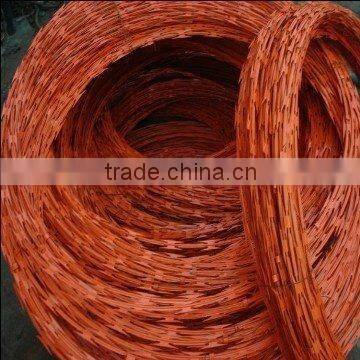

Products Pictures Show for reference:
