Silk printing screen Polyester wire mesh ISO9001

Specifications

Polyester wire mesh:
Flat surface, not easily cracked
Good air permeability
Stable property against heat and moist

Flat surface, not easily cracked
Good air permeability
Stable property against heat and moisture
Low thermal shrinking
Less elongation at heat
Long lifespan



Application of Our Polyester Mesh Products

Polyester Spiral Desiccation Mesh is widely used in producing of paper, corrugated paper, paper for train fare, also used in filtration and sieving in environmental protection, pharmaceutical, mine, metallurgy, machinery, airspace and other fields.



Major Use:

Producing of paper, corrugated paper, paper for train fare.
Filtration and separation of air, liquid and solid in various fields.



Types of spiral fabric	Thread Diameter (mm)		The specification of single	Weight(kg/m2)	Thickness(mm)	Air permeability(m³/m²h)
	warp	weft
Large loop	0.9	1.1	LW4.0×8.0mm	1.7	3	20000±500
Medium loop	0.7	0.9	LW3.8×6.8mm	1.4	2.5	18500±500
Small loop	0.5	0.7	LW3.2×5.2mm	1.1	1.9	15000±500

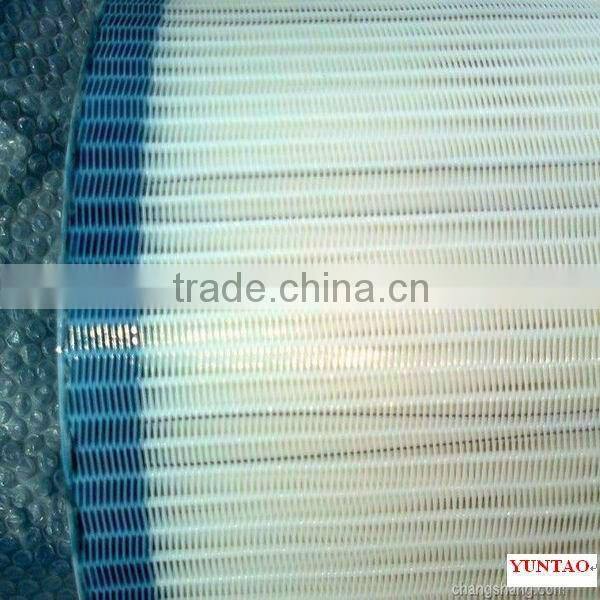

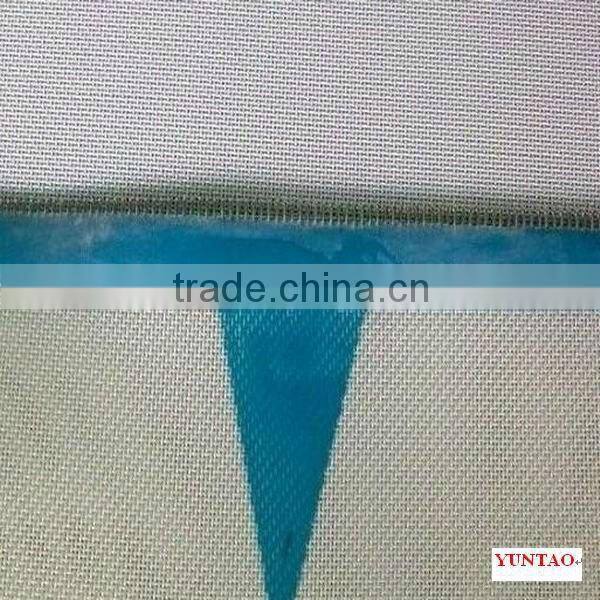

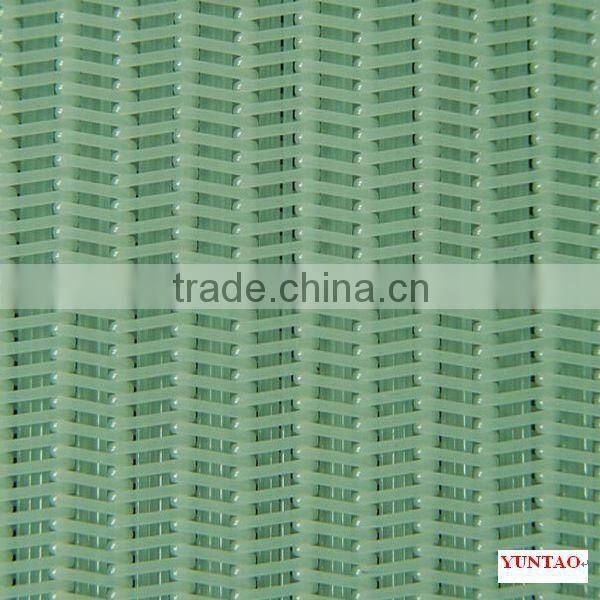

Polyester wire mesh photoes
