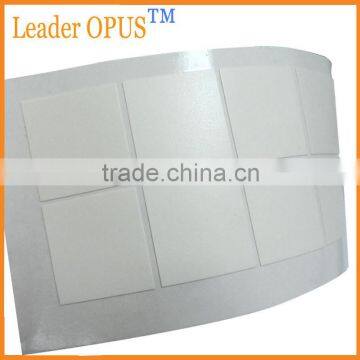

Heat conductive tape For PCB board
Features & Benefits:
² High bond strength to a variety of low energy surfaces
² Easy Application
² Eliminates need for screws,clips,etc.
² Available with easy release tabs
Configurations:
² Roll form,sheet form

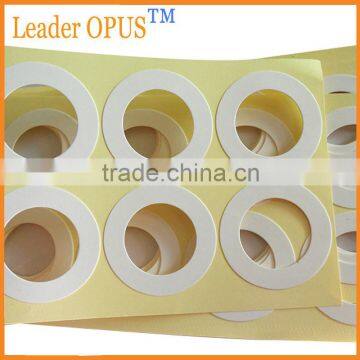

² Die-cut parts with tabs
Available sizes:
² Thickness: 0.1,0.15,0.2,0.25,0.3,0.4,0.5mm
² Width:1030mm
² Length:50m
² Custom size:please contact local sales of Leader for information and availability of die-cut parts.
Typical Application Includes:
² LED Lightings
² Between heat sinks/spreaders and chips
² DDR RAM assembly
Properties |
8N12-T10 |
8N12-T15 |
8N12-T20 |
||
Carrier |
NONE |
NONE |
NONE |
||
Thickness |
0.10mm |
0.15mm |
0.20mm |
||
Adhesion | |||||
Peel Strength(PSTC-101)(N/25mm) |
>13.72 |
>13.72 |
>15.68 |
||
Temp Resistance(S)°C (°F) |
180(356) |
180(356) |
180(356) |
||
Temp Resistance(L)°C(°F) |
120(248) |
120(248) |
120(248) |
||
Continues Use. Temp.(°C) |
-20 to 120 |
-20 to 120 |
-20 to 120 |
||
Retention(1Kg/Inch/25°C) |
>48 |
>48 |
>48 |
||
Adhesion(Kg/Inch) |
1.4 |
1.4 |
1.4 |
||
Initial Adhesion(J.DOW) |
12 |
14 |
16 |
||
Electrical | |||||
Breakdown Voltage(KV) |
2.22 |
2.55 |
4.29 |
||
Thermal | |||||
Thermal conductivity (ASTM D5470) |
1.2w/m.k |
1.2w/m.k |
1.2w/m.k |
||
Thermal Resistance(AMD240)@40PSI |
0.558C*in2/w |
1.07C*in2/w |
1.173C*in2/w |
||
Remark:
a. Data for design engineer spec. reference only. Engineers are reminded to test the material in application.
b. Shelf life: 15 months from date of manufacture when stored at storage temperature 23±5 ° C ,relative humidity is 60% in the products original packaging.
