Home > Products > TFT-LCD/PDP Parts > Silicone+PET

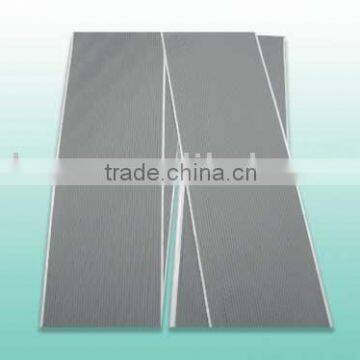

Silicone+PET
USD $0.1 - $0.25
/ Piece
1 Piece(Min.Order)
- 4400 Meter / Meters per Month
- Dongguan
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Leader | |
| Model Number | KE931+Mylar | Type | Insulation Sheet | |
| Material | Other, Silicone+PET, Silicone+PET | Application | High Temperature |
Product Description
Specifications
Silicone+PETUse on shading
reduce optical loss
cushion,insulation
waterproof,abrasion for TFT-LCD TVS etc
Silicone+PET
Backlight silicone sheet/Silicone Shading Sheet/Silicone Spacer/Silicone Shading Tape
Applications:
Use for photoelectric industry like LCD,LED,etc, its applications include LCD screen, LCD TV, laptop monitors, handheld electronic products, STN-LCD mobile phones, electronic watches, calculators screen and so on.
Typical applications:
LCD backlight cushion
Shading on the LCD panel
Prevent water and dust in the air, playing the role of seal
Buffer between plastics and glass basket
Improve insulation and shockproof on the LCD panel
Models:
KE931+PET
KE951+PET
KE961+PET
KE971+PET
| Coefficient of Friction:18U | |||
| Test Item | Test Method | Test Condition | Result |
| Color | Visual | ----- | Black,Grey,etc |
| Hardness(Silicone) | ASTM-D2240 | Shore A | 40±5,etc |
| Elongation at break | ISO527-1:1993Amd.1:2005 and ISO527-3:1995C or 2:2001(E) | % | >80 |
| Tensile Strength | Mpa | 10.1 | |
| Maximum Force | N | 252.4 | |
| Dielectric breakdown voltage | IEC60243-1:1998 | kV | >20 |
| Surface resistivity | ANSI/ESD STM11.11-2001 | Ω/sq | 4.1×1013 |
| Continuous Use Temp | EN344 | °C | -30~160 |
| Humidity use range | ------ | % | 15~98 |
| Coefficient of Friction(Silicone) | ASTM D5183-95 | u | 1.7~1.9 |
