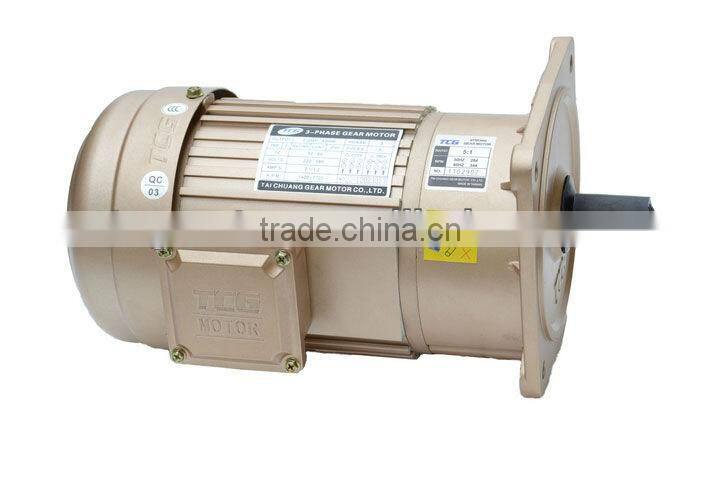

Vertical AC Asynchronous Motor WITH Gear Reducer
US$ 55 - 99
MOQ: 5 Sets
Key Specifications
Get Latest Price
Gearing Arrangement:
Helical
Output Torque:
0.19-115KGM
Rated Power:
60-4.0KW
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
4HP 3KW 100B5 Double Flange Gearbox ReducerUS$ 199 - 325MOQ: 5 Sets -
3.0kw 4HP Gear Motor With Gearhead Foot /Flange TypeUS$ 65 - 99MOQ: 5 Sets
-
3-Phase Gear Motor Drive for Speed ReducingUS$ 55 - 199MOQ: 5 Sets
-
VFD Variable Frequency Drive Gearmotor With Forced FanUS$ 99 - 129MOQ: 1 Piece
-
1HP 100RPM Foot Mounted Gear Box TCHM for IEC MotorUS$ 55 - 199MOQ: 10 Sets
Gearing Arrangement
Helical
Output Torque
0.19-115KGM
Rated Power
60-4.0KW
Input Speed
1500/1720RPM
Output Speed
1 TO 1700rpm
Place of Origin
Guangdong, China
Model Number
TCG
Brand Name
TCG

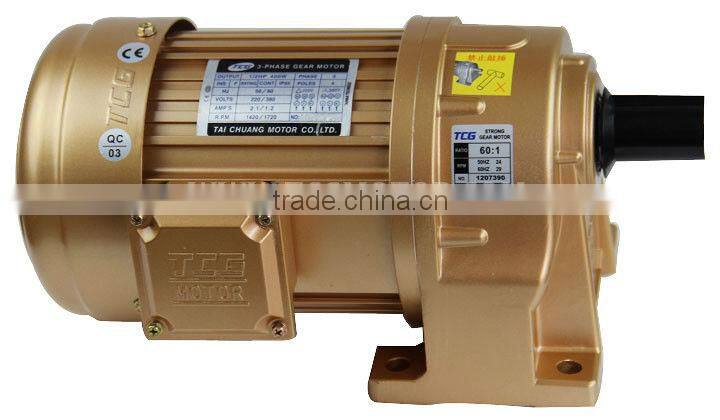

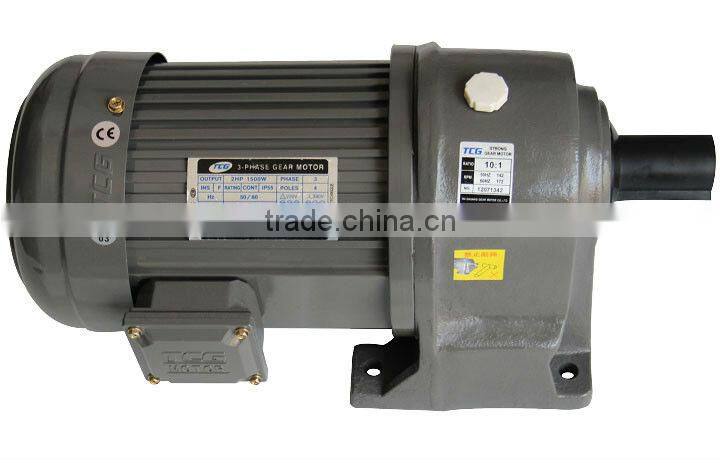

IEC AC motor with helical gearbox
1 TCG Small gear for gearmotor
♦The material of rotor is 40Cr,quench to HRC50-55 after rough rolling ,two times hard cutting,the gear precision can arrive ISO Class6-7
♦ The material of shaft gear is 20CrMnTi, quench to HRC58-61 after rough rolling ,two times hrd cutting,the gear precision an arrive ISO class 6-7
♦ TCG plate gear is 40Cr ,quench to HRC48-51 after roughing ,grind,the precision can arrive ISO class-7
2.0TCG gearmotor advantages
| ♥Economical and compact |
| ♥ High presure -resistance,good insulation ,insulation class F,Can work in different kinds of ambient |
| ♥ Long life adopting abrasion-sresistance lead free,non-asbestos friction plate ,making sure the long life |
| ♥ selective of assembling bole diameter and easy assembling |
| ♥ Multiple assembling way meets different customers |

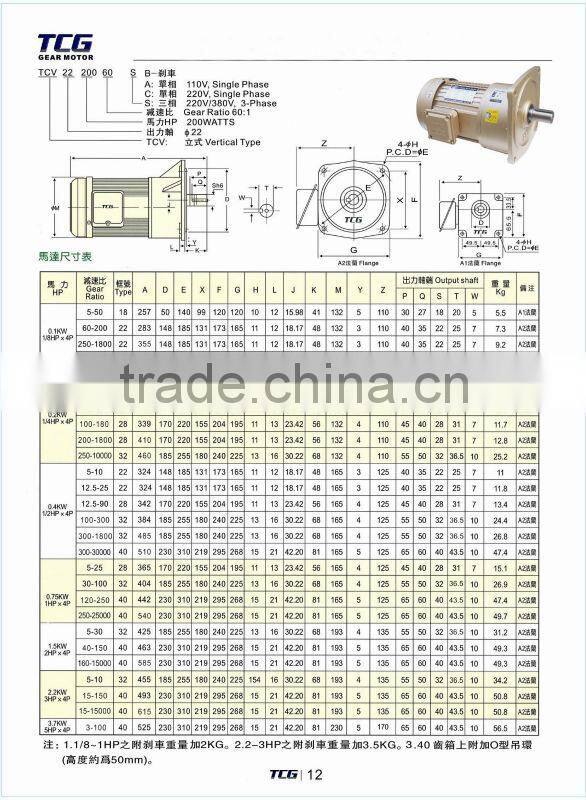

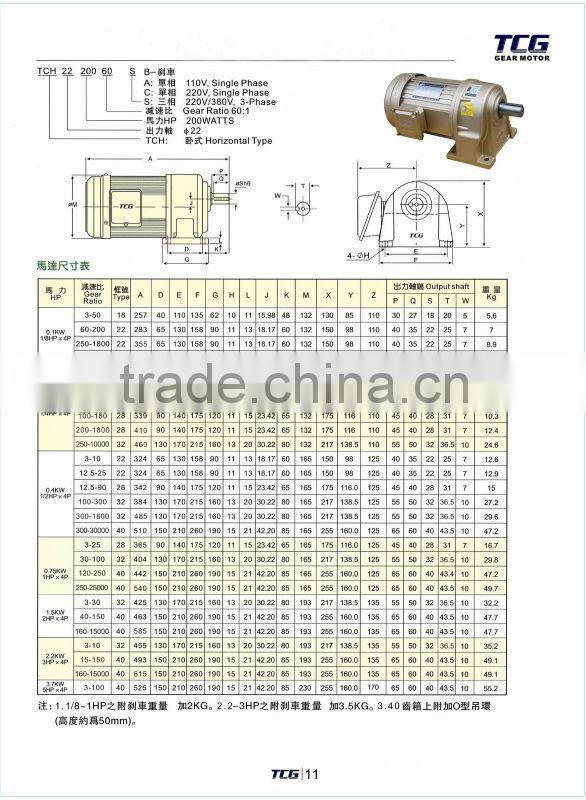

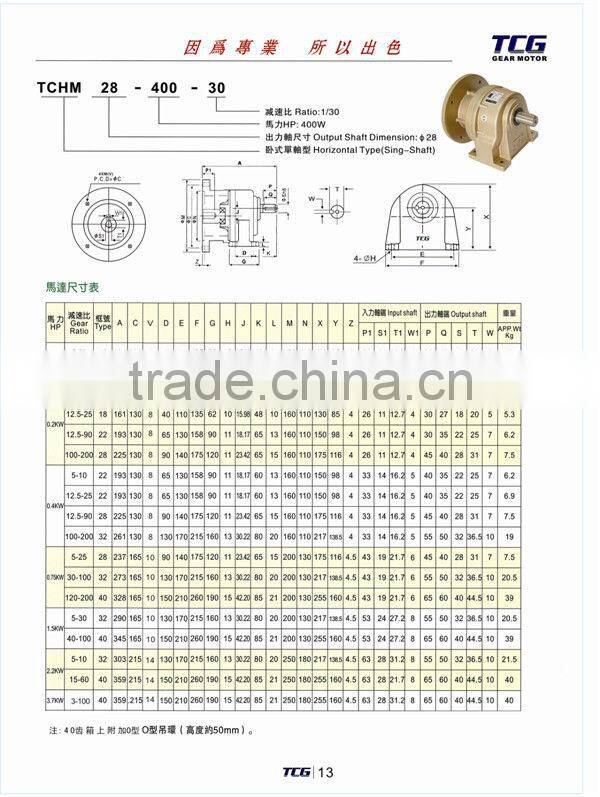

3.0Dimension of TCG Speed reduction gear motor

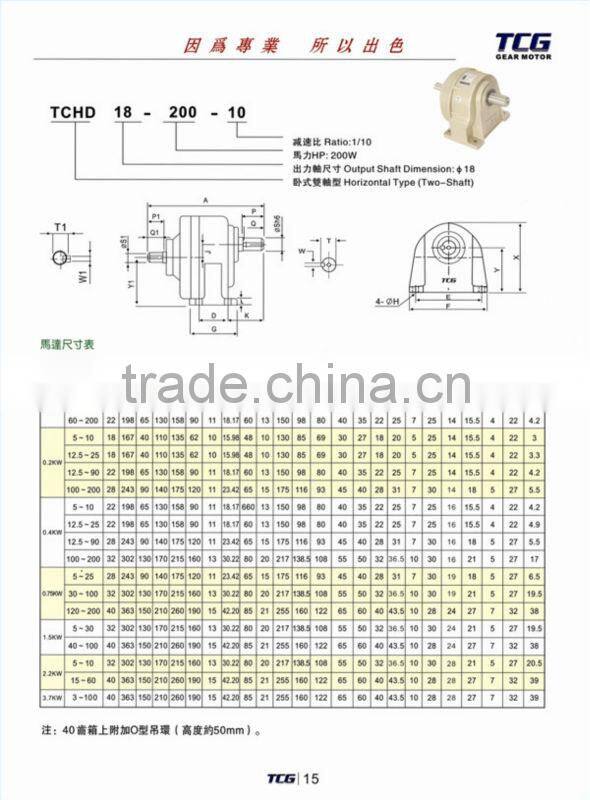

4.0TCHM Gearhead

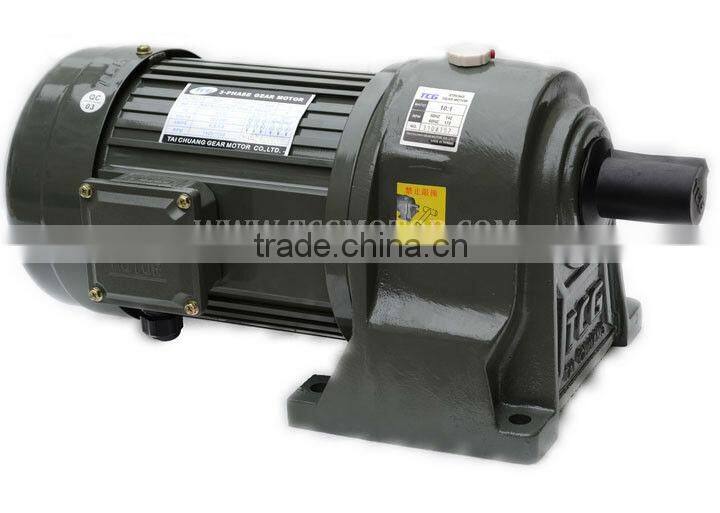

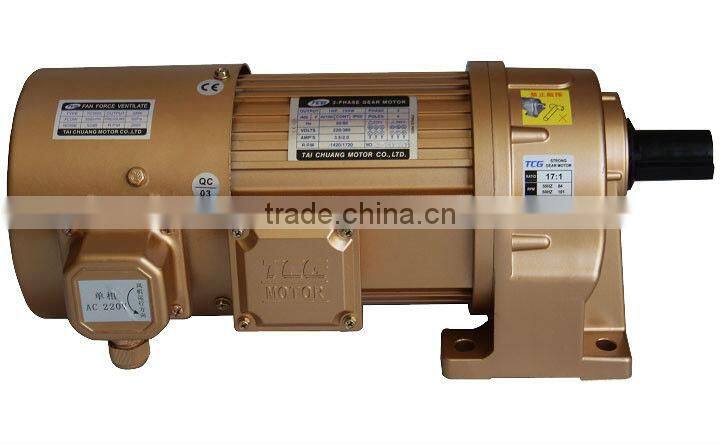

5.0Picture of some gearmotor
6.0Our TCG factory
