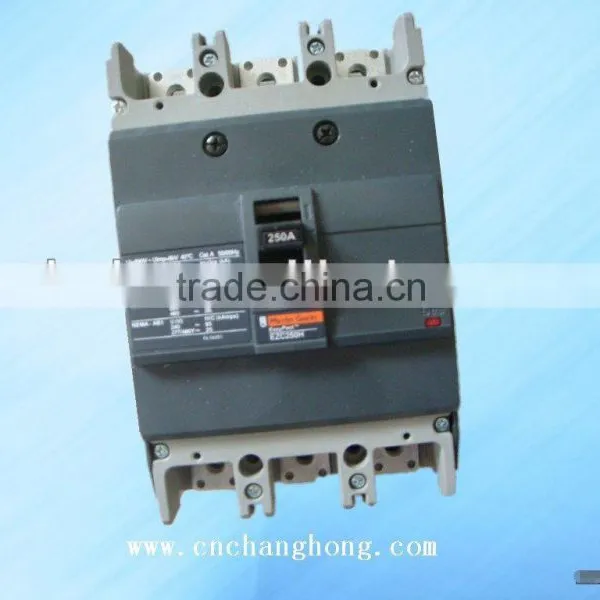

3P 250A 250H EZC type mccb
- 20000 Piece / Pieces per Month
- NINGBO/SHANGHAI
- T/T
You May Like
Product Details
Place of Origin | Zhejiang, China | Brand Name | SHOUKE/CNCHELE | |
Model Number | EZC250H | Type | Moulded Case | |
Poles Number | 3 |
Product Description
Usage
EZC series of MCCB are used in distribution network of AC50/60Hz, rated operational voltage 440V and rated current from 15A to 400A. It is used for distributing power and protecting circuit, power and electrical equipment from overload and short-circuit damage, which will improve the reliability and continuity of power supply.
Perfect function
* The breaking capacity covers the common breaking in Level II power distribution areas and electromechanical market: 25kV, 36kV and 50kV. Including 1P, 2P, 3P and 4P products.
* Comprehensive range of protection, including low voltage distribution systems protection, motor protection and earth leakage protection.
Characteristics
Item No. | EZC100 | EZC250 | |
Number of poles | 1P, 2P, 3P, 4P | 3P | |
Control | Manual | with toggle with direct or extended rotary handle | |
Connections | Fixed | front connections/rear connections | |
Electrical characteristics as per IEC60947-2 and EN60947-2 | |||
Rated current(A) | In | 15, 20 , 25, 32, 40, 50 , 63, 75, 80, 100 | 100, 125, 150, 160, 175, 200, 225, 250 |
Rated insulation voltage(V) | Ui | 690V | |
Rated operating voltage(V) | Ue | AC50/60Hz, 440V | |
Rated impulse withstand voltage(kV) | Uimp | 6kV | |
Utilization category | A | ||
Endurance(C-O cycles) | Mechanical | 10000 | 8500 |
Electrical 440V | 2000 | 1500 | |
Protection | |||
Overload protection | Bimetal | * | * |
Instantaneous protection | Magnetic | * | * |
Auxiliaries | |||
Indication contacts | AX AL AXAL | * * * | * * * |
Voltage releases | SHT UVR | * * | * * |
Dimensions(mm) | D X H X W | 1P 60 X 130 X 25 | 60 X 165 X 105 |
2P 60 X 130 X50 | |||
3P 60 X 130 X 75 | |||
4P 60 X 130 X 100 |
