Chevron conveyor belt ready for immediately delivery
Application:
Chevron conveyor belt is suitable for conveying loose, bulky or bagged materials on inclined surface at angles of less than 40 degrees.
Features:
Anti-slip:
Cleats and top cover rubber are vulcanized integrally; Cleat pattern, angle and pitch are designed elaborately.
Cleat pattern ranges: Conveyor belts with close V type, open V type, C type, and Y type.
Selection of a type and height of cleats depends on the material to be conveyed and the angle of inclination:
Type of material |
Material example |
Max. angle of inclination |
|||
Height of cleats | |||||
H (mm): 14 |
H (mm): 16 |
H (mm): 25 |
H (mm): 32 |
||
Powdery |
Flour, etc |
25° |
25° |
28° |
30° |
Loose flowing |
Corn, barley, wheat, rye, etc. |
20/25° |
20/25° |
25/30° |
25/30° |
Loose rolling |
Gravel, ground stone, etc. |
25° |
25° |
28° |
30° |
Packed |
Sacks, paper sacks, etc. |
30/35° |
30/35° |
35/40° |
35/40° |
Sticky |
Wet sand, ash, wet loam, etc. |
30° |
30/35° |
35/40° |
40/45° |

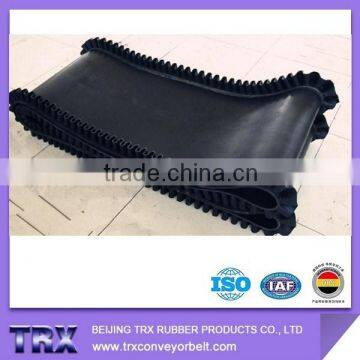

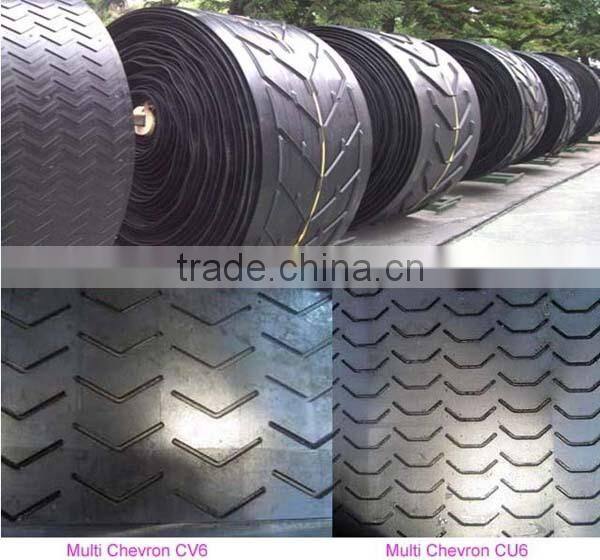

Belts Photo:

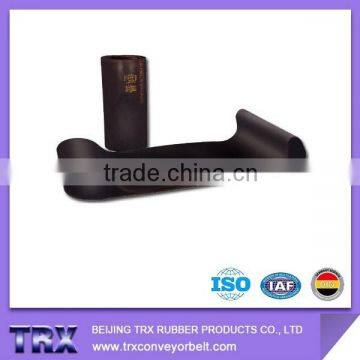

Sample Photo:
