Integrally Molded Cleat Pattern Chevron Conveyor Belt
- Tianjin Port China
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Chevron Endless Ribbed Rubber Conveyor Belt With ISO9001-2000
-
Endless Ribbed Rubber Conveyor Belt With ISO9001-2000
-
Conveyor Belt Chevron Conveyor Belt Ready for Immediate Delivery
-
Multi V Conveyor Belt With Excellent Load Support for Heavy Applications
-
Chevron Conveyor Belt for Conveying Loose, Bulky or Bagge
-
Multi V Belt Correspondance to RMA I and RMA II
Product Details
| Place of Origin | Hebei, China | Brand Name | TRX | |
| Model Number | Chevron Belt |
Product Description
Integrally molded cleat pattern Chevron conveyor belt
Application:
Chevron conveyor belt is suitable for conveying loose, bulky or bagged materials on inclined surface at angles of less than 40 degrees.
Features:
Anti-slip:
Cleats and top cover rubber are vulcanized integrally; Cleat pattern, angle and pitch are designed elaborately.
Cleat pattern ranges: Conveyor belts with close V type, open V type, C type, and Y type.
Selection of a type and height of cleats depends on the material to be conveyed and the angle of inclination:
Type of material | Material example | Max. angle of inclination | |||
Height of cleats | |||||
H (mm): 14 | H (mm): 16 | H (mm): 25 | H (mm): 32 | ||
Powdery | Flour, etc | 25° | 25° | 28° | 30° |
Loose flowing | Corn, barley, wheat, rye, etc. | 20/25° | 20/25° | 25/30° | 25/30° |
Loose rolling | Gravel, ground stone, etc. | 25° | 25° | 28° | 30° |
Packed | Sacks, paper sacks, etc. | 30/35° | 30/35° | 35/40° | 35/40° |
Sticky | Wet sand, ash, wet loam, etc. | 30° | 30/35° | 35/40° | 40/45° |

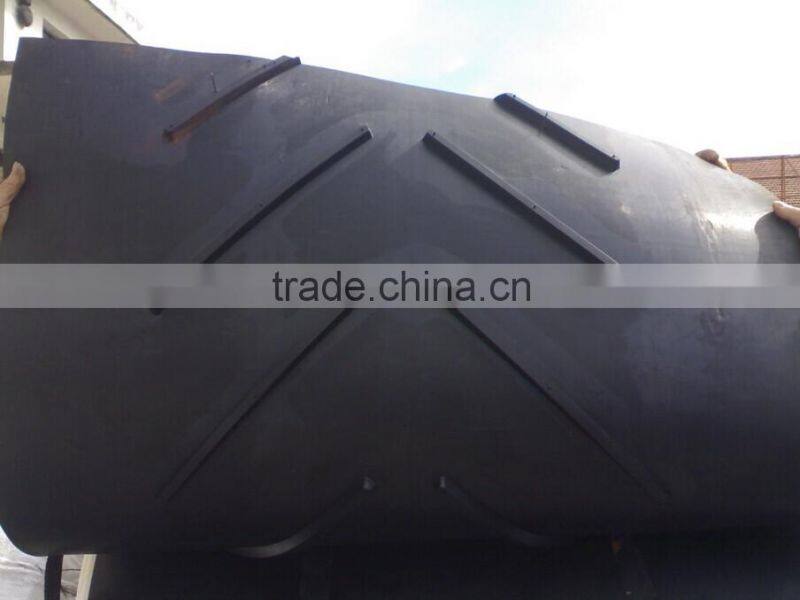

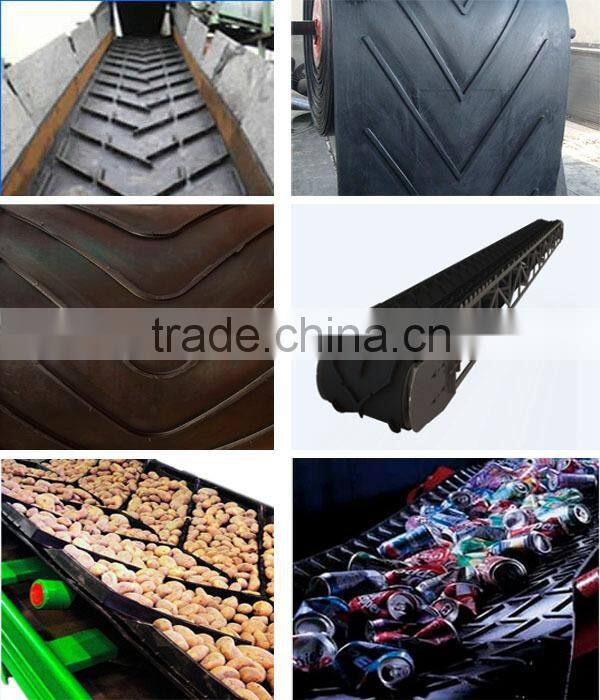

Belts Photo:

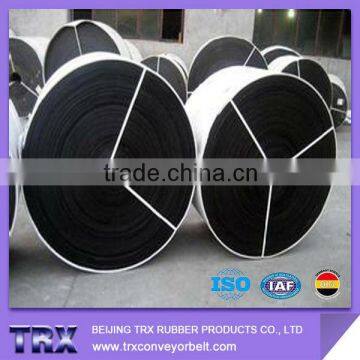

Sample Photo:
