European Standard Outdoor Combined Climbing Slide

European Standard Outdoor Combined Climbing Slide photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Future Star
Model Number:
FS-19025
Payment & Shipping
Payment Methods:
Port of Shipment:
Wenzhou Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name Future Star
Model Number FS-19025
Age Child

Specifications

climbing slide
children playground equipment
Galvanized pipe & eco-frienldy LLDPE
CE(EN1176), RoHs, ISO9001
Easy to set up

Product Name Physical Climbing
Model FS-19025
HS Code 9506919000
Certification CE, GS, TUV, CCC, ISO9001, 14001, 18001
User Age 3-12 Years

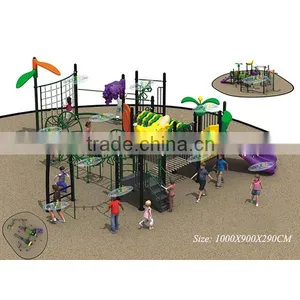

Diemension 1000X900X290CM
Safety Zone 1400X1300CM
Package Standard export packing. Plastic parts with bubble bag and pp film; Iron parts with cotton cloth and pp film.
Usage Scope Kindergarten, Park, School, Community, Residential Zone, Public Square
Function Crawl, Obstacle, Climb, Slide
Product Life 10 years
Warranty 2 years for plastic parts and metal parts and components
Features Fire resistant, non-toxic, anti-static, eco-friendly, recyclable, anti-ultraviolet
Materials

1.Plastic Parts: Imported LLDPE engineering plastics with the standard of GB/T 4454-1996. Rotational mould, infiltration of anti-ultraviolet, anti-crack, anti-static decolorization element passing, smooth surface, security assurances, weather resistance, not easily fade.
2.Column: The national standard Ø114mm diameter galvanized steel pipe with the thickness of 2.2mm (QS standard :BS1387-1985, technology standard :BS1387-1985), welded by the industrial robot, column footing plate screw with a pull-burst, the surface rust, acid degreasing, cleaning, phosphating rust after a special process, throwing sand, imported plastic powder with a double surface household-level spraying layer, electrostatic spray, high-temperature plastic 200 degree baking powder, strong, smooth surface, UV, colorful, easy to fall off.
3.Platform: High strength punching plate, with a special process dealing with wavy surface microscopy, water-proof, safe and beautiful non-slip resistance. Conforming to the European standards,EU EN1176 and USA ASTM.
4.Fastener: No.304 Stainless steel screws(GB/T1221-1992) used Lvkou pieces, and the contact point deduction and the columns to be rubber pads, and machine-processed rice tighten the screw, screw top cover with a plastic cap, but enhance its security.
5.Deck, stair, bridge: Plastisol (rubber coated) or powder coated.
6.Guardrail and handrail :With Ø 60mm, thickness of 2.2mm steel, Ø 32mm, thickness of 2.2 mm pipe, Ø25 mm, thickness of 2.2 mm steel.
7.Iron Part: Galvanized steel pipe with diameter of 60 mm, 48mm, 38mm, 32mm, 28mm, wall thickness of 2.5 mm
8.Fittings: high strength aluminum alloy by one-time cast forming. After the slinging processing, all the corners are round and smooth. All screws, with cup heads or T heads, are made of stainless steel 316
9.Roof: Aluminum Sheet (Different material is available at your demand. )

About Us

We are one professional supplier of playground equipment with 10 years experience in China. Our main products include outdoor playground, indoor playground, inflatable bounce, etc.

Our amusement equipments are ornamental, knowledgeable and interesting. With adopting the latest western fashionable styles, and integrating the civil child body form and structure physique, we skillfully combine "running, probe, climbing, rolling" with the happiness, to develop the children's ability of balance independent, coordination and creation, and increase their self-protection awareness.

We also can make design according to your area and requirement.

Advantages

1.Safety Assurance  All our designs and products are strictly inspected according to the safety standards to make sure all the parts of the toys will cause no harm to the kids. All the metal parts are smooth and the plastic parts are no-toxic, anti-ultraviolet property, conforming to the standard of FOOD class.

2.High Quality  We have been believing that quality is the soul of the products. We assure that our products will keep in very good condition after long time use or even in the harsh climatic conditions. All the parts will keep high durability.

3.Experienced Design  Our toys are designed by very experienced designers according to the interests and feels of the children. With different characters and styles, our products bring to the children not only happiness but also the health and wisdom.
4.Competitive Price  For the same products in same quality and same standard, we will offer you the lowest prices. With the same amount of money, you will enjoy more experienced designs, faster delivery,professional installation instructions and much better services.

European standard outdoor combined climbing slideEuropean standard outdoor combined climbing slide
