400w AC Servo Motor and Servo Motor Controller

400w AC Servo Motor and Servo Motor Controller thumbnail-1
400w AC Servo Motor and Servo Motor Controller photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Hubei, China
Brand Name:
Maxsine
Model Number:
80MSL01330F&EP3-GL3A0
Contact Supplier Request Quote Chat Now
Wuhan Maxsine Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Shenzhen/Wuhan
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hubei, China
Brand Name Maxsine
Model Number 80MSL01330F&EP3-GL3A0

Specifications

1' 2500 ppr TAMAGAWA encoder
2' low power
3' easy to operate
4' easy maintenance
5' wide application

Production Description of Servo Motor and Servo Driver
400w AC servo motor and servo motor controller

  • All-digital AC Servo Driver: currently covers power range from 50w to 5.5kw.

  • Permanent Magnet AC Servo Motor: currently covers torque from 0.6Nm to 48Nm

  •                                                                   and power from 50w to 7.2kw.

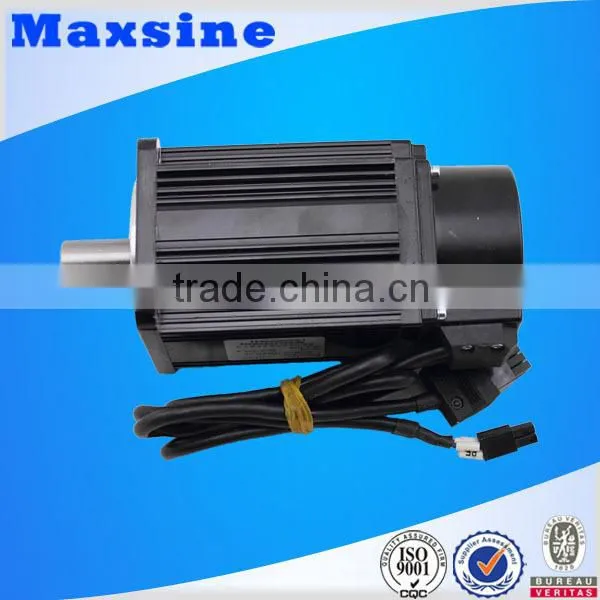

Introduction of  Servo Driver 80MSL01330F



Name servo motor
Model 80MSL01330F
Rated Power 400w
Rated Line Voltage 3 phase 220VAC
Rated Line Current 2.0A
Rated Speed 3000rpm
Rated Torque 1.27Nm
Peak Torque 3.8Nm
Rotor Inertia 1.32*10-4 kg·m2
Lines of Encoder 2500ppr
Motor Insulation Class ClassB(130°C)
Operating Environment

Temperature: -20°C ~ +50°C;

humidity: relative humidity (RH)<90%

(not including condensing

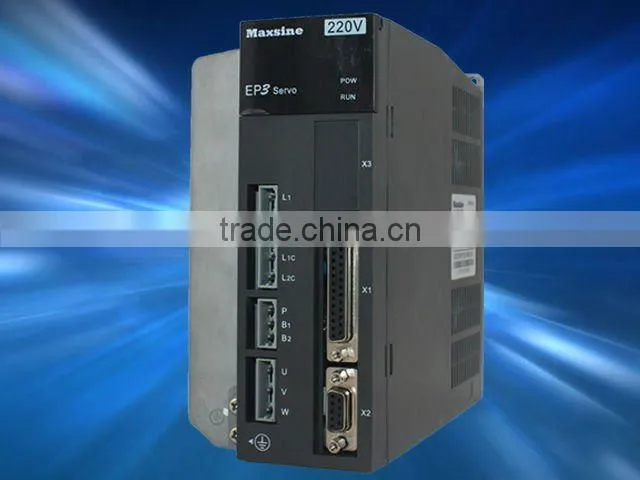

Introduction of EP3-GL3A0

400w AC servo motor and servo motor controller





Introduction of EP3 Size

400w AC servo motor and servo motor controller

400w AC servo motor and servo motor controller



Introduction of EP3 Specification





Model    GL 3A0
Rated output Power(kW) 0.4
Rated output current(A) 3.0
Input power Main supply 1-phase 220VAC -15%~+10% 50/60Hz
Control supply 1-phase 220VAC-15%~+10% 50/60Hz
Environment Temperature Working:0°C~ 40°C Storing:-40°C~ 50°C
Humidity Working:40% ~ 80%(non condensing) Storing:under 93%(non condensing )
Atmospheric Pressure 86kPa ~ 106 kPa
Control Mode vector control
Regenerative Braking Built-in/built-out
Feedback Mode 2500 line incremental encoder or 17 bit absolute encoder
Control Mode Position, speed, torque, position/ speed,speed/torque,position/torque
Digital input 5 Programmable input terminals(Optical Isolation)
Digital Output 3 Programmable input terminals(Optical Isolation)
Position Input Frequency differential input:≤500kHz(kpps), single-ended input:≤200kHz(kpps)
instruction mode Pulse+Signal,CCW Pulse/CW Pulse, Two-phase A/ orthogonal Pulse
Electronic Gear Ratio 1 ~ 32767/1 ~ 32767
Speed Simulation command input -10V ~ +10V,input impedance10kΩ
Instructions Acceleration And Deceleration Parameters set
Instructions source analog,Internal speed instructions
Torque Simulation command input -10V ~ +10V,input impedance10kΩ
Speed restriction Parameters set
Instructions source analog,Internal torque instructions
Special Functions ZRN ,Gain switch,mechanical resonance wave trap, sustaining Modbus agreement
Surveillance Function Revolving Speed,Current Position,Positional Deviation,Motor Torque,Motor Current,Instructions Pulse Frequency etc.
Defensive function Overspeed,Overvoltage,Overcurrent,Overload,Abnormal brake,Abnormal Encoder,out of tolerance etc.
Feature Speed Frequency Response ≥300Hz
Speed Fluctuation Rate <±0.03%(load 0 ~ 100%); <±0.02%(power-15% +10%)
Speed Ratio 3.513889




Details show

 400w AC servo motor and servo motor controller



400w AC servo motor and servo motor controller





400w AC servo motor and servo motor controller

Application
  • CNC industry
  • Textile industry
  • Robot industry
  • Paper making industry
  • Industrial spring machine
  • Printing and packaging industry
  • Mechanical spring machine industry

Shipping
  1. EXPRESS(sample): around 5-7 working days to arrive
  2. EXPRESS: around 3 weeks to arrive
  3. Ocean carriage: usually less than 2 months
Payment
  1. Wire Transfer
  2. Western Union
  3. Alibaba B2B Credit Card
Certification
 400w AC servo motor and servo motor controller
Packing
After inspection the goods are packed in plastic bags and then carefully packed in cartons.
