Specifications
1' 3 phase 220VAC2' 1.0~2.5kw
3' Pulse or Torque or Speed control
4' with IPM and DSP
5' Protection Level: IP20
|
|
1'Introduction of EP100 Specification
| Model | EP100(B)-2A | EP100(B)-3A | EP100-5A | ||
| Input Power | 3-phase AC220V -15% ~ +10% 50/60Hz | ||||
| Environment | Temperature | Working:0°C~ 40°C Storing:-40°C~50°C | |||
| Humidity | 40% ~80%(non condensing ) Storing:under 93%(non condensing ) | ||||
| Atmospheric Pressure | 86kPa ~ 106 kPa | ||||
| Protection Level | IP20 | ||||
| Regenerative Braking | Built-in | ||||
| Control Mode | EP100 series | Position,Speed, Torque | |||
| EP100B series | Position | ||||
| Digital Input | 1.SRV-ON 2.A-CLR 3.CCW Drive Inhibition 4.CW Drive Inhibition 5.Deviation CL/Speed Selection 1/ ZEROSPD 6.Instructions Pulse Inhibition/Speed Selection2 7.CCW Torque Limitation 8.CW Torque Limitation |
||||
| Digital Output | 1.Servo Ready Output 2.Servo Alarm Output 3.Finish Orientation Output/Reach Speed Output 4.Mechanical Brake Output |
||||
| Position | Input Mode | Pulse+Signal, CCW Pulse/CW Pulse,Two-phase A/ orthogonal Pulse | |||
| Electronic Gear Ratio | 1~32767/1~32767 | ||||
| Feedback Pulse | 2500 Line/turn | ||||
| Torque | Analog Instructions Input | -10V ~ +10V,Input Impedance10kΩ | |||
| Rate Limitation | Parameter Setting | ||||
| Instructions Source | Analog,Internal Torque Instructions | ||||
| Speed | 4 kinds Internal Speed/Analog Control | ||||
| Acceleration and Deceleration Function | Parameter Setting 1~10000ms | ||||
| Surveillance Function | Revolving Speed,Current Position,Instructions Pulse Accumulation,Positional Deviation,Motor Torque,Motor Current,Straight-line Speed,Rotor Absolute Position,Instructions Pulse Frequency,Running State,Input and Output Terminal Signals etc. | ||||
| Protection Function | Overspeed,Overvoltage, Undervoltage,Overcurrent,Overload,Abnormal Brake of main Power,Abnormal Encoder,Abnormal Control Power Supply,out of tolerance etc. | ||||
| Feature | Speed Frequency Response | ≥250Hz | |||
| Speed Fluctuation Rate | <±0.03%(Load 0 ~ 100%); <±0.02%(Power -15% +10%)(parameters agree with rated speed) | ||||
| Speed Ratio | 1:5000 | ||||
2'Servo driver models
EP100-2A, EP100B-2A, EP100-3A, EP100B-3A, EP100-5A

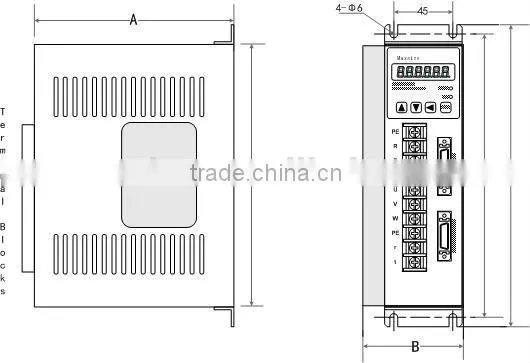

3'Introduction of EP1C Size
4' Application
- CNC industry
- Textile industry
- Robot industry
- Paper making industry
- Industrial spring machine
-
Printing and packaging industry
- Mechanical spring machine industry

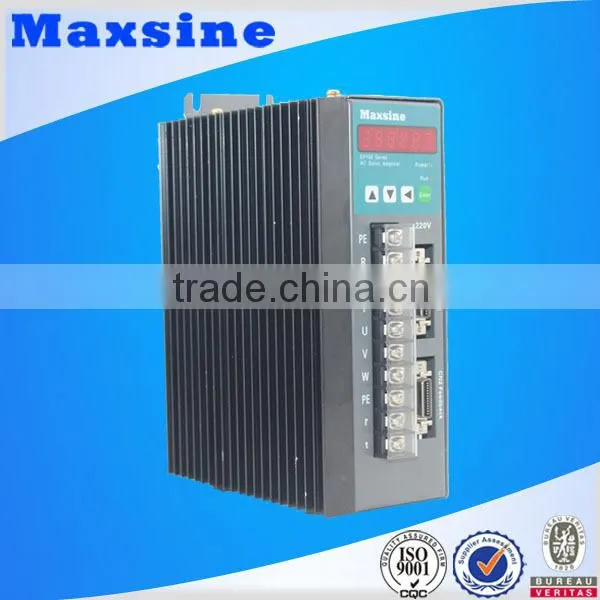

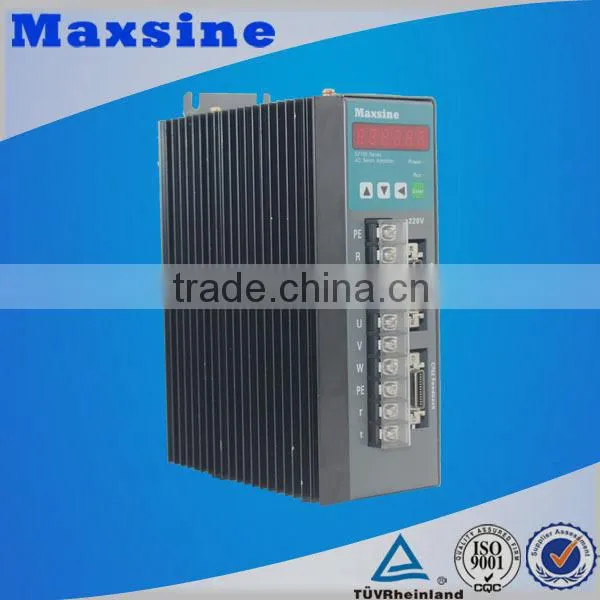

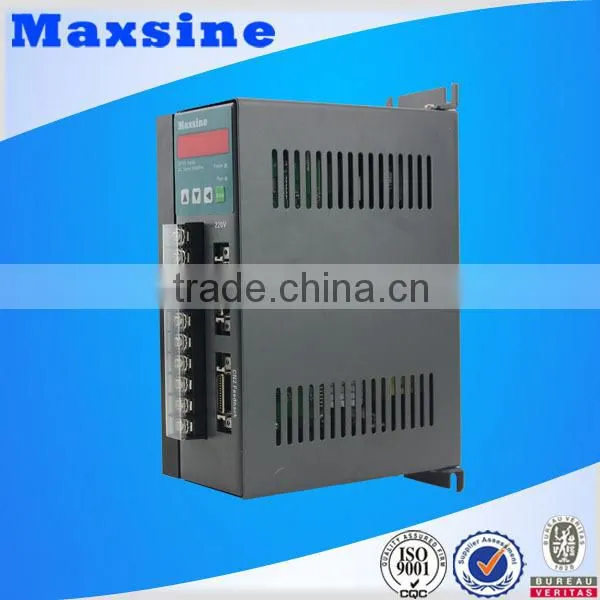

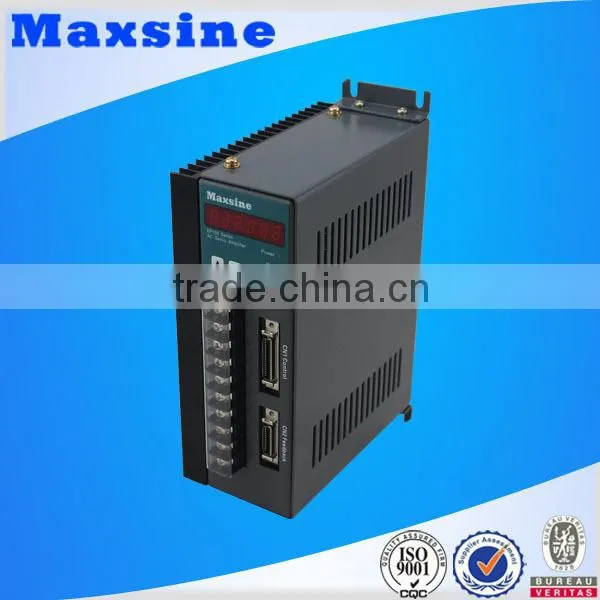

5' Detail show
|
packing:
After inspection the goods are packed in plastic bags and then carefully packed in cartons.
|
|
Shipping:
1. EXPRESS(sample): around 5-7 working days to arrive 2. EXPRESS: around 3 weeks to arrive 3. Ocean carriage: usually less than 2 months |
Wuhan Maxsine Electric Co., Ltd. was established in Wuhan City in 2004. All-digital AC Servo Drivers and Permanent Magnet AC Servo Synchronous Motor are core products. With continuous effort of the staff for nearly 10 years and technical accumulation and innovation of the technical team for more than 20 years, our company has succeeded in holding both technology leading status and the biggest market share in China.
