US$ 1 - 3
MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Model Number:
U2&U3
Brand Name:
HENGTONG
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Jiangsu, China
Model Number
U2&U3
Brand Name
HENGTONG
Features:

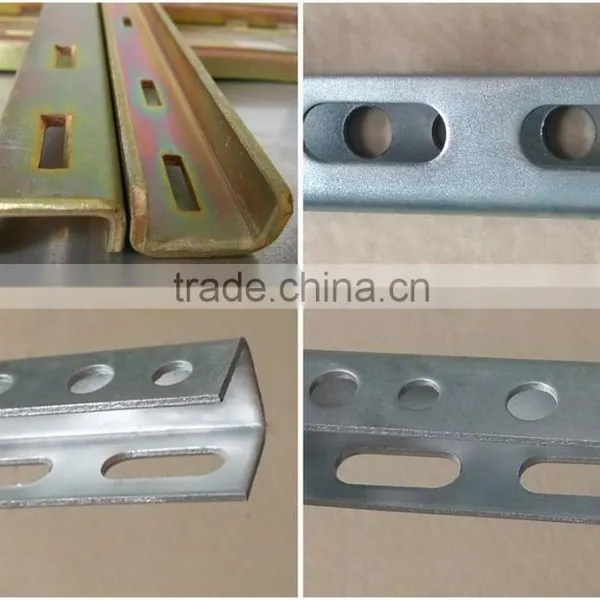

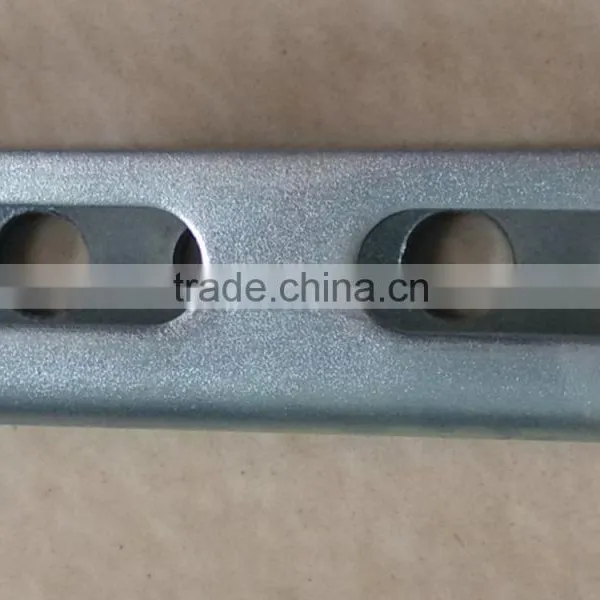

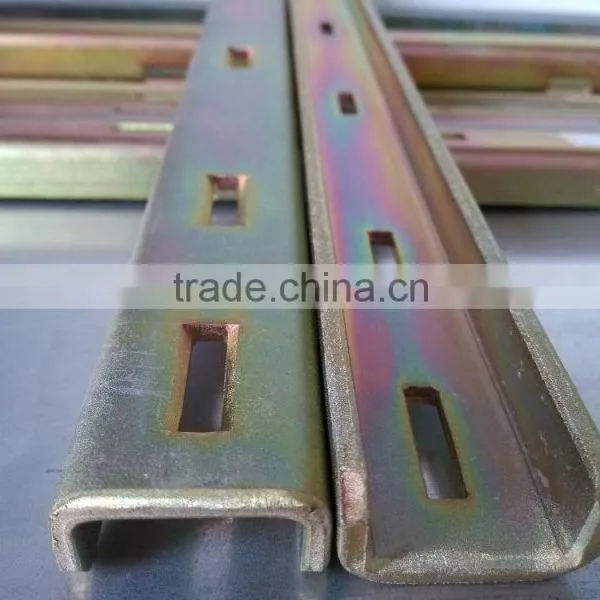

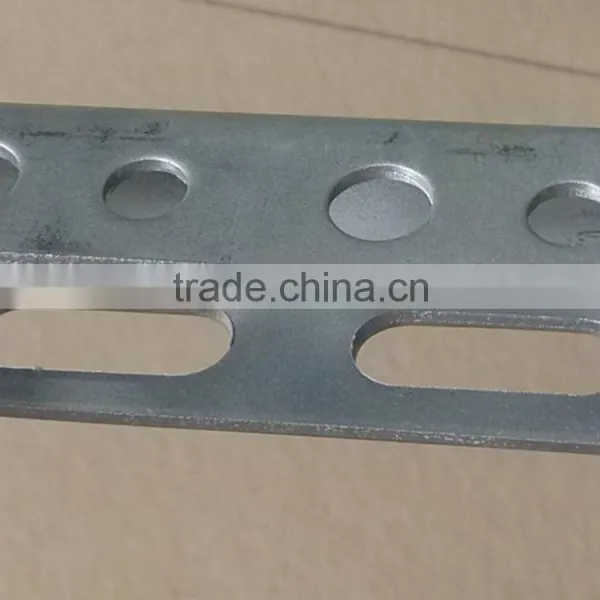

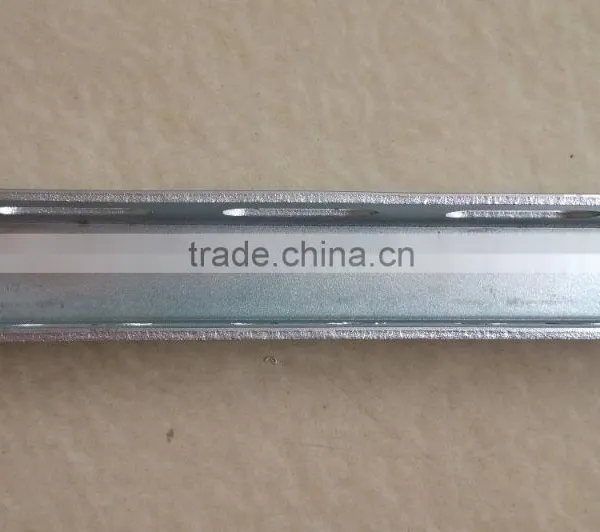

1) U channel are manufactured from Q235/Q215 with galvanized finish or epoxy coating.
2) Wall thickness is 2mm and 3mm.
| SPAN(mm) | 250 | 500 | 750 | 1000 | 1250 | 1500 | 1750 | 2000 | |
| Max.Allowable Uniform Load(KN) | U-2 | 5.6 | 2.8 | 1.9 | 1.4 | 1.1 | 0.9 | 0.8 | 0.7 |
| U-3 | 7.4 | 3.7 | 2.5 | 1.8 | 1.5 | 1.2 | 1.1 | 0.9 | |
| Deflection at Uniform Load(mm) | U-2 | 0.3 | 1.3 | 3 | 5.4 | 8.4 | 12 | 16.3 | 21.3 |
| U-3 | 0.3 | 1.3 | 2.8 | 5 | 7.9 | 11.4 | 15.4 | 20.2 | |
| Uniform Load at Span/200Deflection(KN) | U-2 | 5.6 | 2.8 | 1.9 | 1.3 | 0.8 | 0.6 | 0.4 | 0.3 |
| U-3 | 7.4 | 3.7 | 2.5 | 1.8 | 1.2 | 0.8 | 0.6 | 0.5 | |
