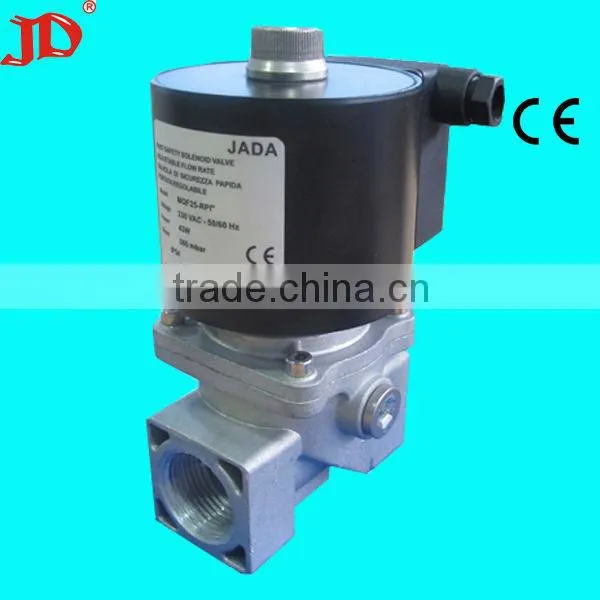

(solenoid valve 220v ac)adjustable gas solenoid valve(fast opening and fast closing)

Specifications

1.Wide application
2.High quality
3.Working media: water gas, natural gas,petrolum gas
4.Competitive price

Product introduction:

(1)The MQF type valve is a fast opening solenoid valve that is normally closed.When not energized the spring works on the seat keeping the gas passage closed. When the coil is powered the valve opens. When power is cut off the valve rapidly shuts.



(2)This type of device is suitable for gas and air blocking and adjusting controls in atmospheric burners or fan-assisted burners, in industrial ovens and in all gas equipments which use gas solenoid valves(qualified for continuous service-100%ED).



Model	Drift diameter(mm)	Technology parameters		Voltage(V)	Overall dimension			Connection dimension	Valve body material
					Length B	Width C	HeightA
MQF-10	10	Pressure scope: 0~360mbar	Working media: Water gas, gas,nature gas petroleum,liquid gas,mash gas media temperature: 0~60°C	AC415 380 220 110 36 24 DC220 36 24	75	67	122	Internal thread G 3/8"	Aluminum alloy
MQF-15	15				75	67	122	Internal thread G1/2"
MQF-20	20				94	84	170	Internal thread G3/4"
MQF-25	25				94	84	170	Internal thread G1"
MQF-32	32				152	117	225	Internal thread G11/4"
MQF-40	40				152	117	235	Internal thread G11/2"
MQF-50	50				155	105	235	Internal threadG2"
MQF-65	65	0~200mbar			305	198	355	Flange 4-Φ18×Φ145
MQF-80	80				305	198	355	Flange 8-Φ18×Φ160
MQF-100	100				370	250	476	Flange 8-Φ18×Φ180
MQF-125	125				460	312	598	Flange
MQF-150	150				460	312	598	Flange



Technical specification:
Connections:		Gas threaded ISO7/1 from Rp3/8''to Rp 2''flanged ISO 7005-PN 16 from DN40 to DN150
Voltage rating:		230VAC,110VAC,24VAC/DC,12VAC/DC
Voltage tolerance:		reduce 15%  or  plus 10%
Enviroment temperature:		subzero 15°C or 60°C
Working pressure:		200-360mbar Max
Closing time:		<1 second
Protection class:		IP54
Cable gland:		PG 9
Pressure inlets		G1/4'' on two sides(except brass models)
Limit switch:		by request from 3/4'' to 6''
Gas type:		Air and non-aggressive gases(EN437)





As a professional solenoid valve manufacturer, we are engaged in researching, developing, manufacturing and selling various solenoid valves, mainly products are VM series gas Solenoid Valve, VS series gas solenoid valve, fuel pressure relief valve, pulse solenoid valve, ZCT Direct acting Solenoid Valve, ZCT Pilot Based Diaphragm Solenoid Valve, MQF Fuel Gas Solenoid Valve, DF3 2 Position Solenoid Valve, 2W Direct Acting Solenoid Valve, and so on. We can design solenoid valves according to clients' requirement, from size to function, solenoid valves for gas, water, Co2, air, etc. 2 way solenoid valves, 3 way solenoid valve, or even more. 12v solenoid valve, 24v solenoid valve, a full range of voltage types for you. More new solenoid valves can be found from our website.

Installation and adjustment

Check correspondence of flow direction with arrow printed on valve body,check correct alignment of connecting pipes and allow enough space from the walls to allow free air circulation.We recommend installing a filter upstream of  each installation(open<1mm).Valve may be mounted with coil in horizontal or vertical position.Coil may be oriented 360 degrees in any direction. Install in an area that is protected from rain and water splashes or drops.Capacity may be adjusted from 0 cubic meters/h to the maximum marked on the plate(excepting brass models and 4''-5''-6'' model).Remove coil fastener cap, turn adjustment screw under locking dowel.Make sure that capacity adjustments are made while burners is in operation, and when adjustment is complete screw back locking dowel. Adjustment below 40% capacity are unadvisable since they may cause turbulence



Electrical connection

Remove protection cover and connect power cables to rectifier circuit terminal board. Should cables pass through originally closed opening. use the rubber capsule placed underneath the cap to close any other opening. In  case of 12V or 24V powered valves two entries are provided marked with the symbols L/N and +/-(except for flanged models and coils with plastic overinjection) With alternating voltage connect to entries L/N. If it is rectified or direct, with entries+/-.CAUTION:Turn off, all power before servicing any part of the system.

Cleaning and maintenance

Dust  and any foreign bodies may be easily removed from the filter or the gas passage zone. After shutting off upstream gas and electric current, remove the coil and unscrew the screws fixing the counter-flange to the valve body. During this operation care should be taken not to cause damage to the seat housing and the teflon sliding clamps.
