Specifications
1.Competitive price2.Good after sell service
3.Wide application
4.Main market: China
5.Low power consumption

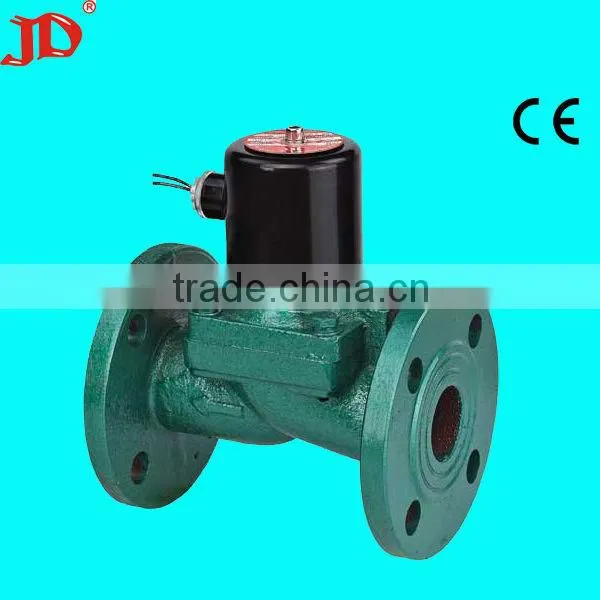

ZCM series gas valve is normally closed suspension type diaphragm solenoid valve, when the coil with power,electromagnetic power suck up iron core, pull small valve and diaphragm,make the valve gate open:when cut off the power, electromagnetic power disappear,move iron core shift down to close the valve gate.Normal open type and normal close type princeple opposite.
| model number | Diameter (mm) |
technical parameter | outside measurement | attended mode | Body Material | |||
| long | high | |||||||
| ZCM-15 | 15 | Pressure difference:0~0.1MPa Working medium:liquid gas,natural gas,coal gas,gas. Fluid temperature:0~60°C Power supply:AC220V |
60 | 98 | internal thread G1/2" | bronze | ||
| ZCM-20 | 20 | 65 | 100 | internal thread G3/4" | ||||
| ZCM-25 | 25 | 88 | 108 | internal thread G1" | ||||
| ZCM-25AB | 25 | Pressure difference:0~0.02MPa | 88 | 108 | internal thread G1" | |||
| ZCM-32 | 32 | Pressure difference:0~0.1MPa Working medium:liquid gas,natural gas,coal gas,gas. Fluid temperature:0~60°C Power supply:AC220V |
104 | 120 | internal thread G1 1/4" | |||
| ZCM-40 | 40 | 120 | 165 | internal thread G1 1/2" | ||||
| ZCM-50 | 50 | 145 | 190 | internal thread G2" | ||||
| ZCM-65 | 65 | 240 | 340 | flange 4-Φ17*Φ145 | cast iron | |||
| ZCM-80 | 80 | 225 | 355 | flange 4-Φ17*Φ160 | ||||
| ZCM-100 | 100 | 325 | 400 | flange 8-Φ17*Φ180 | ||||
| ZCM-125 | 125 | 390 | 460 | flange 8-Φ18*Φ210 | ||||
| ZCM-150 | 150 | 460 | 520 | flange 8-Φ22*Φ240 | ||||
As a professional solenoid valve manufacturer, we are engaged in researching, developing, manufacturing and selling various solenoid valves, mainly products are fuel reducing pressure Solenoid Valve, VM gas valve, VS gas valve. pulse electromagnetic valve. ZCT Direct acting Solenoid Valve, ZCT Pilot Based Diaphragm Solenoid Valve, MQF Fuel Gas Solenoid Valve, DF3 2 Position Solenoid Valve, 2W Direct Acting Solenoid Valve, and so on. We can design solenoid valves according to clients' requirement, from size to function, solenoid valves for gas, water, Co2, air, etc. 2 way solenoid valves, 3 way solenoid valve, or even more. 12v solenoid valve, 24v solenoid valve, a full range of voltage types for you. More new solenoid valves can be found from our website.
