PVC Culvert Pipe Making Machine
Application:
1.This PVC pipe production line is widely used for producing PVC water supply pipe,drainage pipe and high voltage cable protection pipe.
2.With CPVC pipe mold,it could also produce CPVC pipe.
PVC Culvert Pipe Making Machine -----basic information:
Model number |
PVC-16/63 |
PVC-50/160 |
PVC-75/250 |
PVC-110/315 |
PVC-200/450 |
|
Pipe diameter
|
16-63mm |
50-160mm |
75-250mm |
110-315mm |
200-450mm |
|
Max output
|
120kg/h |
180kg/h |
300kg/h |
450kg/h |
650kg/h |
|
Production rate
|
1.5-15m/min |
0.5-5m/min |
0.4-4m/min |
0.3-2m/min |
0.1-1m/min |
|
Extruder model
|
SJZ-51/105 |
SJZ-55/110 |
SJZ-65/132 |
SJZ-80/156 |
SJZ-92/188 |
|
Installed power
|
45kw |
55kw |
75kw |
105kw |
160kw |
|
Installation area
|
22*2.5*2.0m |
24*2.8*2.0m |
30*2.8*2.2m |
35*3.0*2.4 m |
36*3.0*2.4 m |
PVC Culvert Pipe Making Machine -- chart:
PVC Culvert Pipe Making Machine --detail information:
1. Automatic feeding system:

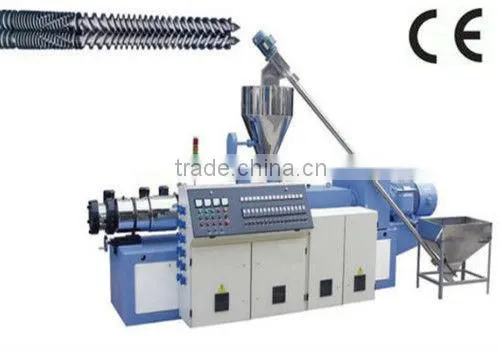

2. Twin screw extruder: high speed extruders adopts notched barrel (with water forced cooling transportation zone), shielded screw with special mixing structure ensures the stability of high extruding and the plasticizing quality.
3. Electrical control system: Siemens PLC, ABB converter, Omron temperature controller. The entire production line adopts the originally imported new control system of PLC programmable computer, guaranteed highly and steadily reliable controls of the production line.

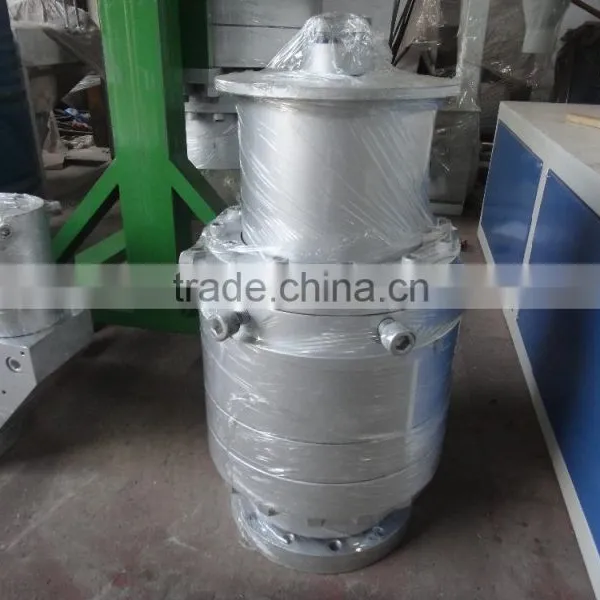

4. Die head: specially structured spiral accumulator-type die head surmounts stress orientation of polymer chain during pipe forming and achieve smooth-pressure extruding, and makes the good physical and chemical properties of raw material be copied into the pipe, meanwhile the stability of the extruding pressure is the strong guarantee for high-speed manufacturing.

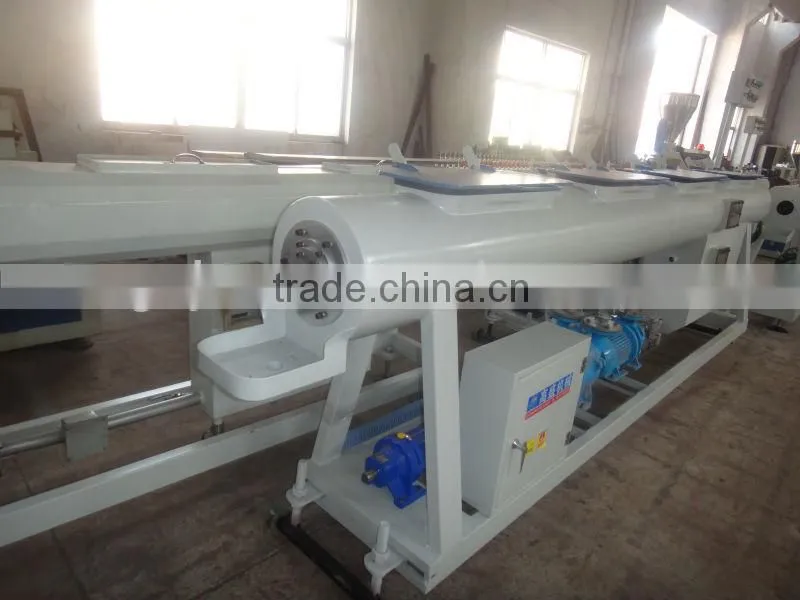

5. Vacuum calibration tank: vacuum calibrating mandrel adopts our own proprietary’s mult-sheet water immersion calibrating mandrel (invention patents, practical new patents), realized the cooling calibrating evenly and effectively for plastic pipe, ensuring high speed production of the pipe.
6.Haul-off machine and cutter

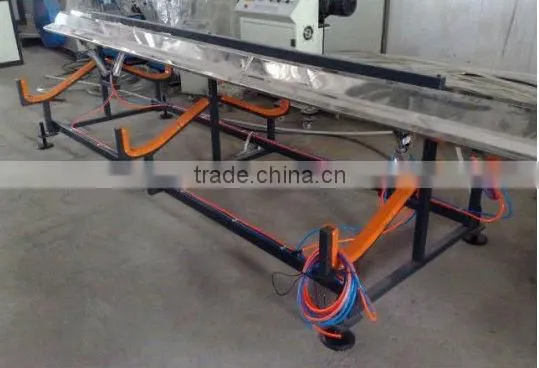

8.Tilter
FAQ:
•Q:What is your company main product?
A:Pipe making machine
•Q:Are you a factory or trade company?
A:We are a factory.
•Q:Where is your factory located?How can I visit there?
A:Our factory is located in Zhangjiagang city,Jiangsu Province,China,about 2 hours bus ride from Shanghai.All our clients,from home and abroad,are warmly welcome to visit us.
After Service:
We have 1 year warranty, and lifetime maintenance.
Within one year, if there is some accessory going wrong, we will send you the accessory at once, free of charge.
1). Within one month, if the machine is of any big fails, we will send you a new machine.
2). Within one year, if you send back the equipment for repair, we will be responsible for the repair, including the changes of accessories; Both of them are free of charge.
3). After one years, we offer to repair the machine, but we quire for the cost of the changed parts, not for manual cost.
4). No responsibility for man-made destroy.
5). If the buyer has any questions from our technical department, we can supply on-line service Or we can send professional engineers to help you debug them.
If you are interested in our machines and want to know more information about our machines,please do not hesitate to send your inquiry to us,we'll try our best to serve you.
Hopefully we can succeed in cooperation and establish long term business relationship.
Best regards.
Amy Su
