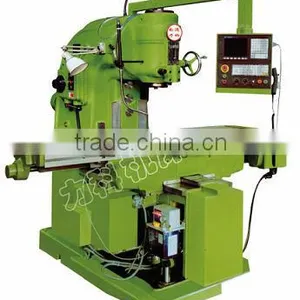

XK5040 Cnc Milling Machine

Name: XK5040 Cnc Milling Machine
Brand: lecroy
SKU: 118956271
Availability: InStock

US$ 1,000 - 100,000 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Jiangsu, China

Brand Name:

lecroy

Nantong Lecroy Machine Tool Manufacturing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Jiangsu, China

Brand Name lecroy

Model Number XK5040 cnc milling machine

Type Vertical

CNC or Not CNC

Voltage customized

Power(W) 18825

Dimension(L*W*H) 2600X2600X2400mm

Weight 4250kg

Certification ISO9001

Warranty one year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.Easy operate/low noise / variable speed
2.High rigidity and stability casting body
3.Perfect lubricate system
4.ISO9001

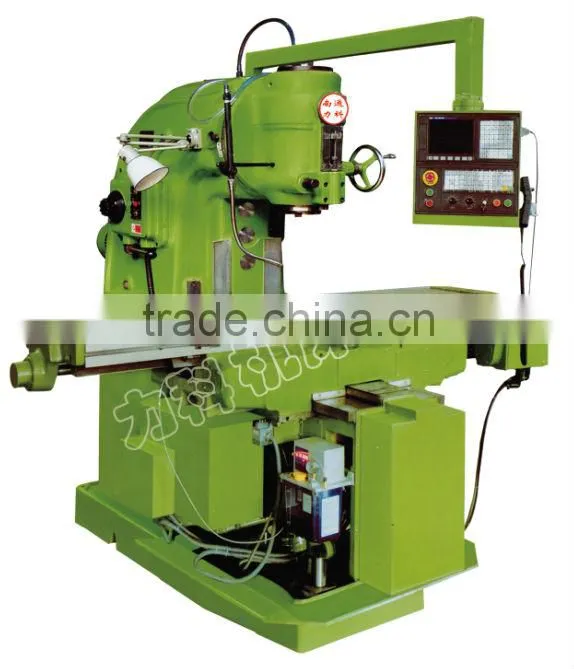

XK5040 cnc milling machine

Items		Units	XK5040
Table	Table size	mm	400x1700/2000
	No.of T-slots		3
	Width of T-slots	mm	18
	Max load	kg	800/750
Travel	Longitudinal travel(manual/auto)	mm	900/1200
	Cross travel(manual/auto)	mm	315
	Vertical travel(manual/auto)	mm	385
Accuracy of worktable	Position accuracy of worktable	mm	0.035/0.045
Accuracy of worktable	Repeat position accuracy of worktable	mm	0.025/0.035
Spindle	Spindle taper		7:24(ISO NO.50)
	Spindle bore diameter	mm	29
	Spindle travel	mm	85
	Max. angle of vertical milling head	deg	±45
	Distance between spindle nose and table surface(Min./Max.)	mm	30/500
	Distance from vertical guidway to spindle centerline	mm	450
	Spindle speed range	r/min	30-1500
	Spindle speed step	steps	18
Feedrates	Feed rate of axis x	mm/min	6-3500
	Feed rate of axis y	mm/min	6-3500
	Feed rate of axis z	mm/min	6-1800
Motor	Power capacity	KVA	25
	Power of main motor	KW	11
	Main motor rotate speed	r/min	1450
	Longitudinal feed motor power	KW	1.6
	Transverse feed motor power	KW	1.6
	Vertical feed motor power	KW	4.5
	Power of coolant pump motor	KW	0.125
	coolant pump output flow	L/min	18
Others	Power source requirement		380V+10%,50HZ+1HZ
	Overall dimensions(LxWxH)	mm	2600X2600X2400
	Net weight	kg	4250
	Dimentions of control cabinet(LxWxH)	mm	450X420X1200
	Dimentions of maneuvering box(LxWxH)	mm	450X420X280
	Weight of maneuvering box	kg	30

Company Brief Nantong Lecroy Machine Tool Manufacturing Co,.Ltd specializes in machine tool research and development, design, manufacturer and sales. We have a long history to produce precision machine tool.
Assembly shop of vertical machining center We follow strict assembly technique after we check each parts are eligible.
Assembly shop Strict quality management. Professional QC to ensure accuracy.
Warehouse
Casting
The main parts gear
