Home > Manufacturing & Processing Machinery > Machine Tools > Milling Machine > X63W-400x2000 Knee Type Mill Machine

X63W-400x2000 Knee Type Mill Machine

Name: X63W-400x2000 Knee Type Mill Machine
Brand: lecroy
SKU: 118953997
Availability: InStock

Nantong Lecroy Machine Tool Manufacturing Co., Ltd.

X63W-400x2000 Knee Type Mill Machine thumbnail-1

X63W-400x2000 Knee Type Mill Machine photo-1

US$ 10,000 - 20,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Jiangsu, China

Brand Name:

lecroy

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Jiangsu, China

Brand Name lecroy

Model Number X63W-400x2000 knee type mill machine

Type Horizontal

CNC or Not Normal

Voltage 380V or cutomized

Power(W) 14125w

Dimension(L*W*H) 1780*1480*2250

Weight 3850kg

Certification ISO 9001

Warranty 1year

After-sales Service Provided Overseas third-party support available

Specifications

1.SIEMENS feed motor
2.Low noise / variable speed
3.High rigidity and stability casting body
4.Perfect lubricate system

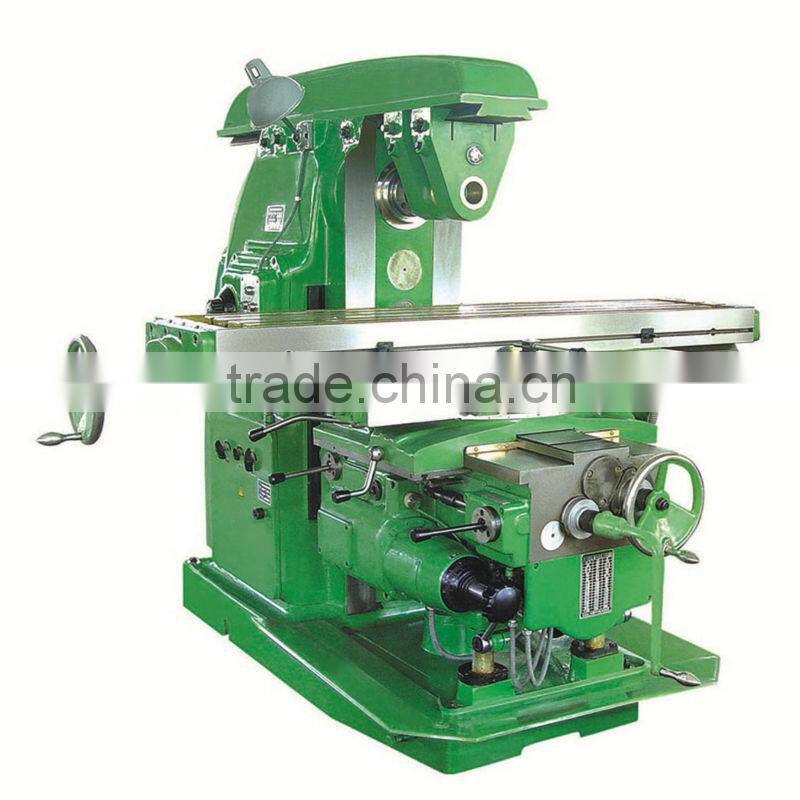

1.The photo of machine( X63W-400x2000 knee type mill machine )

2.The specifications of machine

Item		Units	x6140
Table	Table size	mm	400x1700/2000/2200
	No.of T-slots		3
	Width of T-slots	mm	18
	Max load	kg	800
	Distance between T-slots	mm	90
Travel	Longitudinal travel(manual/auto)	mm	900/880,1200/1180,1380/1360
	Cross travel(manual/auto)	mm	315/300
	Vertical travel(manual/auto)	mm	380/360
Spindle	Spindle taper		7:24(ISO NO.50)
	Spindle bore diameter	mm	29
	Spindle speed range	r/min	30-1500
	Spindle speed step	steps	18
	Axial mootion	mm	85
	Max.swivel angle of spindle		±45
	Distance from spindle nose and table surface min/max.	mm	255/570
	Distance from centre line of spindle to vertical guideway surface of column	mm	30/410
Feedrate	Cutting feed rate	mm/min	X:23.5-1180,Y:15-786,Z:8-394
	Rapid feed rate	mm/min	X:2300,Y:2300,Z:770
	NO. of feed	mm	18
Motor	Power of spindle motor	kw	11
Motor	Power of feed motor	kw	3
Others	Overall dimensions(LxWxH)	mm	2556X2159X1830
Others	Net weight	kg	3850

3.Accessories of machine

Standard Accessories:

wrenches,drawbar,foundation bolts,nuts,washers,oil gun, lump ,mill cutter arbors

Optional Accessories (charge separately):

deviding head, DRO(for two axis or three axis),machine vise,rotary table,mill chuck,boring cutter holder,facing cutter,vertical mill cutter,etc.

4.Maching equipment

5.Why choose us?

We are the MANUFACTURER of high quality milling machine with competitive price!

Such as vertical milling machine X5040/X5032, universal horizontal milling machine X6140/X6132,radial milling machine X6330, etc.

The sales performance, satisfied accessories, longtime work team experience,stability & durability of the machines are our best selling points!

6.Company Profile:

Nontong Lecroy Machine Tool Manufacture Co., Ltd., specializes in machine tool research and development design, manufacture and sales, with many years of production history of precision machine tool.

As "X53K milling machine professional manufacturer",the company has experienced engineering andtechnical staff and production workers.and more than 12000 square meters of workshop, we inherit and carry foward the traditional manufacturing technology with a large number of high level and precision machining equipment, perfect quality assurance system and complete testing facilities.

We professionally produce X5040(X53K), X5032(X52K) vertical knee type milling machine,X6140(X63W),X6132(X62W) series of unversal milling machine, X6325,X6330,X6332 rocker unversal milling machine etc. and we always devotes to development of new products to meet the various needs of customers!

With business philosophy of "excellent quality,customer first,integrity-oriented".we supply high quality machines to more and more customers,we will spare no efforts to pay you back with excellent quality, competitive price and quick aftersale service for your attention and support!
