Help CenterBuilding Material Aluminum Foil Insulation Roll Made in China
Related Products
-
Fire Proof Aluminum Foil Roll Made in ChinaNegotiableMOQ: 20 Rolls -
Aluminum Foil for Flexible Duct Made in ChinaNegotiableMOQ: 20 Rolls
-
Non-flammable Adhesive TapesNegotiableMOQ: 20 Rolls
-
Non-flammable Aluminum Foil Made in ChinaNegotiableMOQ: 20 Rolls
-
Water Proof Aluminum LeafNegotiableMOQ: 20 Rolls
Specifications
Aluminum foil1. Roll width: 1.0, 1.2, 1.25, 1.30m
2. Roll length: 60, 120, 300, 500, 1600, 2750m
Aluminum foil
Specification
a) Foil: 7μm
b) 2-way scrim: 12.5 x 12.5mm space
c) Polyethylene
d) Kraft: 50gsm, natural
2. FSK716B:
a) Foil: 7μm
b) 2-way scrim: 12.5 x 12.5mm space
c) Polyethylene
d) Kraft: 60gsm, natural 3.
Roll width: 1.0, 1.2, 1.25, 1.30m 4.
Roll length: 60, 120, 300, 500, 1600, 2750m
Technical Parameters
Physical Properties |
Test Method |
Values (English) |
Values(Metric) |
Basis Weight |
Scale |
25.5lbs/1000 ft2 |
125g/m2 |
Tensile Strength |
GB/T12914-1991 |
22.5lbs/inch(MD) |
3.79 kn/m(MD) |
13.9lbs/inch(XD) |
2.31 kn/m(XD) |
||
Bursting Strength |
GB/T454-2002 |
36 lbs/psi |
248 kpa |
Water-resistant |
23 °C 24h |
No phenomenon of layered |
No phenomenon of layered |
Low-temperature resistant |
-40 °C 1h |
No phenomenon of layered |
No phenomenon of layered |
High temperature resistant |
116 °C 4h |
No leakage phenomenon |
No leakage phenomenon |
Thickness |
Micrometer |
0.0058 inch |
150 micron |
Application
POWER aluminum foil insulation are mainly used as facing for glass wool insulation, rock wool, mineral wool and so on. Also used under roof decking, under attic rafters, over existing attic thermal insulation, in floors, walls and crawl spaces, and in industrial and commercial buildings to block radiant heat coming into house through the roof during the summer and retain indoor heat generated during in winter. Reinforced with Tri-way fiberglass scrim also used as a moisture vapor barrier in air conditioning ductworks and cold rooms.
Features
1) With high tensile strength and bursting strength 2) Used as jacket facing for glass wool, rock wool, PU foam and other insulation to protect them against vapor moisture, in order to work more effectively
Packing
60m roll: plastic shrinking sleeve 120, 300, 500m rolls: Kraft cardboard 1600, 2750m jumbo rolls: corrugated board + ply-wooden pallet.

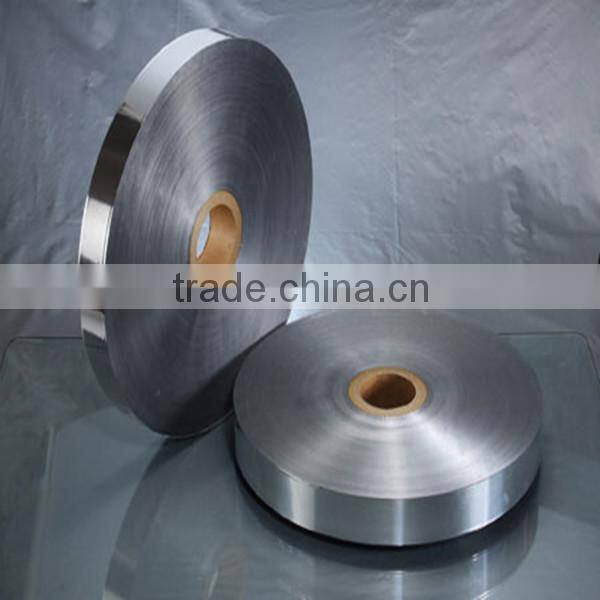

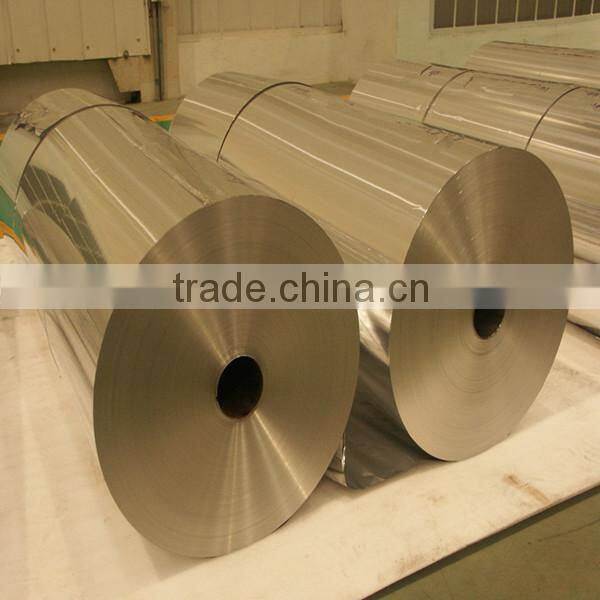

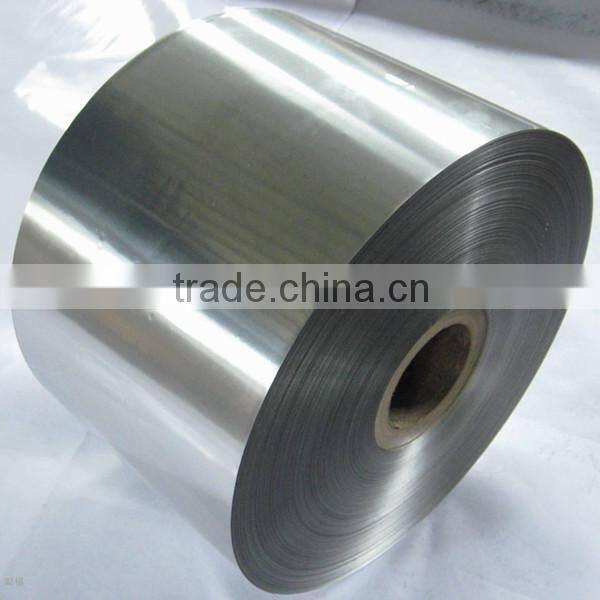

Product picture
We welcome to visit our factory any time!!
