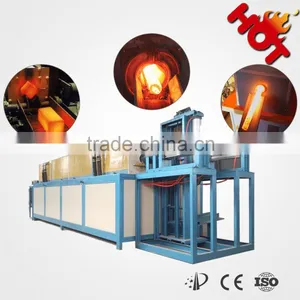

Induction Hot Forging Machine
US$ 8,000 - 400,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
Superb
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Metal Induction Heating MachineUS$ 8,000 - 400,000MOQ: 1 Set -
Magnetic Induction Heater From Factory Low PriceUS$ 8,000 - 400,000MOQ: 1 Set
-
Automatic Induction Heating Furnace for Metal ForgingUS$ 8,000 - 400,000MOQ: 1 Set
-
2016 New Automatic Electric Induction Heating EquipmentUS$ 2,000 - 20,000MOQ: 1 Set
-
Automatic Small Electric Saver Induction Heating MachineUS$ 8,000 - 50,000MOQ: 1 Set
Condition
New
Place of Origin
Zhejiang, China
Brand Name
Superb
Model Number
GTR-series
Voltage
3 Phase 380V 50/60Hz
Power(W)
50-1000KW
Dimension(L*W*H)
Customized
Weight
Customized
Certification
ISO9001:2000
Warranty
12 Months
After-sales Service Provided
Engineers available to service machinery overseas
Product Description
Introduction

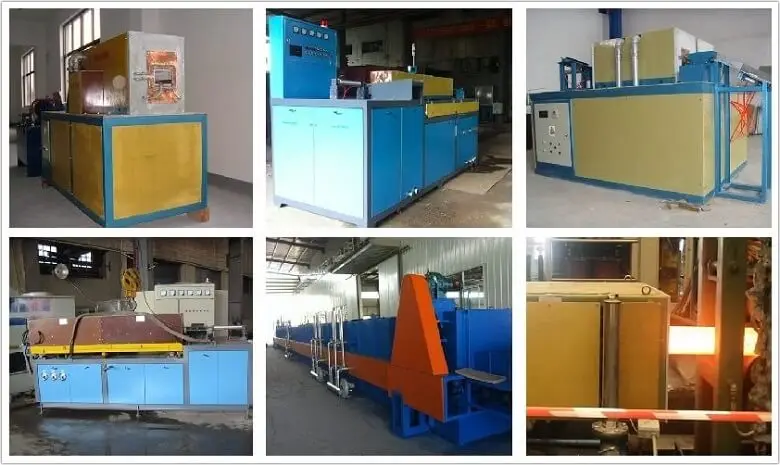

Induction Heating Machine
1. Induction preheat furnace for billet
2. Provide a full set of production line
3. Heating fast
4. Suit for billet size from 60x60mm to 150x150mm
Induction Heating Machine
Features
Long steel billet induction heating machine for rolling mill
1. Temperature ability: 1 and the whole billet heated to 1100 ℃;
2. The mean temperature ability: through the induction heating furnace, ensure the temperature of the billet heating uniformity is better than before the state of nature;
3. Intermediate frequency power supply
A) according to the technical index, increased within 1 minute from 800 ℃ to 1100 ℃, the heating power required to take the whole of 5700 kw.
B) the power consumption theoretical calculation of tons of billet is 38 degrees (such as heating, 200 degrees Celsius, tons of billet power consumption is 25 degrees)
1. Temperature ability: 1 and the whole billet heated to 1100 ℃;
2. The mean temperature ability: through the induction heating furnace, ensure the temperature of the billet heating uniformity is better than before the state of nature;
3. Intermediate frequency power supply
A) according to the technical index, increased within 1 minute from 800 ℃ to 1100 ℃, the heating power required to take the whole of 5700 kw.
B) the power consumption theoretical calculation of tons of billet is 38 degrees (such as heating, 200 degrees Celsius, tons of billet power consumption is 25 degrees)

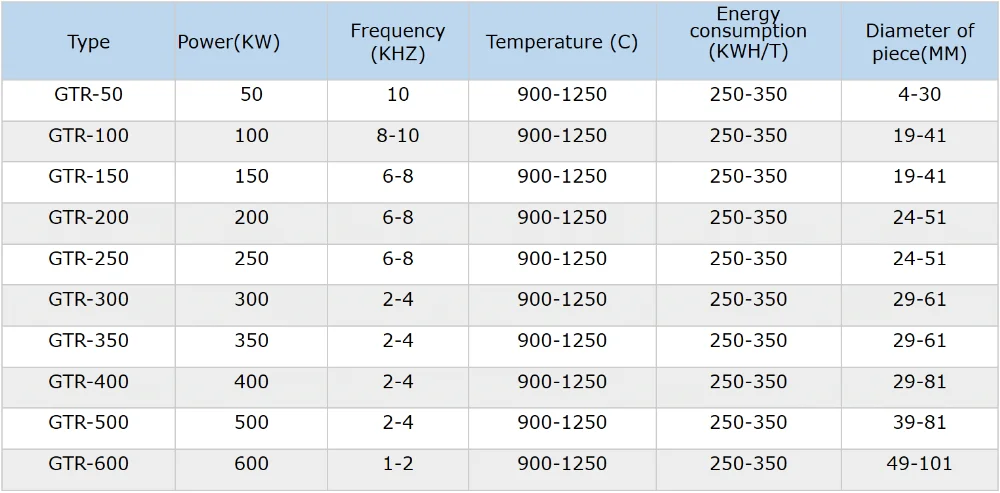

Parameters
Quality Assurance
How we control the quality

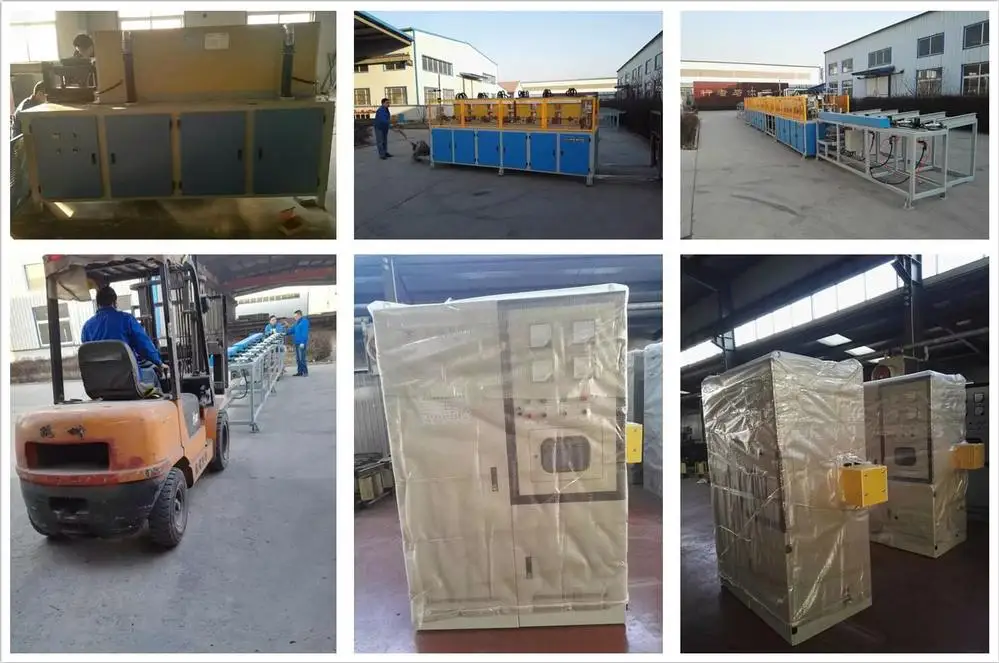

Packaging & Shipping
FAQ
1. What is your advantage to choose Superb melting system?
As one of top suppliers in the induction field over 15 years,the machine’s stability and efficiency is warrantied.The confidence is from our superb technical engineers team.There are some doctors graduated from Zhejiang university which is the origin of induction technology in China.
2. If our machine meets fault, how could you help us to solve it?
The detailed fault description and photos should be informed to us.Our engineer will judge which part meets trouble,then provide advise and accessories list you need. The spare parts will be sug-gested to purchase by our sales manager for ensuring minimum downtime. If some problems can not be solved through communication, the engineer will be dispatched to debug onsite according to your requirement.
3. what is your warranty?
Our all machines’ standard warranty is 12 months from the date of signing the turning over docu-ment after commission.
As one of top suppliers in the induction field over 15 years,the machine’s stability and efficiency is warrantied.The confidence is from our superb technical engineers team.There are some doctors graduated from Zhejiang university which is the origin of induction technology in China.
2. If our machine meets fault, how could you help us to solve it?
The detailed fault description and photos should be informed to us.Our engineer will judge which part meets trouble,then provide advise and accessories list you need. The spare parts will be sug-gested to purchase by our sales manager for ensuring minimum downtime. If some problems can not be solved through communication, the engineer will be dispatched to debug onsite according to your requirement.
3. what is your warranty?
Our all machines’ standard warranty is 12 months from the date of signing the turning over docu-ment after commission.
Please link our website: to get more useful information
Skype : kelvinlinxm
Cell phone : 0086-18857719978
We can provide customized service for you, leave an inquiry now!
Skype : kelvinlinxm
Cell phone : 0086-18857719978
We can provide customized service for you, leave an inquiry now!
