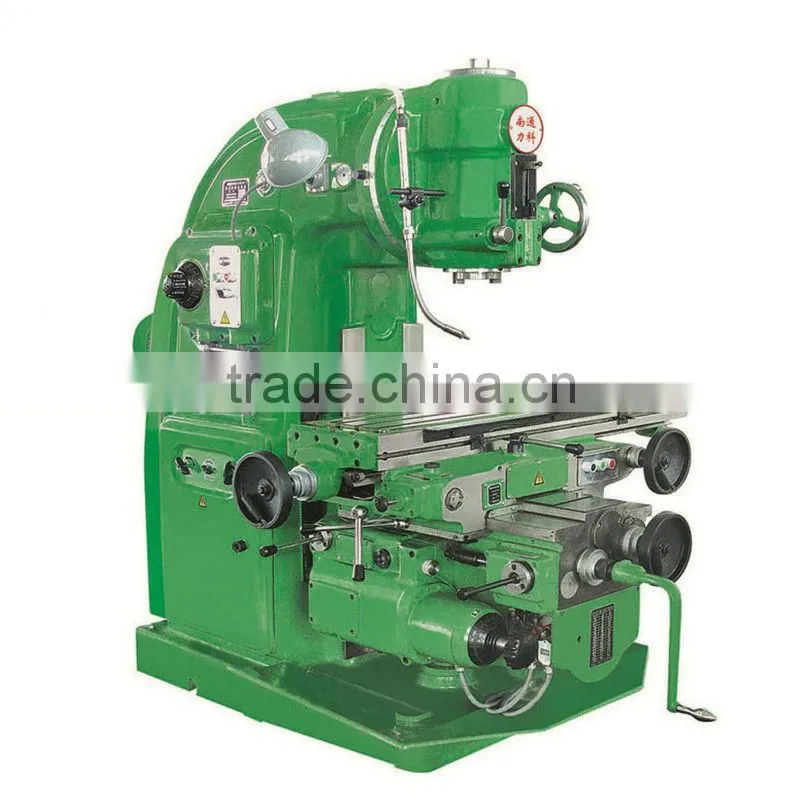

X5032 7.5kw spindle motor metal processing milling machine
- 100 Set / Sets per Month
- shanghai
- T/T
- Benchtop CNC Mill, desktop cnc mill, Compact CNC, educational cnc, prototype cnc, cnc for school, training cnc
- CNC Milling Machines,Mini CNC Milling Machines,DIY CNC Milling Machines,Hobby CNC Milling,DIY milling
- Small CNC Milling Machine for School, Hobbist,Prototype,DIY
- YORNEW Desktop CNC Lathe Machine, education cnc, vocation cnc, hobby cnc, diy cnc
- Industrial 4.0 intelligent manufacturing production line, FMS, CIM, training system
- Industrial 4.0 intelligent manufacturing production line, FMS, CIM, training system
Product Details
Condition: | New | Place of Origin: | Jiangsu, China | Brand Name: | Lecroy |
Model Number: | X5032 7.5kw spindle motor metal processing milling machine | Type: | Vertical | CNC or Not: | Normal |
Voltage: | 380v or customized | Power(W): | 9825w | Dimension(L*W*H): | 2295*1770*2094 |
Weight: | 2800KG | Certification: | ISO9001 | Warranty: | 1year |
After-sales Service Provided: | Overseas third-party support available |
Product Description
Specifications
1.SIMENS feed motor2.Low noise / variable speed
3.High rigidity and stability casting body
4.Perfect lubricate system
Product Name : 7.5kw spindle motor metal processing milling machine x5032
Specifications:
Item | Units | X5032 | |
Table | Table size | mm | 320*1325/1600 |
No.of T-slots | 3 | ||
Width of T-slots | mm | 18 | |
Max load | kg | 500 | |
Distance between T-slots | mm | 70 | |
Travel | Longitudinal travel(manual/auto) | mm | 700/680,980/960 |
Cross travel(manual/auto) | mm | 255/240 | |
Vertical travel(manual/auto) | mm | 370/350 | |
Spindle | Spindle taper | 7:24(ISO NO.50) | |
Spindle bore diameter | mm | 29 | |
Spindle speed range | r/min | 30-1500 | |
Spindle speed step | steps | 18 | |
Axial mootion | mm | 85 | |
Max.swivel angle of spindle | ±45 | ||
Distance from spindle nose and table surface min/max. | mm | 45/415 | |
Distance from centre line of spindle to vertical guideway surface of column | mm | 350 | |
Feedrate | Cutting feed rate | mm/min | X:23.5-1180,Y:23.5-1180,Z:8-394 |
Rapid feed rate | mm/min | X:2300,Y:2300,Z:770 | |
NO. of feed | mm | 18 | |
Motor | Power of spindle motor | kw | 7.5 |
Power of feed motor | kw | 2.2 | |
Others | Overall dimensions(LxWxH) | mm | 2295X1770X2094 |
Net weight | kg | 2800 |
STANDARD ACCESSORIES:
wrenches,drawbar,sleeves,morse taper intermediate sleeve,
foundation bolts ,nuts,washers,oil gun, lump ,springs, brush core
OPTIONAL ACCESSORIES(charge separately):
deviding head, DRO(for two axis or three axis), machine vise,rotary table,milling chuck,
boring cutter holder,facing cutter,vertical mill cutter,etc.
WHY CHOOSE US?
We are the MANUFACTURER of high quality milling machine with competitive price!
Such as vertical milling machine X5040/X5032, universal horizontal milling machine
X6140/X6132,radial milling machine X6330, etc.
The sales performance, satisfied accessories,longtime work team experience,
stability & durability of the machines are our best selling points!
Company Brief Nantong Lecroy Machine Tool Manufacturing Co,.Ltd specializes in machine tool research and development, design, manufacturer and sales. We have a long history to produce precision machine tool. | |
Assembly shop of vertical machining center We follow strict assembly technique after we check each parts are eligible. | |
Assembly shop
| |
Warehouse | |
Casting
| |
The main parts gear
|
