High Precision 3 Axis DRO Universal Metal Processing Mill Machine

Name: High Precision 3 Axis DRO Universal Metal Processing Mill Machine
Brand: Lecroy
SKU: 118952071
Availability: InStock

US$ 10,000 - 20,000 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Jiangsu, China

Brand Name:

Lecroy

Nantong Lecroy Machine Tool Manufacturing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Jiangsu, China

Brand Name Lecroy

Model Number X5032 high precision 3 axis DRO universal metal processing millmachine

Type Vertical

CNC or Not Normal

Voltage customized

Power(W) 9825

Dimension(L*W*H) 2295*1770*2094

Weight 2800KG

Certification ISO9001

Warranty 1year

After-sales Service Provided Overseas third-party support available

Specifications

1.SIMENS feed motor
2.Low noise / variable speed
3.High rigidity and stability casting body
4.Perfect lubricate system

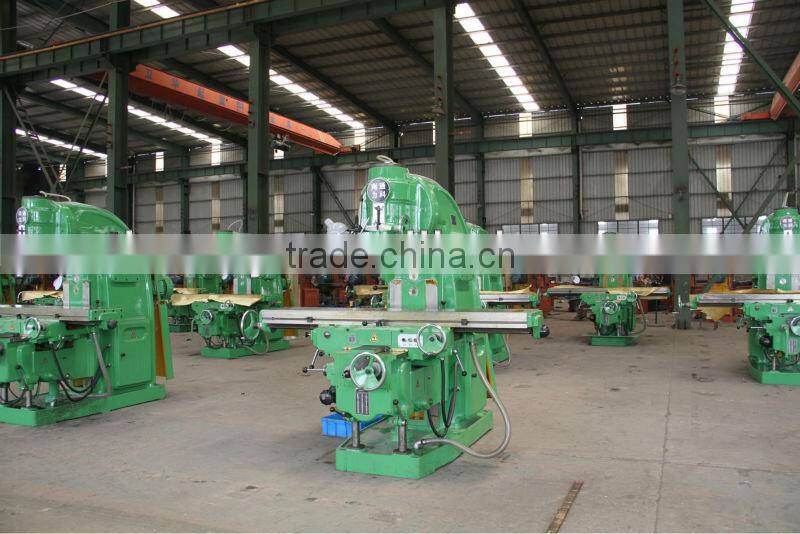

High precision 3 axis DRO universal metal processing mill machine

Item		Units	X5032
Table	Table size	mm	320*1325/1600
	No.of T-slots		3
	Width of T-slots	mm	18
	Max load	kg	500
	Distance between T-slots	mm	70
Travel	Longitudinal travel(manual/auto)	mm	700/680,980/960
	Cross travel(manual/auto)	mm	255/240
	Vertical travel(manual/auto)	mm	370/350
Spindle	Spindle taper		7:24(ISO NO.50)
	Spindle bore diameter	mm	29
	Spindle speed range	r/min	30-1500
	Spindle speed step	steps	18
	Axial mootion	mm	85
	Max.swivel angle of spindle		±45
	Distance from spindle nose and table surface min/max.	mm	45/415
	Distance from centre line of spindle to vertical guideway surface of column	mm	350
Feedrate	Cutting feed rate	mm/min	X:23.5-1180,Y:23.5-1180,Z:8-394
	Rapid feed rate	mm/min	X:2300,Y:2300,Z:770
	NO. of feed	mm	18
Motor	Power of spindle motor	kw	7.5
Motor	Power of feed motor	kw	2.2
Others	Overall dimensions(LxWxH)	mm	2295X1770X2094
Others	Net weight	kg	2800

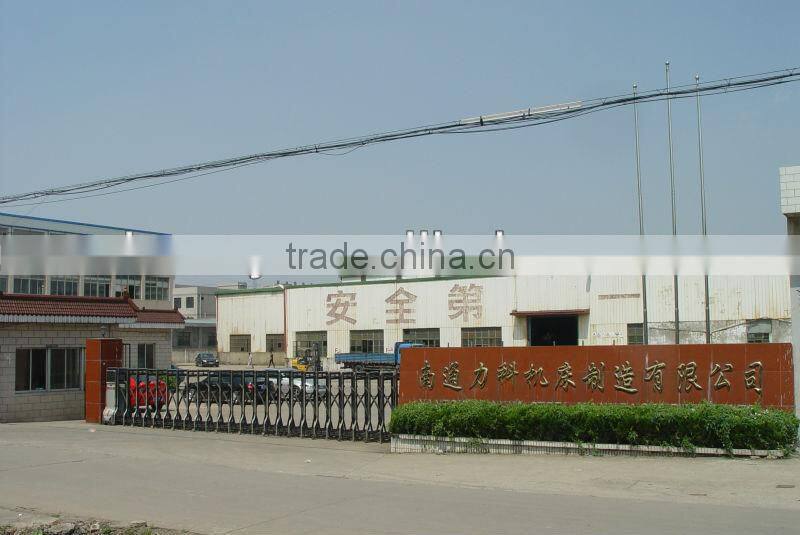

Company Brief Nantong Lecroy Machine Tool Manufacturing Co,.Ltd specializes in machine tool research and development, design, manufacturer and sales. We have a long history to produce precision machine tool.
Assembly shop of vertical machining center We follow strict assembly technique after we check each parts are eligible.
Assembly shop
Warehouse
Casting
The main parts gear
