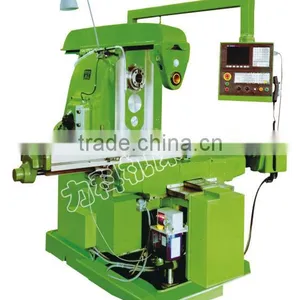

New Metal Machining FANUC/SIMENS/GSK Cnc Machinery

Name: New Metal Machining FANUC/SIMENS/GSK Cnc Machinery
Brand: lecroy
SKU: 118950573
Availability: InStock

US$ 10,000 - 40,000 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Jiangsu, China

Brand Name:

lecroy

Nantong Lecroy Machine Tool Manufacturing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Jiangsu, China

Brand Name lecroy

Model Number Xk6140 new metal machining FANUC/SIMENS/GSK cnc machinery

Type Horizontal

CNC or Not Normal

Voltage cutomized

Power(W) 18825

Dimension(L*W*H) 2556*2159*1830

Weight 3900KG

Certification ISO9001

Warranty 1year

After-sales Service Provided Overseas third-party support available

Specifications

1.Easy operate/low noise / variable speed
2.High rigidity and stability casting body
3.Perfect lubricate system
4.ISO9001

New metal machining FANUC/SIMENS/GSK cnc machinery

Item		Units	XK6040
Table	Table size	mm	400x1700/2000
	No.of T-slots		3
	Width of T-slots	mm	18
	Max load	kg	800
Travel	Longitudinal travel(manual/auto)	mm	900/1200
	Cross travel(manual/auto)	mm	315
	Vertical travel(manual/auto)	mm	385
Accuracy of worktable	Position accuracy of worktable	mm	0.035/0.045
Accuracy of worktable	Repeat position accuracy of worktable	mm	0.025/0.035
Spindle	Spindle taper		7:24(ISO NO.50)
	Spindle bore diameter	mm	29
	Spindle travel	mm	85
	Distance between spindle centerline and table surface(Min./Max.)	mm	30/570
	Spindle speed step	steps	18
	Spindle speed range	r/min	30-1500
Feedrate	Feed rate of axis x	mm/min	6-3500
	Feed rate of axis y	mm/min	6-3500
	Feed rate of axis z	mm/min	6-1800
Motor	Power capacity	KVA	25
	Power of main motor	KW	11
	Main motor rotate speed	r/min	1450
	Longitudinal feed motor power	KW	1.6
	Transverse feed motor power	KW	1.6
	Vertical feed motor power	KW	4.5
	Power of coolant pump motor	KW	0.125
	coolant pump output flow	L/min	18
Others	Power source requirement		380V+10%,50HZ+1HZ
	Overall dimensions(LxWxH)	mm	2600X2600X2400
	Net weight	kg	3900
	Dimentions of control cabinet(LxWxH)	mm	450X420X1200
	Dimentions of maneuvering box(LxWxH)	mm	450X420X280
	Weight of maneuvering box	kg	30

Company Brief Nantong Lecroy Machine Tool Manufacturing Co,.Ltd specializes in machine tool research and development, design, manufacturer and sales. We have a long history to produce precision machine tool.
Assembly shop of vertical machining center We follow strict assembly technique after we check each parts are eligible.
Assembly shop
Warehouse
Casting
The main parts gear
