Universal cnc metal machining milling machine
- 100 Set / Sets per Month
- SHANGHAI
- T/T
- Benchtop CNC Mill, desktop cnc mill, Compact CNC, educational cnc, prototype cnc, cnc for school, training cnc
- CNC Milling Machines,Mini CNC Milling Machines,DIY CNC Milling Machines,Hobby CNC Milling,DIY milling
- Small CNC Milling Machine for School, Hobbist,Prototype,DIY
- YORNEW Desktop CNC Lathe Machine, education cnc, vocation cnc, hobby cnc, diy cnc
- Industrial 4.0 intelligent manufacturing production line, FMS, CIM, training system
- Industrial 4.0 intelligent manufacturing production line, FMS, CIM, training system
Product Details
Condition: | New | Place of Origin: | Jiangsu, China | Brand Name: | lecroy |
Model Number: | Xk6140 Universal cnc metal machining milling machine | Type: | Horizontal | CNC or Not: | Normal |
Voltage: | cutomized | Power(W): | 18825 | Dimension(L*W*H): | 2556*2159*1830 |
Weight: | 3900KG | Certification: | ISO9001 | Warranty: | 1year |
After-sales Service Provided: | Overseas third-party support available |
Product Description
Specifications
1.Easy operate/low noise / variable speed2.High rigidity and stability casting body
3.Perfect lubricate system
4.ISO9001
PRODUCT NAME:Universal cnc metal machining milling machine
SPECIFICATIONS:
Item | Units | XK6040 | |
Table | Table size | mm | 400x1700/2000 |
No.of T-slots | 3 | ||
Width of T-slots | mm | 18 | |
Max load | kg | 800 | |
Travel | Longitudinal travel(manual/auto) | mm | 900/1200 |
Cross travel(manual/auto) | mm | 315 | |
Vertical travel(manual/auto) | mm | 385 | |
Accuracy of worktable | Position accuracy of worktable | mm | 0.035/0.045 |
Repeat position accuracy of worktable | mm | 0.025/0.035 | |
Spindle | Spindle taper | 7:24(ISO NO.50) | |
Spindle bore diameter | mm | 29 | |
Spindle travel | mm | 85 | |
Distance between spindle centerline and table surface(Min./Max.) | mm | 30/570 | |
Spindle speed step | steps | 18 | |
Spindle speed range | r/min | 30-1500 | |
Feedrate | Feed rate of axis x | mm/min | 6-3500 |
Feed rate of axis y | mm/min | 6-3500 | |
Feed rate of axis z | mm/min | 6-1800 | |
Motor | Power capacity | KVA | 25 |
Power of main motor | KW | 11 | |
Main motor rotate speed | r/min | 1450 | |
Longitudinal feed motor power | KW | 1.6 | |
Transverse feed motor power | KW | 1.6 | |
Vertical feed motor power | KW | 4.5 | |
Power of coolant pump motor | KW | 0.125 | |
coolant pump output flow | L/min | 18 | |
Others | Power source requirement | 380V+10%,50HZ+1HZ | |
Overall dimensions(LxWxH) | mm | 2600X2600X2400 | |
Net weight | kg | 3900 | |
Dimentions of control cabinet(LxWxH) | mm | 450X420X1200 | |
Dimentions of maneuvering box(LxWxH) | mm | 450X420X280 | |
Weight of maneuvering box | kg | 30 |
STANDARD ACCESSORIES: wrenches,sleeves,morse taper intermediate sleeve,end mill arbor,spanner for end mill arbor,drawbar, oil gun, lump,cooling device(in the machine),RS232 communication cable
OPTIONAL ACCESSORIES(charge separately): machine vise,milling chuck,boring chuck,facing cutter,vertical mill cutter,etc .
WHY CHOOSE US?
We are the MANUFACTURER of high quality milling machine with competitive price!
Such as vertical milling machine X5040/X5032, universal horizontal milling machine X6140/X6132,radial milling machine X6330, etc.
The sales performance, satisfied accessories,longtime work team experience, stability & durability of the machines are our best selling points!
|
Company Brief Nantong Lecroy Machine Tool Manufacturing Co,.Ltd specializes in machine tool research and development, design, manufacturer and sales. We have a long history to produce precision machine tool. | |
Assembly shop of vertical machining center We follow strict assembly technique after we check each parts are eligible. | |

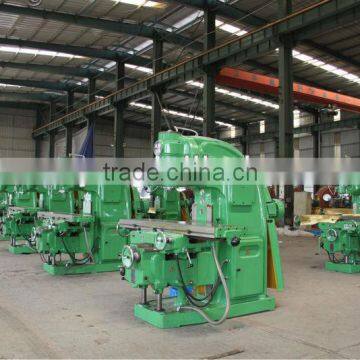

Assembly shop
| |
Warehouse | |
Casting
| |
The main parts gear
|
