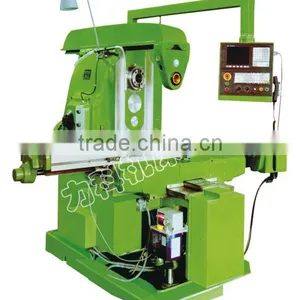

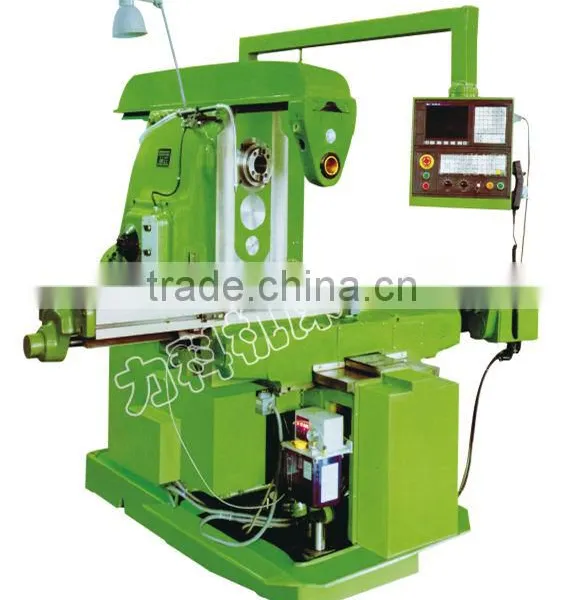

Hotsale FANUC SIMENS GSK CONTROLLER Cnc Machinery

Name: Hotsale FANUC SIMENS GSK CONTROLLER Cnc Machinery
Brand: lecroy
SKU: 118950205
Availability: InStock

US$ 1,000 - 100,000 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Jiangsu, China

Brand Name:

lecroy

Nantong Lecroy Machine Tool Manufacturing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Jiangsu, China

Brand Name lecroy

Model Number xk6140 hotsale FANUC SIMENS GSK CONTROLLER cnc machinery

Type Horizontal

CNC or Not CNC

Voltage customized

Dimension(L*W*H) 2600X2600X2400mm

Weight 3900kg

Warranty one year

Hotsale FANUC SIMENS GSK CONTROLLER cnc machinery

	Units	XK6140
Table size	mm	400x1700
No.of T-slots		3
Width of T-slots	mm	18
Max load	kg	800
Longitudinal travel(manual/auto)	mm	900
Cross travel(manual/auto)	mm	315
Vertical travel(manual/auto)	mm	385
Position accuracy of worktable	mm	0.035
Repeat position accuracy of worktable	mm	0.025
Spindle taper		7:24(ISO NO.50)
Spindle bore diameter	mm	29
Spindle travel	mm	85
Distance between spindle centerline and table surface(Min./Max.)	mm	30/570
Spindle speed step	steps	18
Spindle speed range	r/min	30-1500
Feed rate of axis x	mm/min	6-3500
Feed rate of axis y	mm/min	6-3500
Feed rate of axis z	mm/min	6-1800
Power capacity	KVA	25
Power of main motor	KW	11
Main motor rotate speed	r/min	1450
Longitudinal feed motor power	KW	1.6
Transverse feed motor power	KW	1.6
Vertical feed motor power	KW	4.5
Power of coolant pump motor	KW	0.125
coolant pump output flow	L/min	18
Power source requirement		380V+10%,50HZ+1HZ
Overall dimensions(LxWxH)	mm	2600X2600X2400
Net weight	kg	3900
Dimentions of control cabinet(LxWxH)	mm	450X420X1200
Dimentions of maneuvering box(LxWxH)	mm	450X420X280
Weight of maneuvering box	kg	30

Company Brief Nantong Lecroy Machine Tool Manufacturing Co,.Ltd specializes in machine tool research and development, design, manufacturer and sales. We have a long history to produce precision machine tool.
Assembly shop of vertical machining center We follow strict assembly technique after we check each parts are eligible.
Assembly shop Strict quality management. Professional QC to ensure accuracy.
Warehouse
Casting
The main parts gear
