Energy saving 20W LED CORN LIGHT 360 DEGREE LIGHTING DISTRIBUTION E26 E27 E39 E40 bulb
- As the world's first new products ,LED big bulb could displace the compact Traditional CFL light.
- Unique structure, wide-angled(360°) ,Wide range of Irradiated Area.
- Smart heat dispersion structure(patent design).
- Offer the well mixed facular , without the shadow result, long operating life and low lumens depreciation .
- Various lamp holder are available , a wide range of applications.(E39/E40, E26/E27)
- 6. Wide voltage AC90-300V.
- 7. Using Fans for better cooling
- 8. Using Fan protection circuit,when fans could not work, the power of whole lamp will be reduced 50% to ensure the safety of the lamps.
- 9. Meet theTUV- CE standard
LED CORN LIGHT SPECIFICATIONS (Tested at 20℃)
Model No. |
HS-JN01-020 |
||
OPTICAL |
LED |
Sumsung 5630-0.5W/40PCS |
Epistar 2835-0.5W/64PCS |
Output lumen Φ (lm) |
1800 |
2000 |
|
efficiency(Lm/W) |
90 |
100 |
|
CCT(K) |
Warm white, natural white |
||
CRI (Ra) |
>80 |
>80 |
|
Optics |
360 degree |
||
Lighting decay |
1000hrs <1% |
||
lifetime (Hrs) |
>35000 |
||
Electronics |
Input volt(V) |
AC 90 ~ 305 |
|
Frequency(Hz) |
50/60 Hz |
||
Input current (mA) |
110V:182 220V:91 |
||
Output power(W) |
20±2W |
||
Power factor(PF) |
0.92 |
||
Starting time (S) |
<0.5 S |
||
Surge volt.(V) |
3750V |
||
Physical |
Materials |
Aluminum +PC |
|

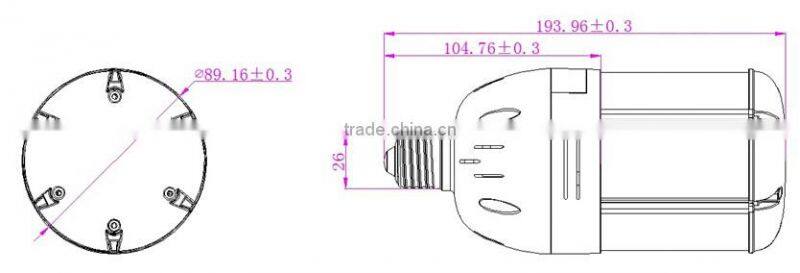

Product size(mm) |
E26: Φ90*193mm E39:Φ90*216mm |
||
Net weight (kg) |
0.67 |
||
Ingress protection (IP) |
IP34 |
||
General |
Working tempt. |
-25℃ ~ 45℃,10% ~ 90% R.H. |
|
Storage tempt. |
-40℃ ~ 85℃,0% ~ 95% R.H. |
||
Certificate |
ETL,TUV-CE |
||
Environmental compliance |
ROHS |
||
PACKING
|
Lenght(L) |
Width(W) |
Height(H) |
Gross Weight(Kg) |
Inner Box |
100mm |
100mm |
255mm |
0.572 |
Outer Box |
515mm |
415mm |
275mm |
12.5 |
APPLICATONS:
Established in 2004, Sichuan Sunfor Light Co., Ltd is a high-tech enterprise dedicated to advanced research and development in LED lighting technologies and rare earth illuminous materials, is a leading company of enterprise spearheads the transition from “ Made in China” to “ Innovated in China”
Equipped with two research and development centers in Semiconductor lighting and rare-earth luminescent materials respectively, up to June 2015, Sunfor Light possess more than 900 international and domestic patented techbologies, including over 120 covered by the patent cooperation Treaty (PCT). Sunfor products have been certified by CQC, UL, CE, RoHS and LM-80, etc.
Sunfor ACLED technology is an worldwide inventing patent, In June 2013, 10 academicians from Chinese Academy of Science (CAS) unanimously agreed that Sunfor’s unique method of using its proprietary rare earth LED luminescent materials, with controllable afterglow life to match up with frequencies of varying alternative currents (ACs) to significantly reduce the stroboscopic effects produced by with LEDs directly driven by ACs can effectively solve the vexing flickering problem beleaguering the LED lighting industry. And, by doing so, Sunfor becomes the world’s first and only company able to produce AC-LED lighting products with low stroboscopic flickers based on rare-earth luminescent phosphors. And this is why ACLED lights are Sunfor core products.
Job references- LED lights
Domestic market : National Grand Theater, Beijing Airport Terminal 3, Beijing Olympic Games, Shanghai Expo, Yili Group, Mengniu Dairy, Metro system in Shenzhen, Guangzhou, Beijing Shanghai and Chengdu, street lights in Changchun, Jilin,Shutong Industrial Park in Nantong, Jiangsu, and Yibin Sichuan,ect.
Oversea market : Starbucks and HSBC Bank in Brazil, hospitals and schools in Barcelona, Spain.
Intelligent and leading
Developing intelligent lighting technology to usher in the a better future for the mankind is one of Sunfor lights’s unyielding pursuits. Sunfor Light believes in developing ergonomic intelligent lighting technology, centered around its user in a controlled luminous environment, to enrich people’ moder life. At home, in offices or leisure facilities, whether day or night, Sunfor light brings fresh lighting experience and joy to people. Using on artificial lighting for plants, Sunfor light is reinterpreting meaning of the old saying of “ the provision of bread is everything”.
