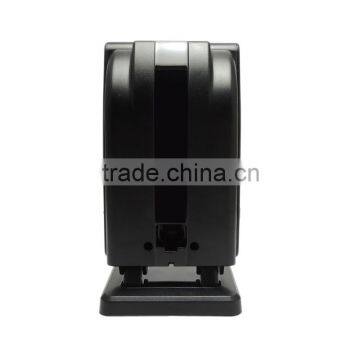

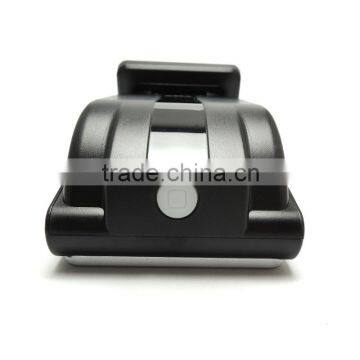

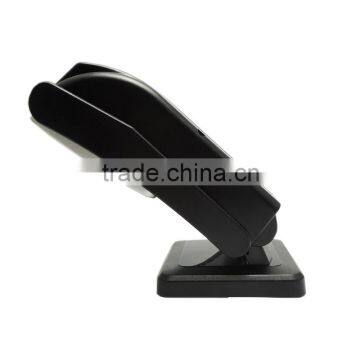

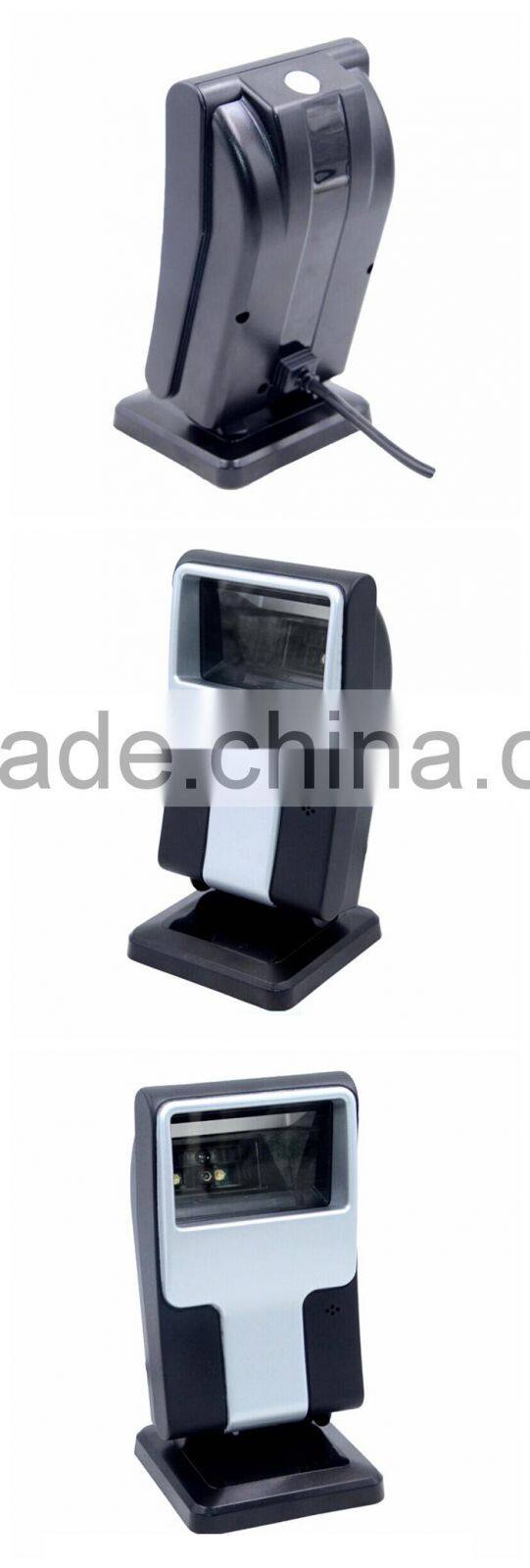

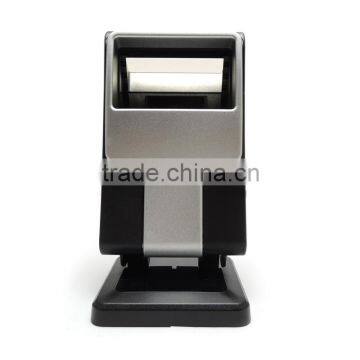

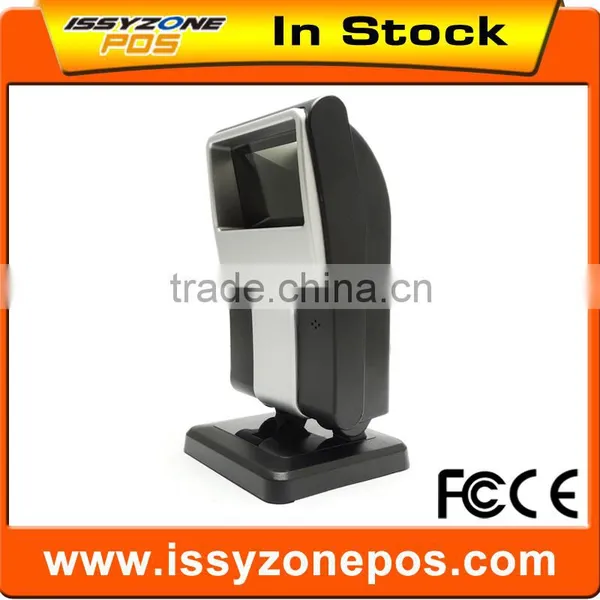

IOBC019 2D QR Code Reader Desktop Type QR Scanner Hand Free
| ITEM | IOBC019 2D barcode scanner |
| Introduction | |
| Feature | Read 4 mil minimum barcode resolution Auto-sense function saves power for improve life time Read all 1D standard and 2D barcodes Multi-interface solutions With LEDs and speaker for scanning confirmation |
| SPECIFICATIONS | |
| Optical | |
| Optical System | 752 H x 480 V pixels (Wide VGA) |
| Light Source | Aiming Pattern: single dot, 625nm LED |
| Illumination: 630nm LEDs | |
| Resolution | 4 mil (Code 39), 7.5 mil (Data Matrix), 5 mil (PDF 417) |
| Focusing Distance | Up to 267mm |
| Field of View | Horizontal: 46.1º; Vertical: 30.4º |
| Indicator | LEDs, Speaker |
| Electrical | |
| Voltage | DC 5V |
| Scanning Currents | <260mA |
| Environment | |
| Operating temperature | 0 °C to 40 °C (32ºF to 104ºF) |
| Operating humidity | 5% ~95% RH(non-condensing/non-freezing) |
| Shock resistance | 1.5m drops |
| Physical | |
| Weight | 300g (incl. cable weight) |
| Dimensions | 140mm (L) x 73mm (W) x 70mm (H) |
| Housing Material | PC + ABS plastic |
| General | |
| Interface | USB HID / RS-232 / USB-COM |
| UPC/EAN/(UPCA/UPCE/UPCE1/EAN-8/EAN-13/JAN-8/JAN-13 plus supplemental, ISBN, ISSN, Coupon Code), Code 39, Code 39 Full ASCII, Trioptic, Code 32 (Italian Pharmacode), Code 128, (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated), Code 93, Codeabar/NW7, Interleaved 2 of 5, Descrete 2 of 5, IATA Chinese 2 of 5, Matrix 2 of 5, Code 11), MSI Plessey, GS1Databar, (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked) | |
| Readable Codes 1D | |
| PDF417 (and variants) | PDF417 (Standard, Macro), MicroPDF417 (Standard, Marco), Composite Code (CC-A, CC-B, CC-C) |
| Readable Codes 2D | MaxiCode, Data Matrix, Data Matrix inverse, QR Code, QR Inverse, Micro QR Code, Aztec Code, Aztec Inverse, Postal Code |
| Postal | U.S. Posnet and Planet, U.K. Post, Japan Post, Australian Post, Netherlands KIX Code, Royal Mail 4 State Customer, UPU FICS 4 State Postal, USPS 4CB |
Application Fields
1.Do you have the items in stock?
The most of products are in stock. We can send the goods out within 3 days after payment received. For the goods are out of stock, production time is about 7-10 days.
2.Do you offer other relevant items?
Yes we do. We are offering barcode scanner, receipt printer,magnetic card reader and data collector and Pos system.
3.If the goods are damaged badly, who is responsible for it?
We will be responsible for the damaged goods when it is damaged during transport, and we can exchange the new goods for you.
4. How do I know that you have sent the products out?
Once the prodcuts are sent out, a tracking number will be provided so that you can check where your goods at all times.
Our Mission is to maximize The Value of Made In China.
Welcome to . We are a supplier mainly provide POS system. Main products: barcode scanner, receipt printer, magnetic card reader and data collector.
Our history:
In 2010, Issyzone was built in Guangzhou.
At that time, we were just a small team of two people.
But now, we have developed to thirty people due to our sales development by five years’ endeavor.
Our products:
In 2010, we started our market of barcode scanner.
In 2012, we broadened our product range by introducing POS system.
We believe that we will have high quality electric products in the future. We still provide high quality service and good quality products for our customers.
Our commitment:
7 days no reason to return
We provide the “7 days no reason return” service, in order to make sure our customers to have a happy transaction. You can return your products without any reason.
We have aftermarket and original parts. All of products are tested and then sent to you. If you have any trouble in using, we are glad to help you solve the problem.
Our aim:
Issyzone, make your business easy!
