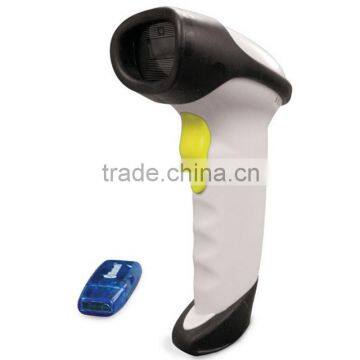

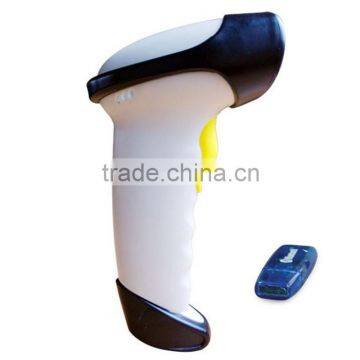

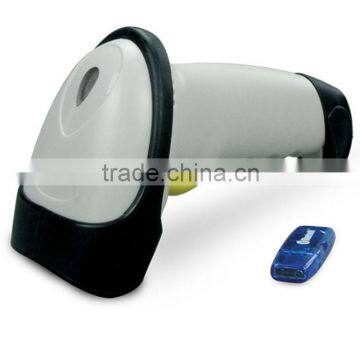

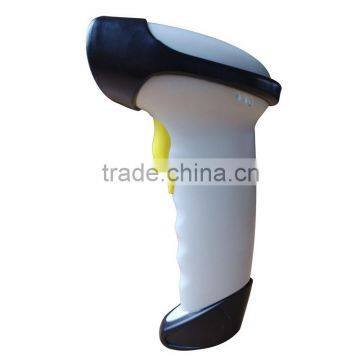

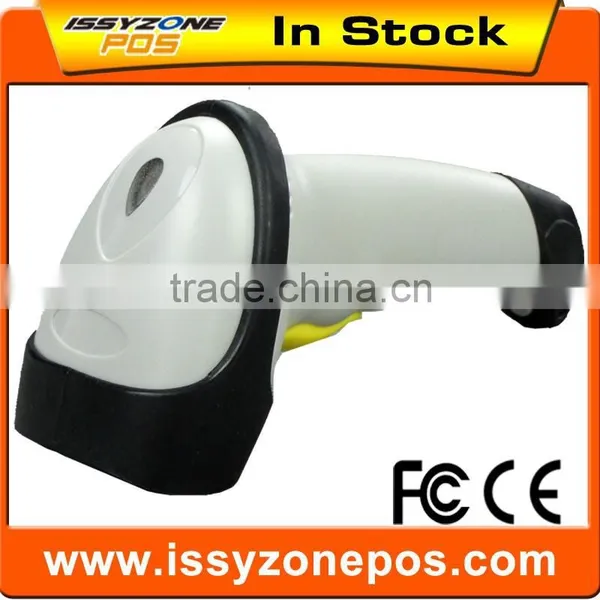

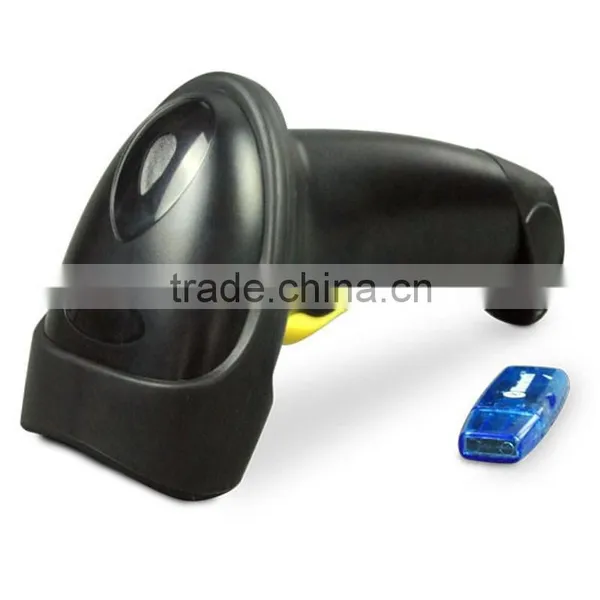

IPBS044 Bluetooth 1D Image CCD Barcode Scanner Reader
| General Description | |
| IPBS044 is developed based on our model IPBS044 (wired 1D image CCD barcode scanner). It has a 32bit CPU and runs a 500scans/sec high speed. Compared to the traditional Bluetooth barcode scanners, IPBS044 has the advantages of fast scanning speed and good performance liner imager. The imager inside can capture and decode 1D bar code both on paper and electronic screen quickly. With IPBS044 in hand, you will have a totally different experience of scanning bar codes. | |
| Features | |
| 1. Read both on paper and electronic screens (smart phone screen, computer screen, etc.); | |
| 2. Good penetrability (even if the bar code is covered by glass or is fuzzy, it can still read out); | |
| 3. 32bit CPU and 500scans/sec high speed; | |
| 4. Easy to program, light weight and small size; | |
| 5. Long-range CCD bar code scanner; | |
| 6. 10 meters Bluetooth distance | |
| 7. Suitable for WIN 7, WIN 8, WIN XP, Android and IOS. | |
| PHYSICAL CHARACTERISTICS | |
| Product name | Bluetooth 1D Image CCD Barcode Scanner |
| Material | ABS+TPE+PC |
| Size | L*W*H:166mm*88mm*64mm |
| Color | White/Black |
| Power Supply | DC 5V±5% |
| Charging cable | 1.5m universal USB cable |
| Battery | 3.7V 1500mAH 18650 lithium battery |
| Operating current | 245mA(operating mode);317mA(maximum peak) |
| Charging time | 3.5 hours |
| Weight | 170g±5g(without cables) |
| PERFORMANCE CHARACTIESTICS | |
| Transmission Distance | 10 meters open linear distance |
| Transmission Frequency | 2.4GHZ Bluetooth |
| RAM Capacity | 64K(About 3500 14b 1d barcodes)(the memory capacity can be customized) |
| Sensor | Linear CCD sensor |
| Light source | 632nm red diode(LED) |
| Processor | 32-bit ARM Cortex-M3 MCU |
| Decoding Capability | Codabar, Code 11,Code 93,MSI,Code128,UCC/EAN-128,Code 39,EAN-8,EAN-13,UPC-A,Industrial 25,Standard 25,2/5 Matrix etc. |
| Resolution | 4mil(0.1mm),PCS45% |
| Depth of field | 500mm@20mil/0.5mm,PCS90% |
| Scanning speed | 500 times/sec |
| Trigger mode | Manual, Automatic induction, Continuous scanning |
| Scanning width | 5cm~30cm |
| prompting mode | Buzzer, Indicator light(LED) |
| Print Contrast | 30% |
| Scan Angles | Roll35°,Pitch65°,Yaw65° |
| USER ENVIRONMENT | |
| Operating Temp. | 0 to 50°C / 32 to 122°F |
| Storage Temp. | -20 to 70°C / -4 to 158°F |
| Operating Humidity | 20~95% ( non-condensing ) |
| Storage Humidity | 20~95% ( non-condensing ) |
| IP Grade | ≥IP54 |
| ESD protection | 15kv |
| Shock Resistance | 1.5m free fall on concrete surface |
