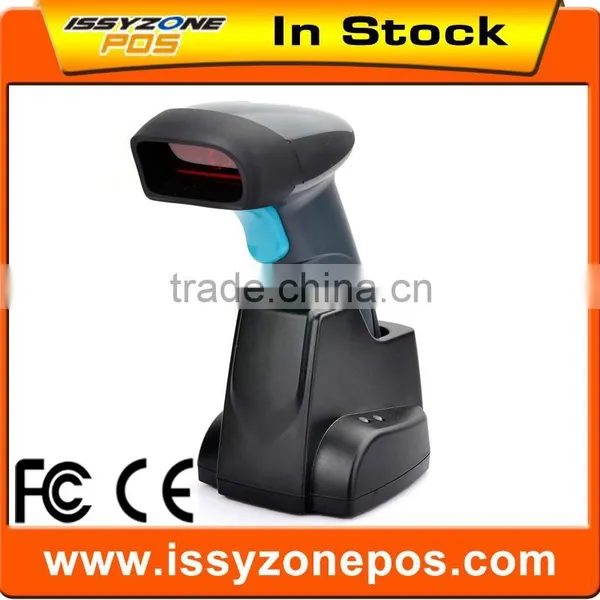

IPBS041 With Stand Wireless Bar Code Barcode Scanner
| 1. Using NXP MCU decoding microarrays, software super error correction | |
| 2. Automatic sleep, wake up one-button function, automatic power saving feature | |
| 3. Built-in ultra-stable income received antenna | |
| 4. CPU Precise control scanning speed of up to 260 times per second, the highest | |
| 5. The use of large-capacity industrial-grade cylindrical lithium polymer battery, you can use more than 48 hours | |
| 6. Dust shock and drop interference with high reliability 433 long-distance data transmission | |
| 7. Wireless base can use when stents can achieve continuous scanning gun features | |
| Wireless scanner with memory, can store more than 4,000 bar code data. You can set the working channel and scanner ID, support for low-voltage prompts, automatic power saving feature. Reception function and charging base set of functions in one, supporting many, many-to-data processing. Suitable for warehouse management and out of inventory, logistics delivery, on various occasions supermarket cashier, manufacturing production lines. | |
| Performance Parameters | |
| Processor: | NXP high-end decoder chip |
| Tip: | LED and buzzer indication |
| Receiver Interface: | USB (HID keyboard), RS232C, PS2 keyboard port |
| Scan Speed: | 100 times / sec. |
| Scanning Parameters | |
| Light Source: | 650nm visible laser diode |
| Scan Type: | Single scan |
| Scanning Angle: | ± 50 °; ± 60 °; ± 40 ° (front, left, rotate) |
| Print Contrast: | 35% minimum reflectance difference |
| Scan Angle: | 65 ° elevation, 50 ° angle |
| Decoding Capabilities: | EAN-8, EAN-13, UPC-A, UPC-E, Code 39, Code 93, Code 128, EAN128, Codaber, Industoal 2 of 5, Interleave 2 of 5, Matrix 2 of 5, MSI, China postal codes. |
| Depth: | 5mil: 35-110mm; 10mil: 15-280mm; 13mil: 20-320mm; 16mil: 35-360mm; 35mil: 150-625mm; |
| Minimum Resolution: | 4mil (0.10mm) |
| Electrical Parameters | |
| Power: | 1200mAh lithium battery (built-in) |
| Standby Time: | one month |
| Working Hours: | 15 hours (continuous scan) |
| Wireless Standard: | 433MHz ISM band |
| Communication Range: | 300 meters (open viewing distance) |
| Related Certification: | CE Class1: EN60825-1 |
| Mechanical Parameters | |
| Size: | 160mm (L) × 65mm (W) × 85mm (H) |
| Weight: | 200g |
| Receiver: | 80mm (L) × 56mm (W) × 25mm (H) |
| Weight: | 110g |
| Environmental Parameters | |
| Operating Temperature: | 0 ℃ to 50 ℃ |
| Storage Temperature: | -40 ℃ to 60 ℃ |
| Humidity: | 5% - 95% relative humidity (non-condensing) |
| Earthquake Resistance: | can withstand 1.5 m air drops |
| Dust Resistance: | sealing up to IP42 |
| Illumination: | 6,000LUX |
Application Fields
1.Do you have the items in stock?
The most of products are in stock. We can send the goods out within 3 days after payment received. For the goods are out of stock, production time is about 7-10 days.
2.Do you offer other relevant items?
Yes we do. We are offering barcode scanner, receipt printer,magnetic card reader and data collector and Pos system.
3.If the goods are damaged badly, who is responsible for it?
We will be responsible for the damaged goods when it is damaged during transport, and we can exchange the new goods for you.
4. How do I know that you have sent the products out?
Once the prodcuts are sent out, a tracking number will be provided so that you can check where your goods at all times.
