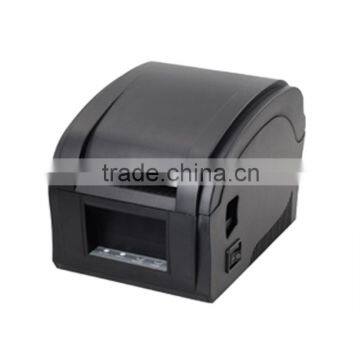

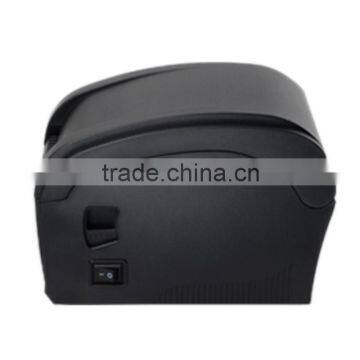

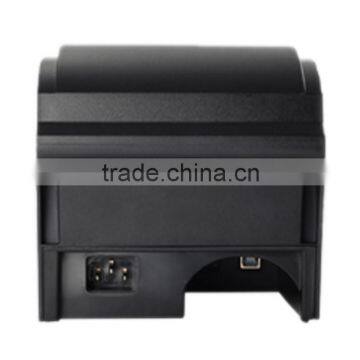

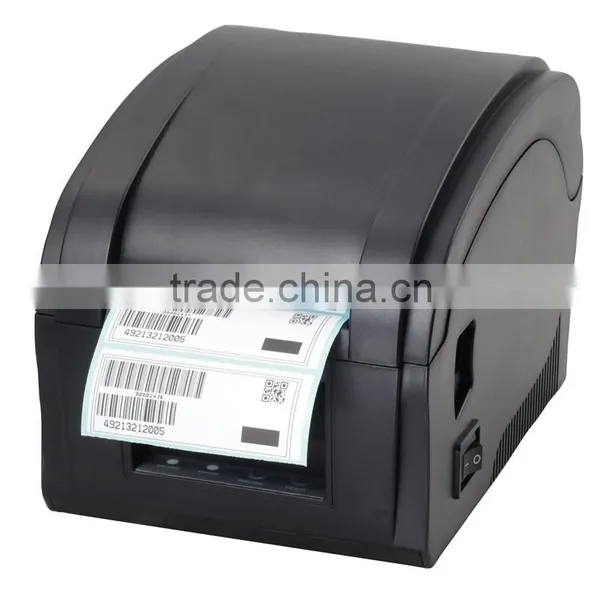

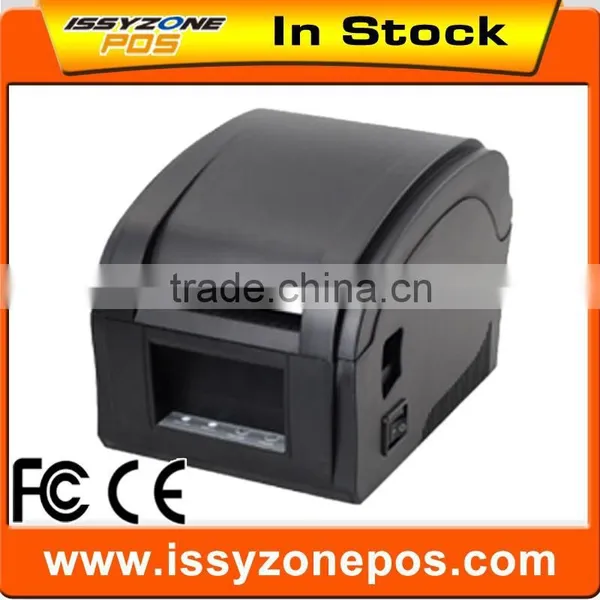

Large Format Printer Ticket Printer For Ebay Shipping Label ITPP029



80mm QR Code Label Paper Adhesive Sticker Thermal Printer ITPP029

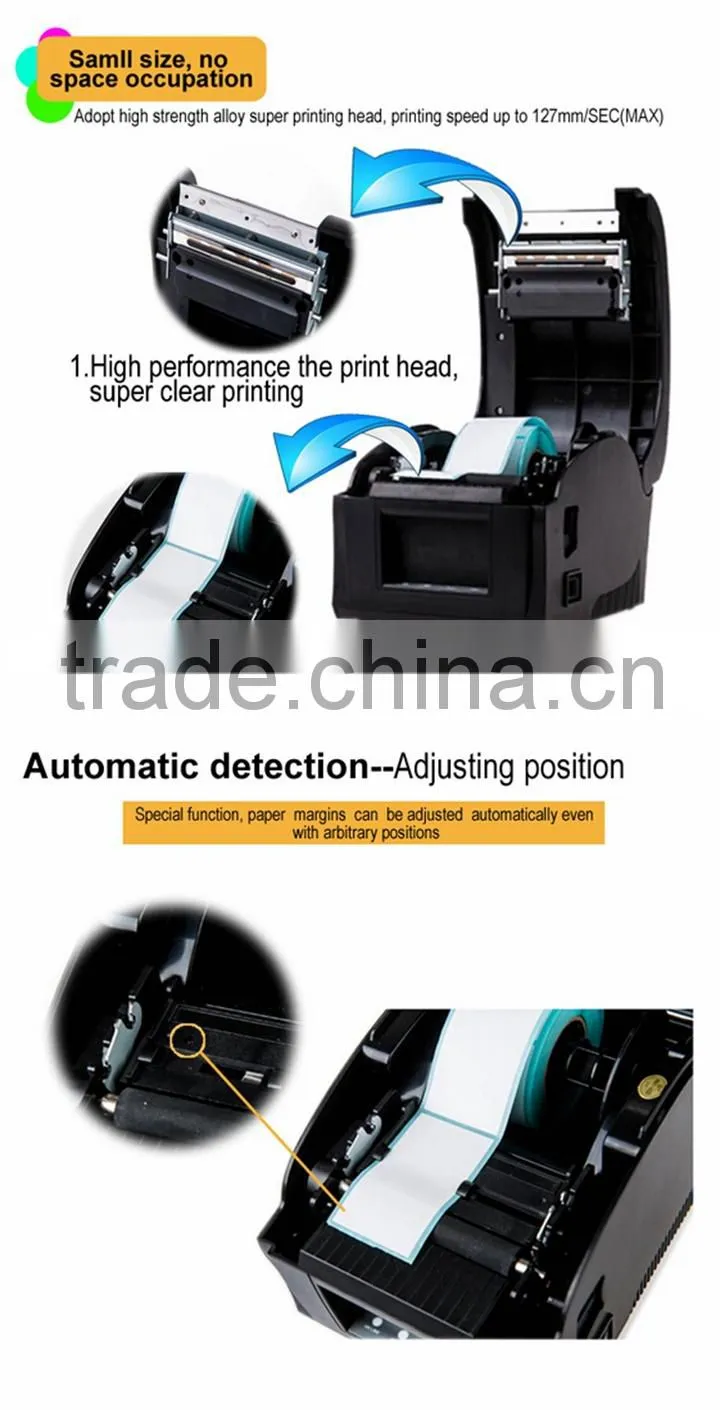

ITPP029 is new barcode printer in 2014Y, Printing speed can be up to 127mm/s, Support QR Code printing, Support paper roll, sticker, adhesive sticker, etc. Support label paper auto detection.



Functions

Min 50.8mm/s,Max 127mm/s

Built-in power supply

Memory: DRAM: 4M, NV FLASH: 4M

Suppotr PDF417, QR CODE, DATMATRIX

Support to modify IP address through browser

100MB Ethernet interface connection



Parameters
Printing
Printing method	Direct thermal
Resolution	203DPI
Print width	76mm
Printing speed	MAX: 127mm/s;MIN: 50.8mm/s
Memory	DRAM: 4M  FLASH: 4M

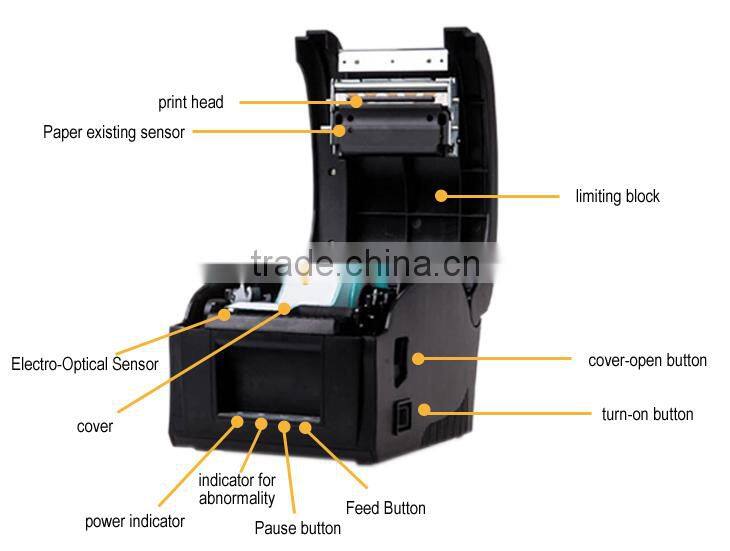

Print head temperature sensor	Thermal sensitive resistance
Paper exists detection	Photosensor

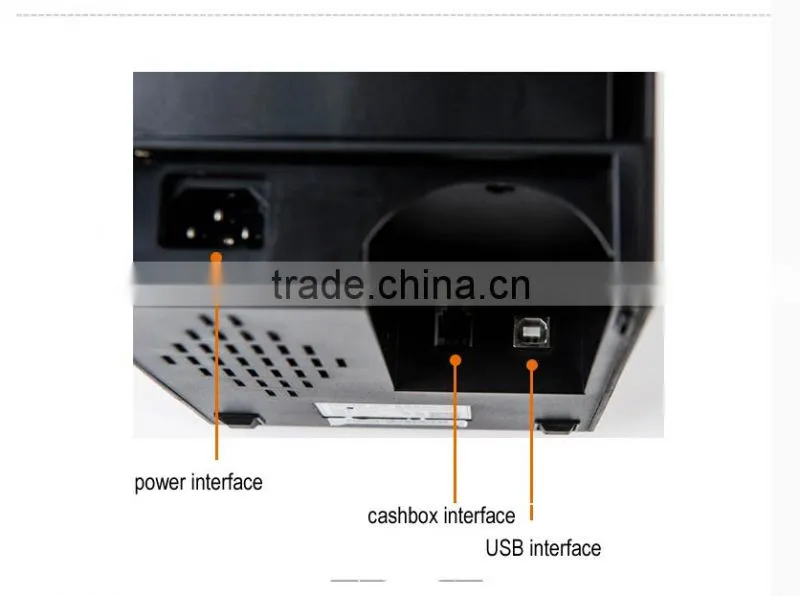

Interface	USB
Character size	ANK,Font A:1.5×3.0mm(12×24 dots) Font B:1.1×2.1 mm(9×17 dots) Chinese,traditional Chinese:3.0×3.0mm (24×24 dots)
Barcode Character
Barcode	CODE128,EAN128,ITF,CODE39,CODE93,EAN13,
	EAN13+2,EAN13+5,EAN8,EAN8+2,EAN8+5,
	CODABAR,POSTNET,UPC-A,UPCA+2,UPCA+5,
	UPC-E,UPCE+2,UPC-E+5,CPOST,MSI,MSIC,
	PLESSEY,ITF14,EAN14
Internal font	FONT 0 to FONT 8
Enlargement & rotation	(0°,90°,270°, 360°) 1 to 10 times enlargement in both  direction; 0°,90°,270°, 360° rotation
Image	Monochromatic PCX, BMP image files can be load to  FLASH, DRAM
Media type

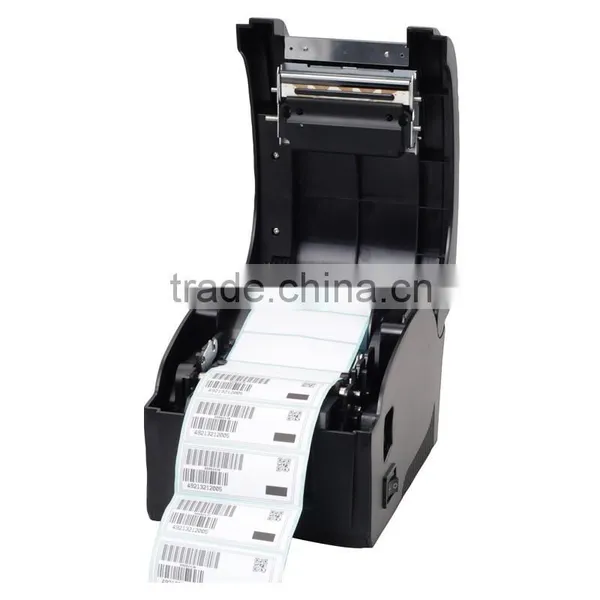

Paper type	Paper roll, sticker, adhesive sticker, etc
Paper width	20mm~82mm
Roll external diameter	MAX 100mm
Roll inner diameter	MIN 25mm
Paper off type	Peel off
Power
Power supply input	24VDC, 2.5A
Physical characteristics
Weight	1.42KG
Dimensions	212.4(D) x 143(W) x 145.5(H)mm
Environmental Requirements
Work environment	5~45℃, 20-80%RH(no condensation)
Storage environment	-40~55℃,≤93%RH(40℃)

























  >

Our Factory





1. Do you have the items in stock?
The most of products are in stock. We can send the goods out within 3 days after payment received. For the goods are out of stock, production time is about 7-10 days.

2. Do you offer other relevant items?
Yes we do. We are offering barcode scanner, thermal receipt printer, magnetic card reader, data collector and Pos system.

3. If the goods are damaged badly, who is responsible for it?
We will be responsible for the damaged goods when it is damaged during transport, and we can exchange the new goods for you.

4. How do I know that you have sent the products out?
Once the products are sent out, a tracking number will be provided so that you can check where your goods at all times

5: What is the Warranty for your printers?

We support the wholesale clients 18 months of our 80mm serials printers, and 58mm serials 14 months, 76mm serials 14months.There can be 2-4 months for you to buffer.

6: How can your printer works with our system?

All printers will come with a CD driver, install it, can print buyer language if use driver to print.

7. Does your command compatible to ESC/POS command?

Yes, our command compatible to ESC/POS command.
