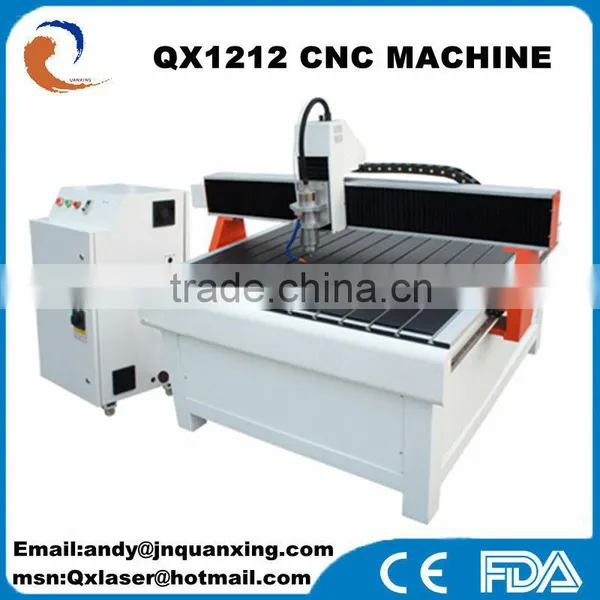

CNC MACHINE QX1212
Machine configuration:
1. Taiwan Hiwin Square Rail
2. Z axis adopts Germany NEFF Ball Screws
3. 1.5kw Spindle Motor
4. American NC-STUDIO Controlling system
5. American ARTCAM designing software
Technical Date:
NO. |
Discription |
Parameter |
1 |
X,Y,Z Working Area |
1200X1200X110mm |
4 |
Table Size |
1310X1385mm |
5 |
X,Y,Z Traveling Positioning Accuracy |
±0.03/300mm |
6 |
X,Y,Z repositioning Positioning Accuracy |
±0.05mm |
7 |
Frame Structure |
Cast Steel Structure |
8 |
X,Y,Z Structure |
Ball Screws |
9 |
Max. Travelling speed |
40000mm/min |
10 |
Max. Working Speed |
25000mm/min |
11 |
Spindle Max. Consume Power |
1.5Kw spindle(option:HSD 1.5kw Spindle) |
12 |
Spindle Speed |
0-24000rpm/min |
13 |
Working Mode |
Stepper Model |
14 |
Table |
Aluminium T-slot table |
15 |
Working Voltage |
220V, 1Ph |
16 |
Command Code |
G code, F/S |
17 |
Operating System |
NC-STUDIO System |
18 |
Net Weight |
385KG |
Applicable materials and industry :
1. Furniture: wooden doors, cabinets. Plate, office and wood furniture, tables, chair, doors and
windows.
2. The wood products: voice box, game cabinets, computer tables, sewing machines table,
instruments.
3. The Advertising Industry,Plate processing: insulation part, plastic chemical components. PCB, inner body of car, bowing
tracks, stairs, anti-bate board, epoxy resin, ABS, PP,PE and other carbon mixed compounds.
4. Decorate industry: Acrylic, PVC, MDF, artificial, stone, organic glass, plastic and soft metals
such as copper, aluminum plate engraving and milling process.
Guarantee & after sale service :
1) Guarantee for two years(Without Spindle, all the parts free for exchange after-service)
2) Free training to make sure you master the operating of cnc router (on internet or by telephone)
3) 24-hour technical supporton Internet or by Telephone, free instructions and problem solving
4) Video CD for machine using and maintaining
Machine Parts Photo:

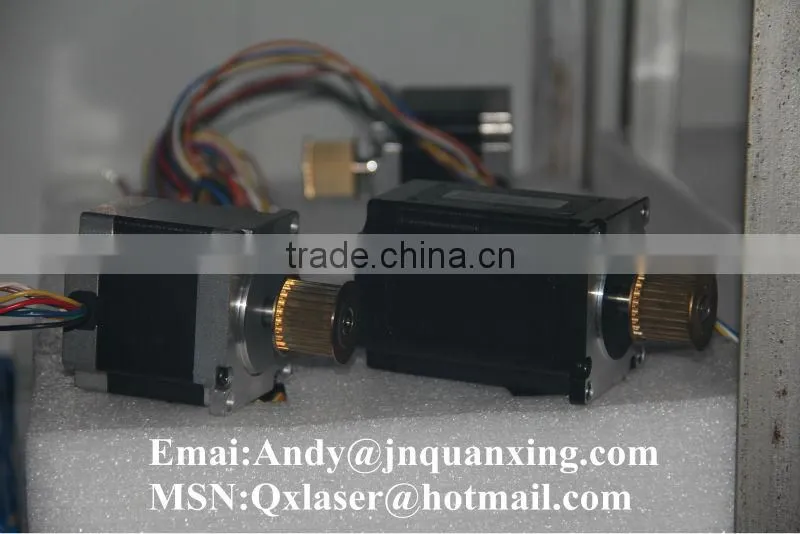

High-Performance Driver and Motor

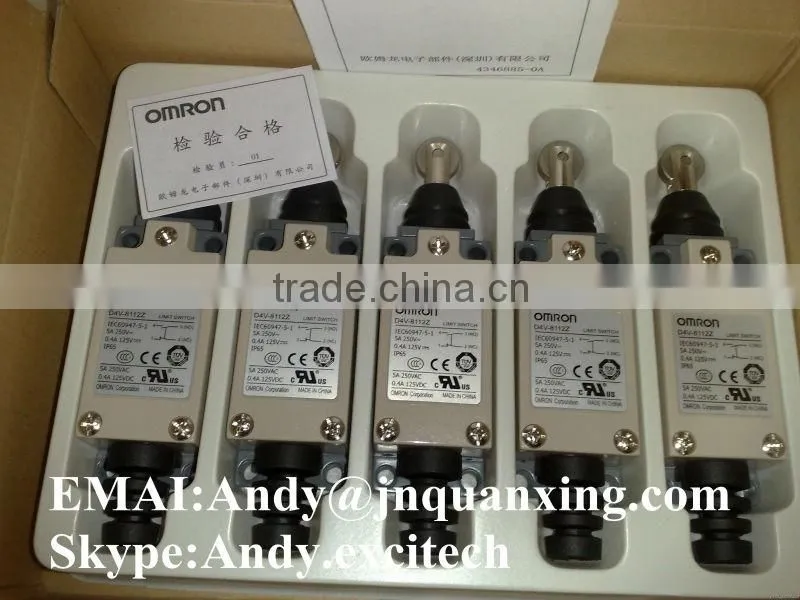

Japan Imported Omron Protection system

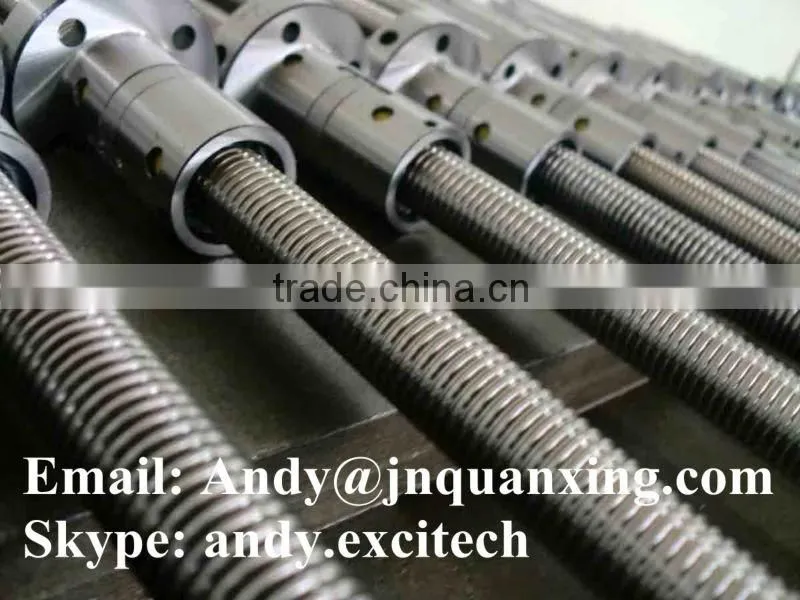

Imported Ball Screws

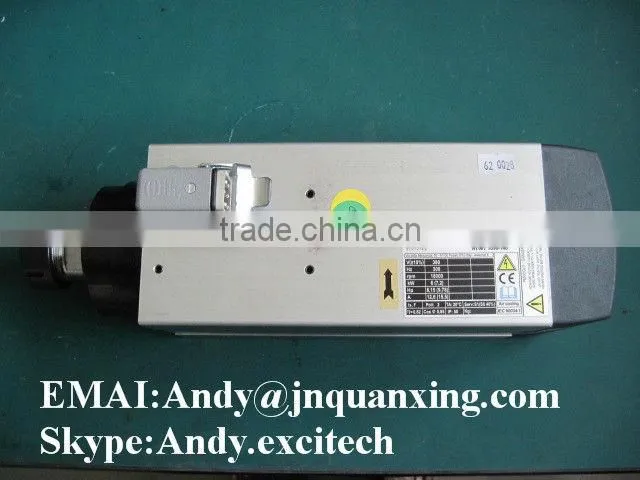

Italy Imported HSD Spindle

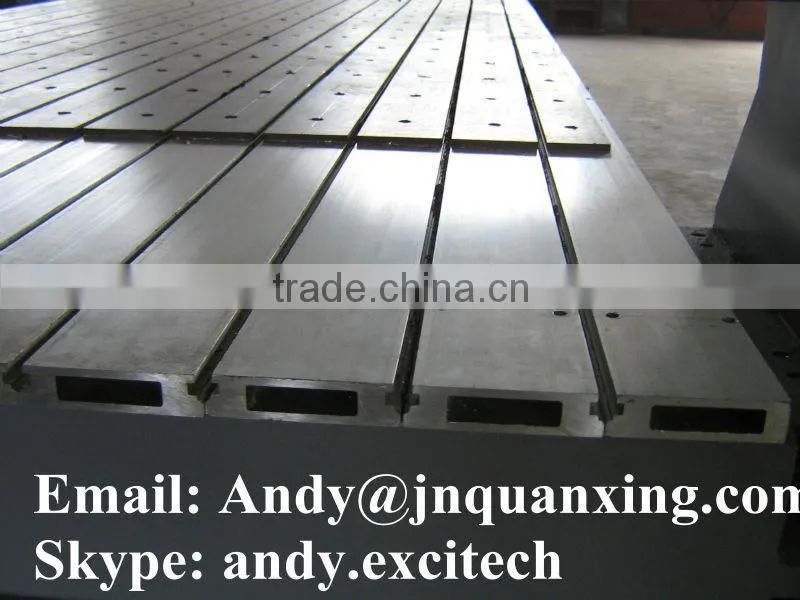

Aluminium T-slot Working Table

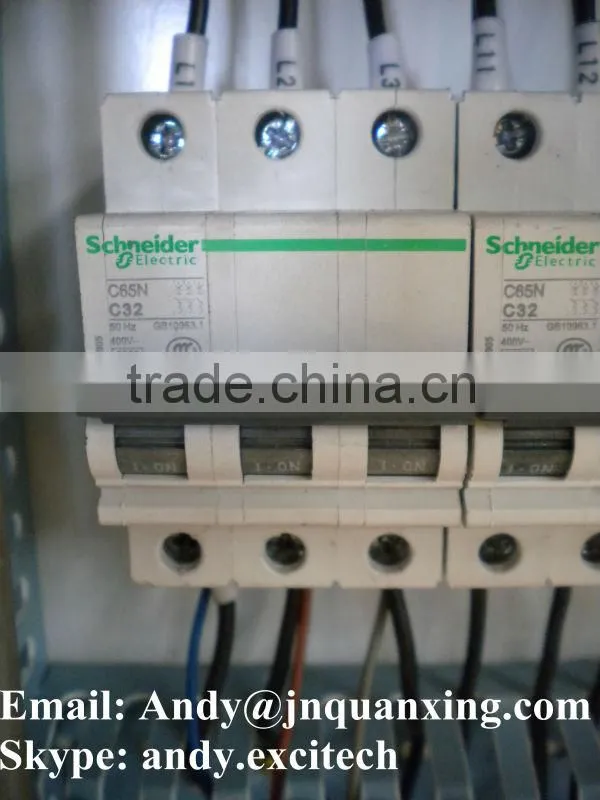

French Schneider Electric parts
Samples:

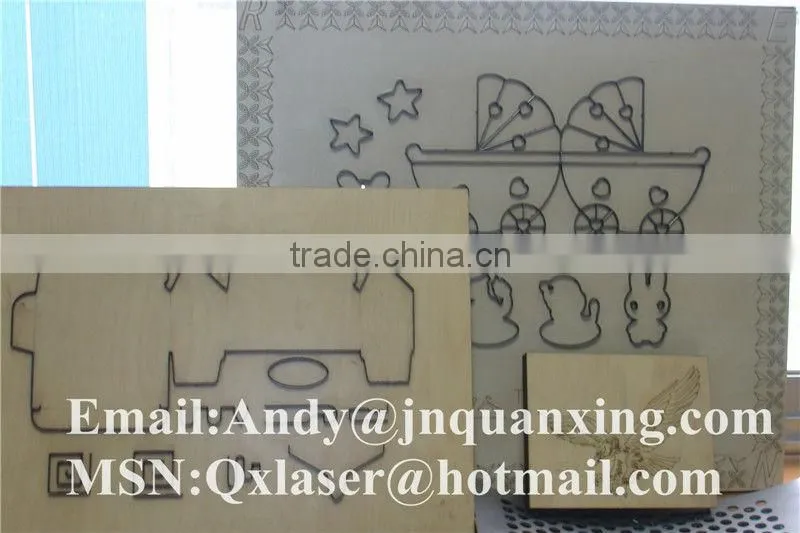

Die board Engraving,Milling, Drilling , Carving and Cutting

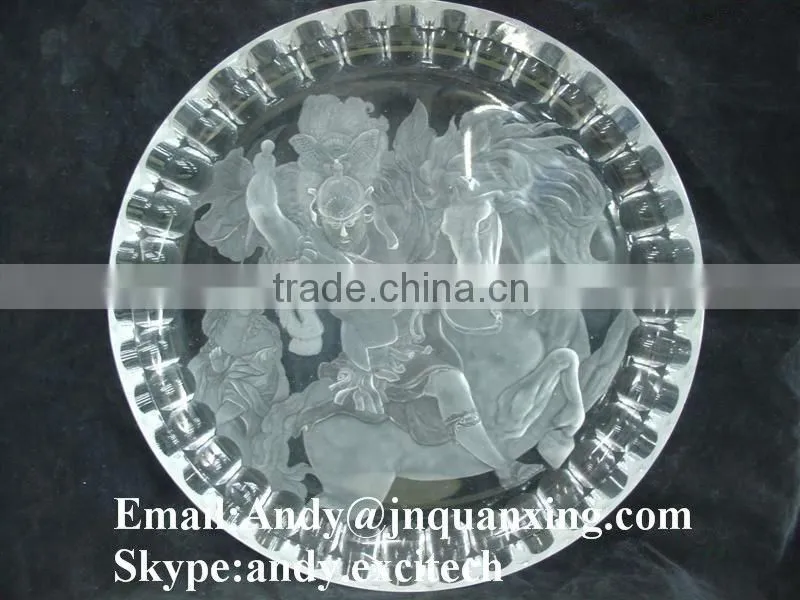

Glass or Acrylic Carving
Solid Wood Cover
Metal Mold machinery
Jade or stone carving

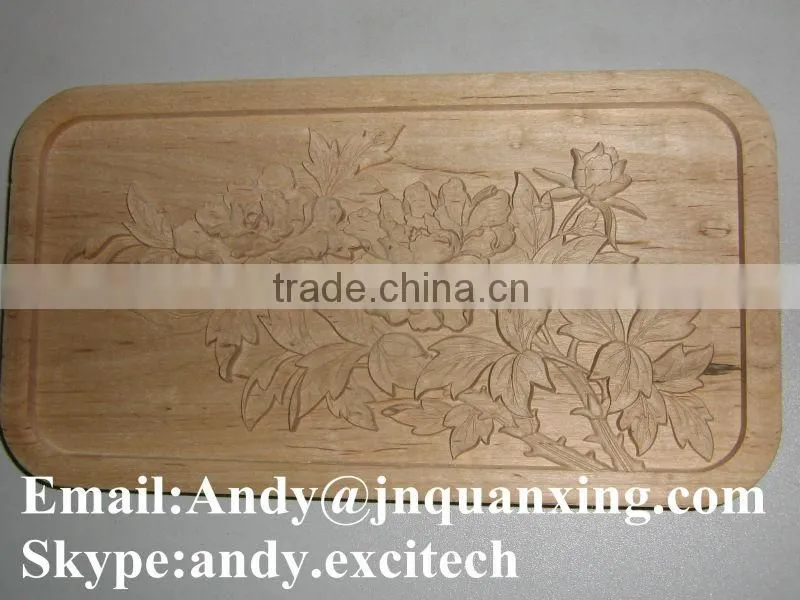

Wood Engraving&Carving
Wood Decorations

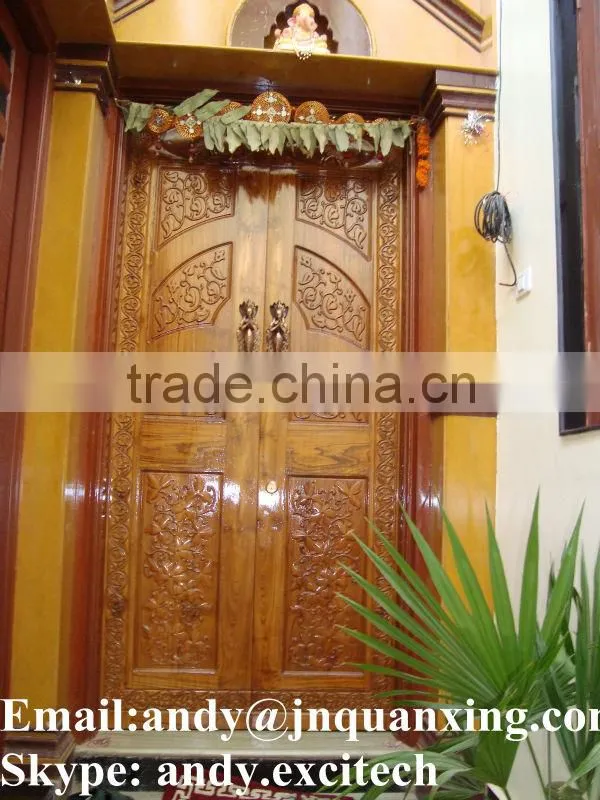

Solid Wood Door Engraving,Milling, Drilling , Carving and Cutting
We Keep Selling Season Until 31th August For all kinds of cnc router products. If you could order any machine before the date, We shall add extra free one 1.5kw spindle motor, 2.2kw industry dust collector, 1000 pieces design programms of picture and 10sets more Japanese imported cutters. The preferential benefit activity only for the products with include this selling season messages, and the only contact person is Andy. What are you waitting for?? Contact Andy now!!
