Help CenterQX-1325 (4.5kw)CNC Router
Related Products
Specifications

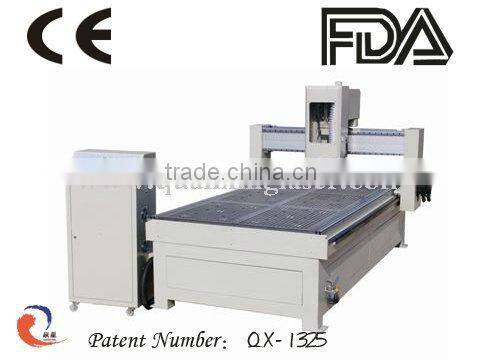

QX-1325(4.5kw) CNC Routeradpot DSP CNC system and operates with handle
QX-1325(4.5kw) CNC Router for wood
1.The max travelling speed can reach more than 30 meters/minute,the max cutting speed can reach 25 meters/minute.
2.Adoption of advanced DSP CNC system and make the operation more convenient, .And its design provide more human nature.
3.Unique intelligent caculation rules can fully develop the potential of the motor,it also leads to high speed processing and the synchronization of curves and straight line.
4.Y axis adopts double motor driver.
5.Six districts vacuum table.
6.Professional 3D control system.
7.Equip 4.5KW spindle motor,vacuum suction table and dust collector.It is mainly applicable in the manufacture of furnitures and the wooden doors.
Specification
1)X,Y axis working area:1,300×2,500mm
2)Z axis working area:<200mm
3)Table size:1,450 x 2,920mm
4)Max. speed:30,000mm/min
5)Max. Working speed:20,000mm/min
6)Working delicacy:0.02mm
7)Reposition accuracy:0.05mm
8)Max. Feeding height:200mm
9)Command:G code *.u00 *.mmg *.plt *.nc
10)Software:Type3,Artcam ,Artgrave,Ucancam,Ncstudio software
11)Max. power consumption:4.5KW
12)Spindle: 4.5KW variable speed, water cooled motor
13)Spindle speed:24,000rpm
14)Work type: steppernd(option:servo )
15)Weight:1,400kg
16)Working voltage:AC 380V, 50/60Hz
17)Memory:32M
18)Manner of receiving data:USB OR PCI
19)Running circumstance temperature:0 - 45°C
20)Relative humidity:30% - 75%
,
