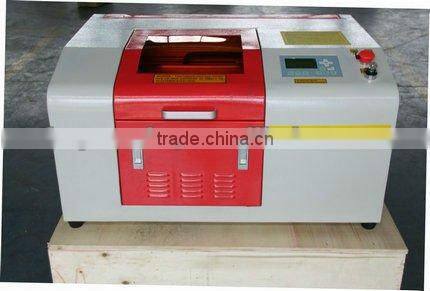

Laser Machine of Engraving Nonmetal Meterials QX--3030

Specifications

laser machine of engraving nonmetal meterials QX--3030

 Supply with CE certificate, FDA

Specification:

1)Model:QX3030

2)Laser Tube Power(standard): 40w

3)Work Area (mm): 310*310mm

4)Gross power: 1000w

5)Laser type: CO2 Laser tube

6)Max Engraving speed: 800mm/s

7)Resetting positioning accuracy: <0.01mm

8)Minimum forming character: 1x 1mm

9)Power supply: 220V±10% 50HZ or 110V±10% 60HZ

10)Software supportedDirect output software: CorelDraw, AutoCAD,   LASERCUT

11)Design software: PhotoShop, ArtCut, Adobe Reader

12)Picture Formats Supported: PLT/DXF/BMP/AI (Direct output) ,  JPG,GIF,PGN,TIF(Conversion output)

13)Engrave Curve surfaces:Rotary clamp tool (optional)

14)Water Cooling: Yes

15)Maximum Height of Material: 80mm (Motorized Up-down adjustable)

16) Laser tube: 3000-4000hours

17) Weight: N.W.: 68KG, G.W:90KG

18)Machine Dimension: 850x650x450mm

19)Packing Dimension: 960x760x650(Wooden box)

20) Certificate: CE and FDA

21) Assistant Equipment: Water pumpAir pumpExhaust FanMotorized honeycomb table

22)Optional Accessory:Red dot pointerRotary ClampAuto FocusWater chillerPurifier & Filter device

Applicable materials:

wood, PVC,bamboo, oxhorn,figuline,jade, marble, organic glass, crystal, plastic, garments, paper, leather, rubber sheet, acrylics,ceramic, glass and other nonmetal materials.

Applicable industries:

advertisement, arts and crafts, leather, toys, garments, model , building upholster, computerized embroidery and clipping, packaging and paper industry
