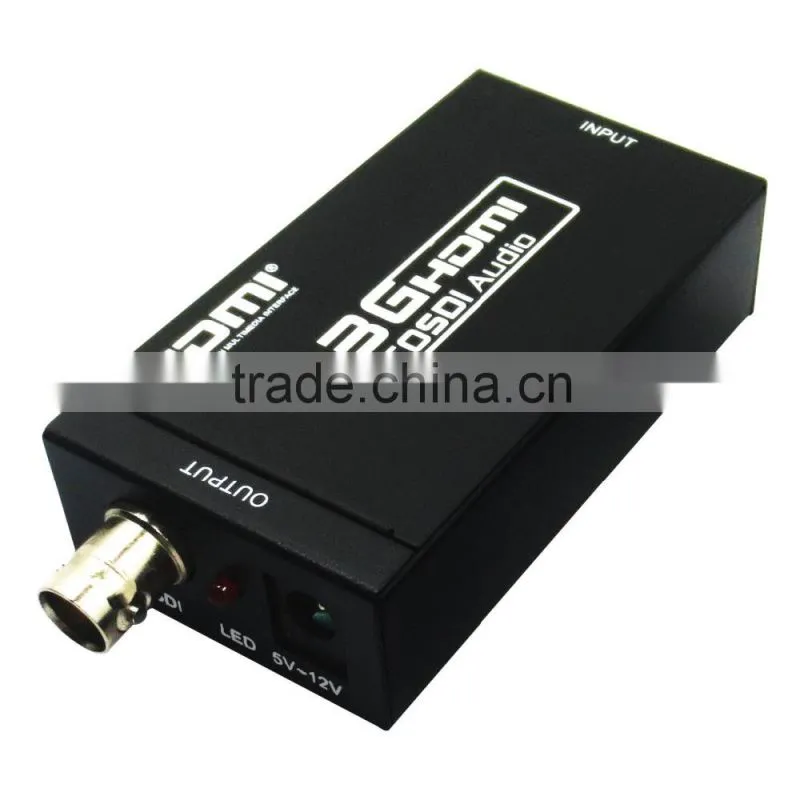

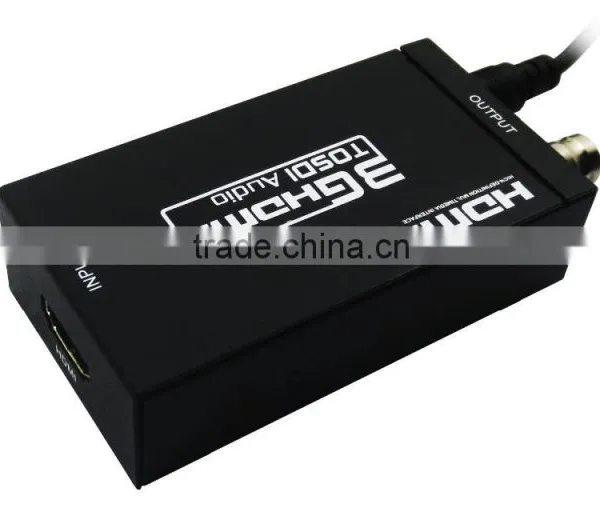

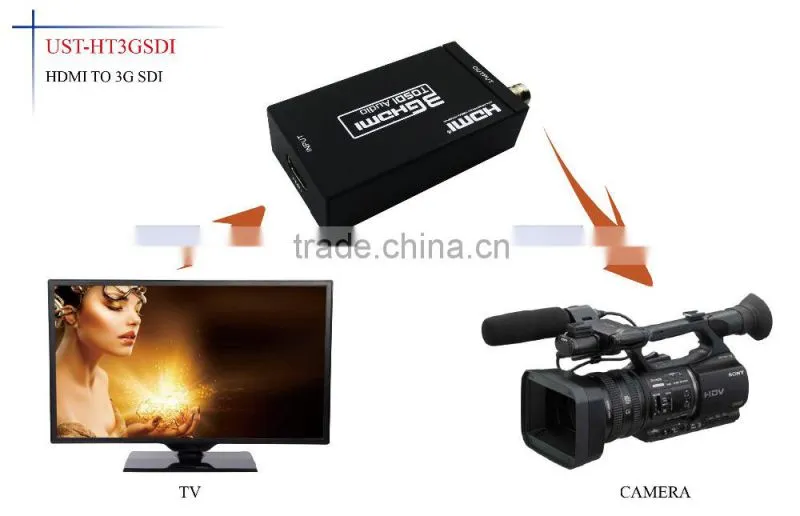

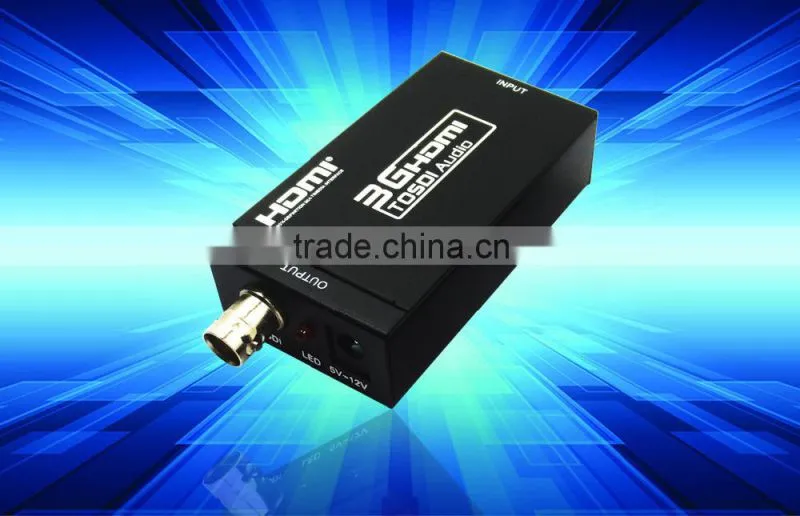

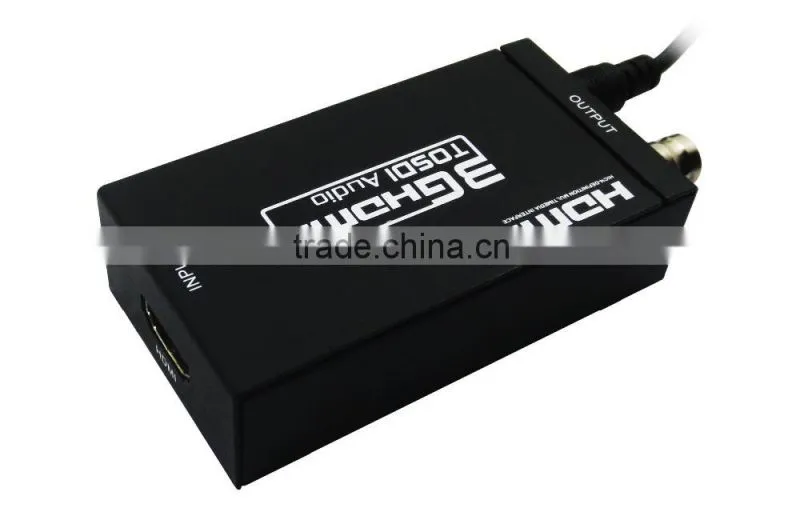

UST-HT3GSDI HDMI TO 3G SDI
Specification:
Converts HDMI signal to SDI:-480i/576i to SD-SDI (SMPTE 259M-C, at bitrates of 270 Mbit/s)-720p/1080i to HD-SDI (SMPTE 292M, at bitrates of 1.485 Gbit/s or 1.485/1.001 Gbit/s)-1080p to 3G-SDI (SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s and 2.970/1.001 Gbit/s)
SDI Output Distance: -100 meters (3G-SDI)-200 meters (HD-SDI)-300 meters (SD-SDI)
Input Port: 1 x HDMI
Output Port: 1 x BNC (SDI/HD-SDI/3G-SDI)
Power Supply: DC 5V-12V
ESD Protection Human Body Model: ±8kV (air-gap discharge), ±4kV (contact discharge)
Operating Temperature: 0~ 40 Degree C / 32~104 F Degree
Storage Temperature: -20~ 60 Degree C / -4~ 140 F Degree
Relative Humidity: 20 ~ 90% RH (Non-condensing)
Power Consumption: Max. 5W

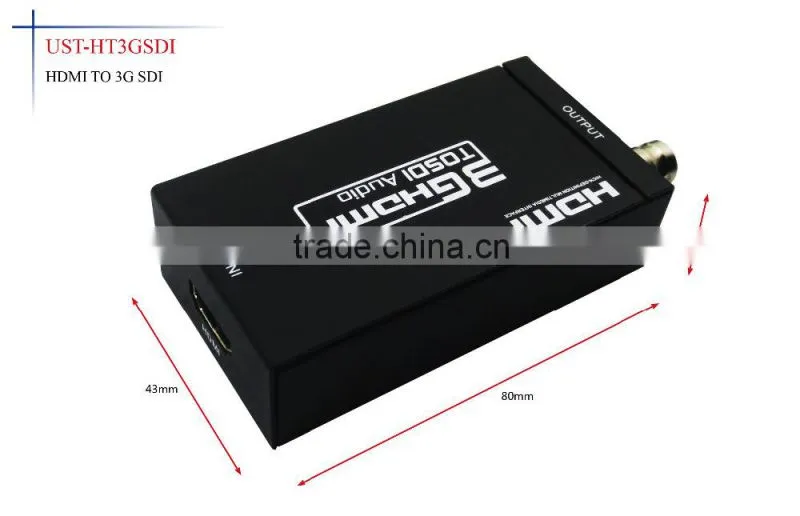

Size: 80mm x 41mm x 25 mm

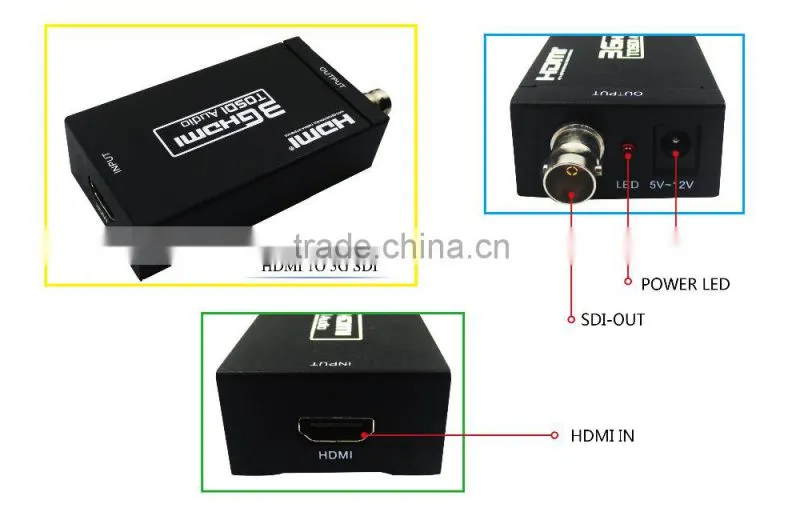

Usage:

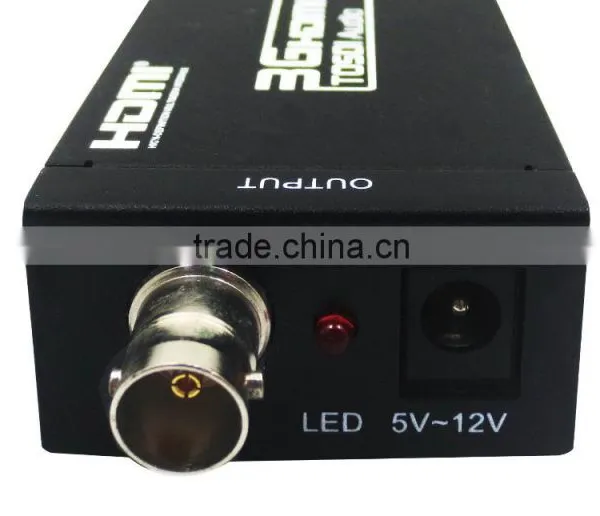

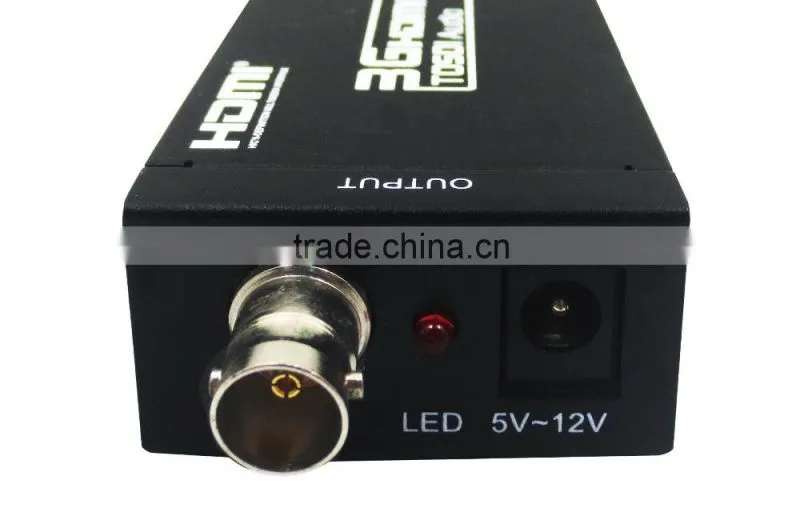

-SDI-OUT: This slot is where you connect the SDI display with coaxial cable.
-POWER LED: This red LED illuminate when the device is connected with power supply.
-DC IN: Plug the 5V-12V DC power supply into the unit.

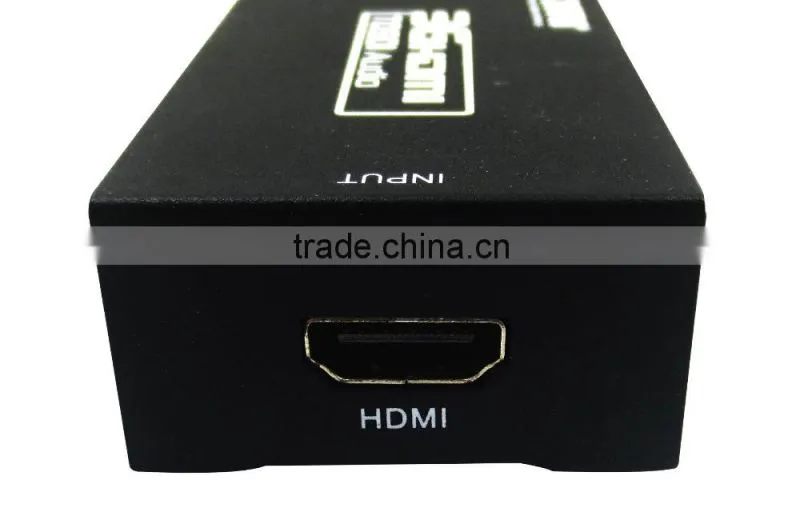

-HDMI IN: This slot is where you connect the HDMI source with HDMI cable.

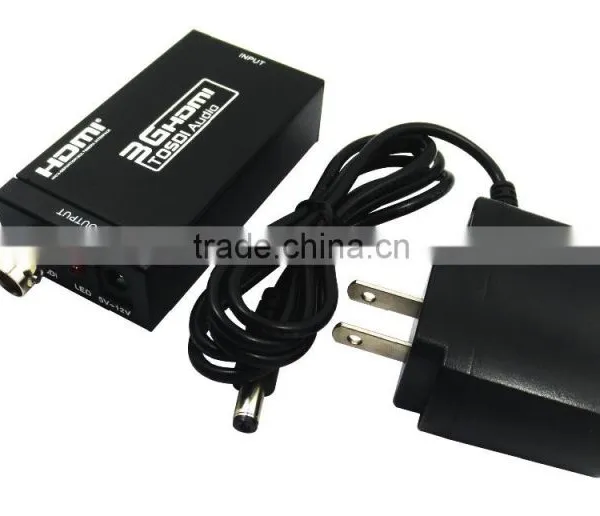

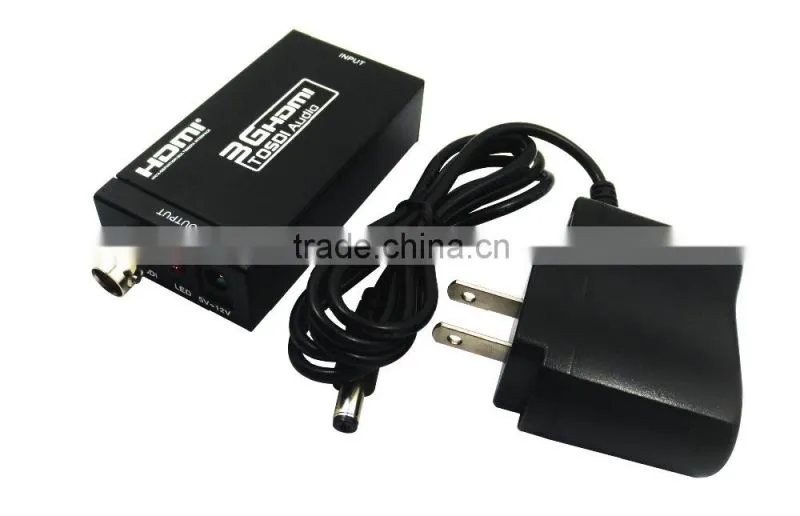

Package Content:
1 x 3G HDMI to SDI Converter
1 x Power Supply Adaptor
1 x Operation Manual
