Automatic Solid Rotary Pouch Packing Machine

Automatic Solid Rotary Pouch Packing Machine thumbnail-1
Automatic Solid Rotary Pouch Packing Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Food, Beverage
Packaging Type:
Stand-up Pouch, Bags, Film, Pouch
Contact Supplier Request Quote Chat Now
Wenzhou Reador Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Food, Beverage
Packaging Type Stand-up Pouch, Bags, Film, Pouch
Packaging Material Plastic
Automatic Grade Automatic
Driven Type Pneumatic
Voltage 380V
Power 3.5KW
Place of Origin Zhejiang, China
Brand Name Reador
Model Number MR8-200,Automatic Solid Rotary Pouch Packing Machine
Weight 1200kg
Dimension(L*W*H) 1700*1600*1500mm
Certification CE,ISO9001
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Automatic Solid Rotary Pouch Packing Machine
1. PLC
2. Pneumatic components
3. Temperature Controller
4. Vacuum pump

Automatic Solid Rotary Pouch Packing Machine Automatic Solid Rotary Pouch Packing Machine





Our exhibitions in 2014:

1.The 115th CANTON FAIR Time:15th-19th April,2014 GuangZhou.Booth No.:6.1C47

2.The INTERPACK GERMANY 2014 Time;8th-14th May.2014 Booth NO.:1C19

3.The ALMENTEC CORFERIAS 2014 Time :3th-7th June.2014 Booth NO.:NO.604 at NO.4 hall

If you have free time, welcome meet you at the exhibition.







Product Description

 1. Bag type: All type of heat sealable preformed side seal bags, fin seal bags, gusseted bags, and block bottom bags, zip-lock reclose able bags, stand-up pouch with or without spout etc.

Model

 MR8-200 (8 station)

No. of working stations

eight

Bags size

W:80~200mm  L:100~300mm

Filling Volume

5 – 2500g depending on type of products

Capacity

25-55bags/min (The speed depends on the product status and filling weight))

Total power consumption

3.6Kw

Machine Weight

Approx. 1,000 Kg

Compress air requirement

0.6m³/min supply by user





Machine Features:

1. High quality and performance, the frame is made of 150mm thickness 304# stainless steel.

2. Volume changed easy by adjusting handle in the paste filler.

3. Good stable and also good machine exterior

4. Own extensive range in filling productions

5. Easy operate by touch-sensitive screen (Siemens), PLC  (Siemens) and electric control system

6. Friendly man-machine interface

7. Speed can be adjusted by frequency conversion within the range.

8. Perfect sealing system

9. Good safety secure and so on



Safety performance

Safety:

         No bag – no filling- no sealing, machine alarm

         Bag opening miss- no filling-no sealing, machine alarm

         Machine stop or alarm when the air pressure is abnormal

         Error position display at the control panel

         Control panel locate on the right side top of the machine

         Outside of the machine and all the parts which touch production all made by stainless steel.

         There are several safety doors made by aluminum Profile Frame.

        The doors are equipped with safety proximity sensors

         Machine surface can be washed by water and brushed by cloth



Product Process:



For example:

 For common bag                                          For zipper bag



1.bag feeding                                                    1.bag feeding



ding date                                                     ding date



3.opening bag                                                   3.opening zipper



4.filling 1                                                           4.opening bag



5.filling 2(reserve)                                             5.filling



6.sealing 1                                                        6.close zipper



7.sealing 1                                                        7.sealing 1



8.sealing 2,out putting                                       8.sealing 2,out putting



 Automatic Solid Rotary Pouch Packing Machine

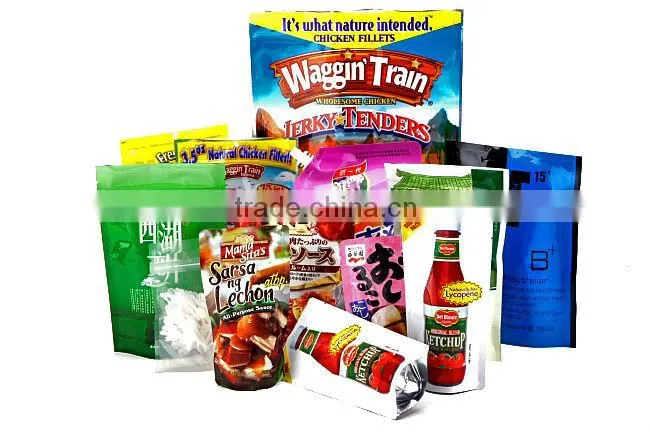

The bag samples

Automatic Solid Rotary Pouch Packing Machine

Company Information



We are one of the top manufacturers of packaging machines in China, with more than 10 years experience.

Our machines have been sold to many countries around the world, and accessed trust and praises from our customers

by our excellent quality, reasonable price and good service.



We have many kinds of package machine, such as rotary package machine and vertical package machine,

pillow type package machine etc.





Automatic Solid Rotary Pouch Packing Machine



Automatic Solid Rotary Pouch Packing Machine







Automatic Solid Rotary Pouch Packing Machine

...
