Top sell Wire fence with barbed wires
Wire fence with barbed wires

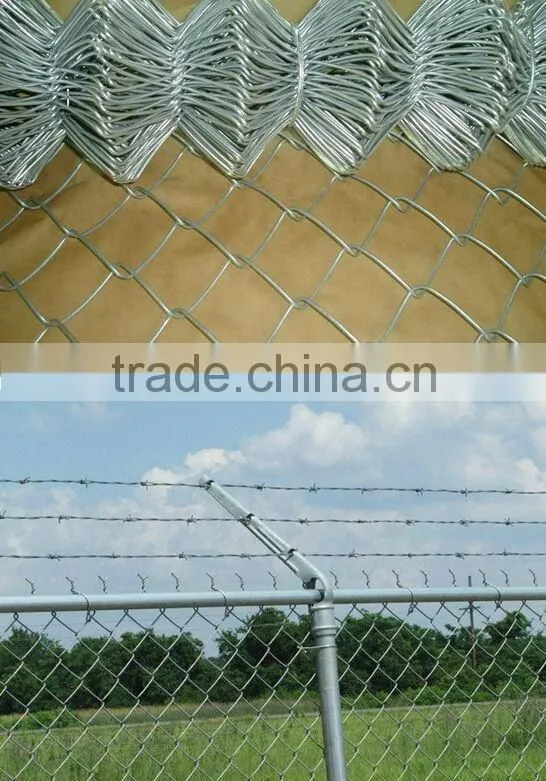

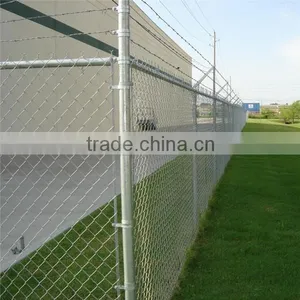

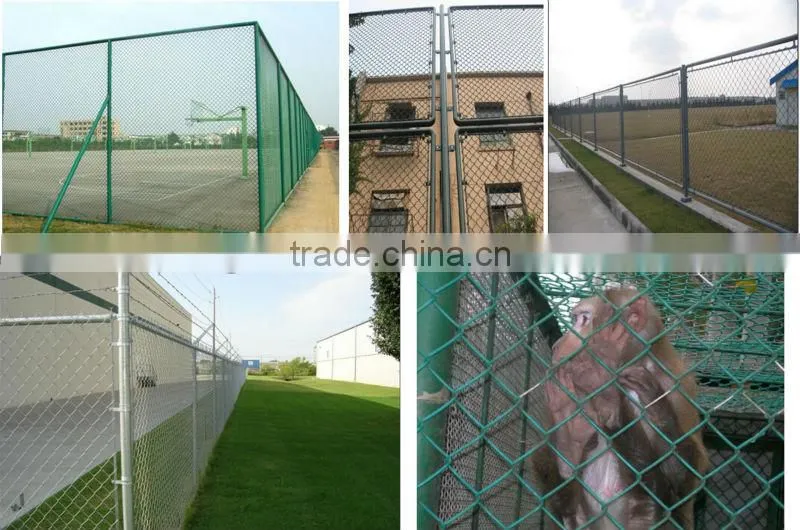

Chain Link Fence, also called Cyclone Fence or Diamond Mesh Fence. As a versatile Fence, using the woven steel wire to make the panel, it is widely used in everywhere. Due to the different applications, it is avaliable in various wire gauges and mesh sizes. All Skyhall Chain Link Fence rolls are completed with line wires and knuckled edges. What's more, the Chain Link Fence with barbed edges is more popular and has higher security.
Material
High quality low carbon steel wire Q235/Q195/S235J2, galvanized wire, plastic coated wire.
Specification:
Chian link fence size:
| Wire diameter | 3mm,4mm,5mm |
| Opening | 30mm*30mm,40mm*40mm,50mm*50mm,60mm*60mm |
| Height | 1.7m-2.5m |
| Standard roll | 15m/roll 30m/roll |
| Selvage | Twisted edge,knuckle edge |
| Round post size | 25mm*1.2mm,32mm*1.5mm,48mm*2.0mm,60mm*2.5mm,89mm*3.0mm |
| Fittings | Post cap,clip,tension bar,tension band,sleeve,barb wire arm etc |
| Finish of fittings | Hot dipped galvanized,PVC coated |
| Color | Green,white,black,grey,etc. |

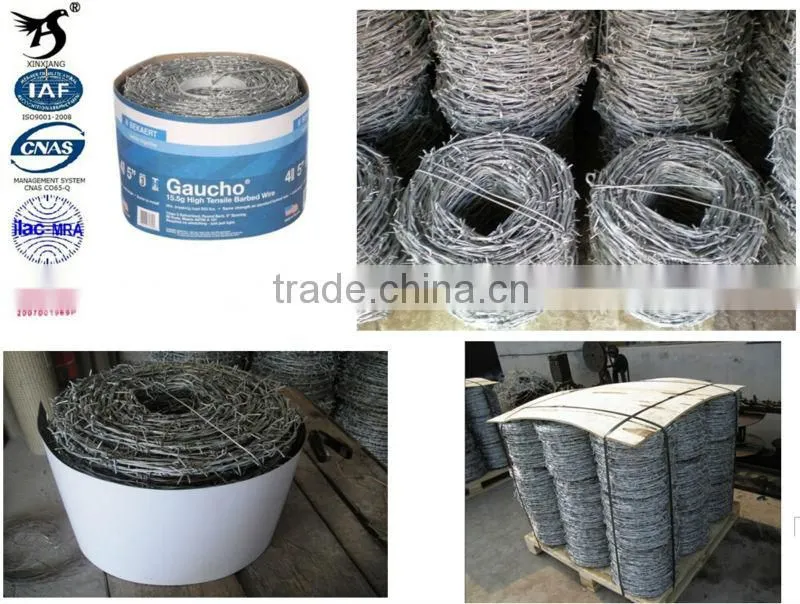

Barbed wire size:
| Type | Wire Gauge (SWG) | Barb Distance (cm) | Barb Length (cm) | |
|
Electric Galvanized Barbed Wire;
Hot-dip zinc plating barbed wire |
10# x 12# | 7.5-15 | 1.5-3 | |
| 12# x 12# | ||||
| 12# x 14# | ||||
| 14# x 14# | ||||
| 14# x 16# | ||||
| 16# x 16# | ||||
| 16# x 18# | ||||
|
PVC coated barbed wire;
PE barbed wire |
before coating | after coating | 7.5-15 | 1.5-3 |
| 1.0mm-3.5mm | 1.4mm-4.0mm | |||
| BWG11#-20# | BWG8#-17# | |||
| SWG11#-20# | SWG8#-17# | |||
|
PVC PE coating thickness: 0.4mm-0.6mm; different colors or length are available at customers request. | ||||
Chain link has been proven in service over the years to be a strong, durable fencing material, which
fulfils many demanding roles. It is essential that the right type,manufactured to specific recognised
standards is selected for an acceptable performance.

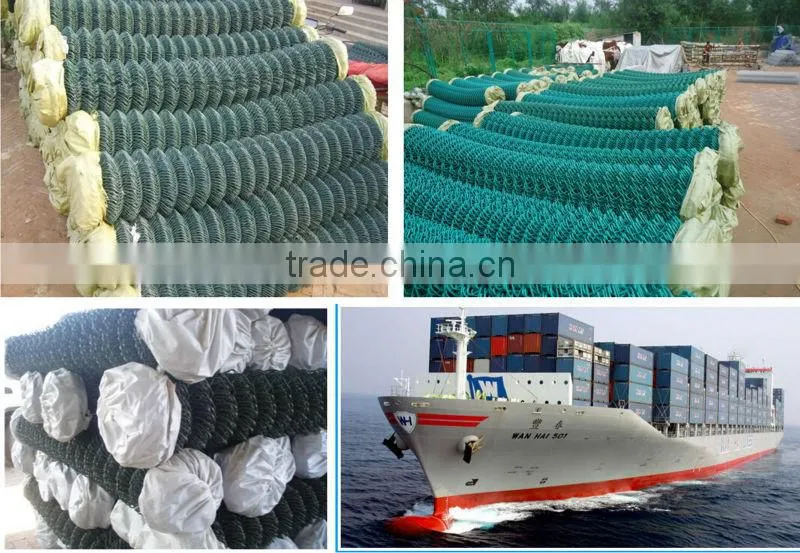

Packaging:
1.packing in the 40' high cube container
2.according the size and confirm the loading quantity
1. Provide free sample ,
2. according to your size processing ,
3. respond promptly ,
4. Putting Customers First .
