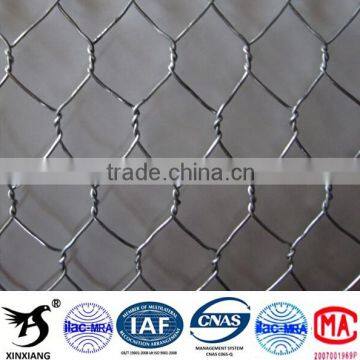

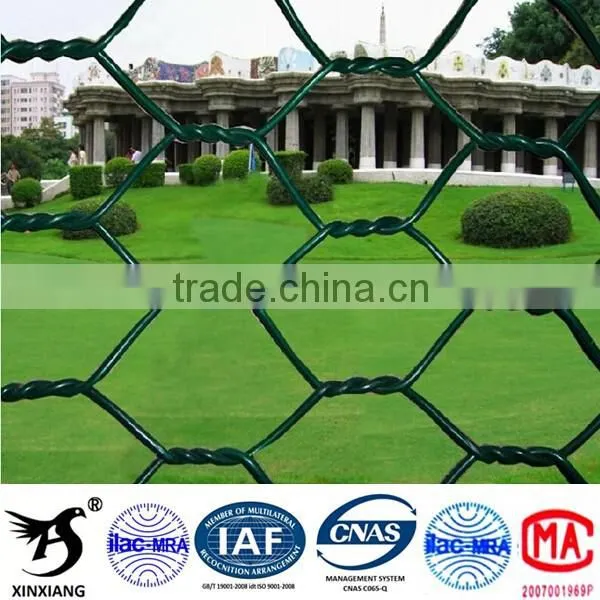

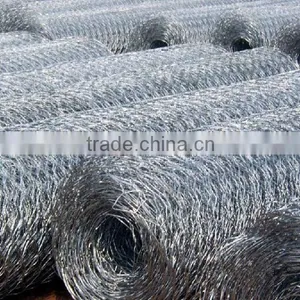

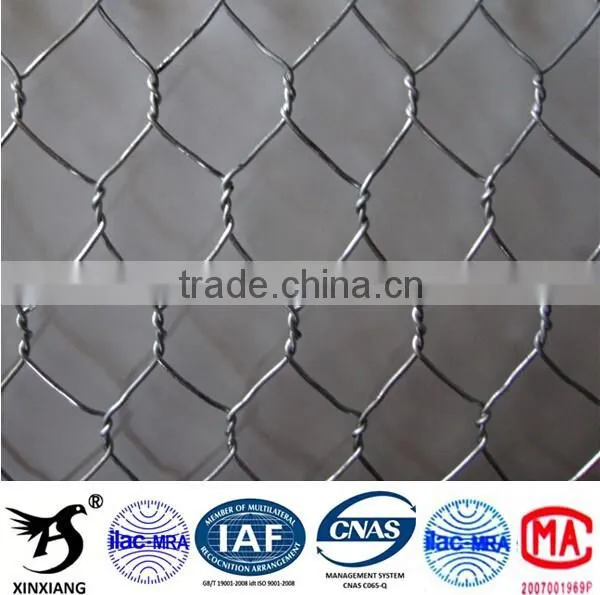

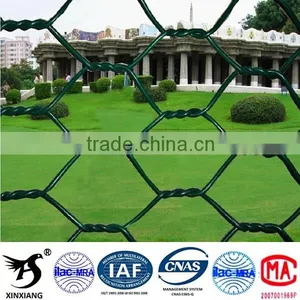

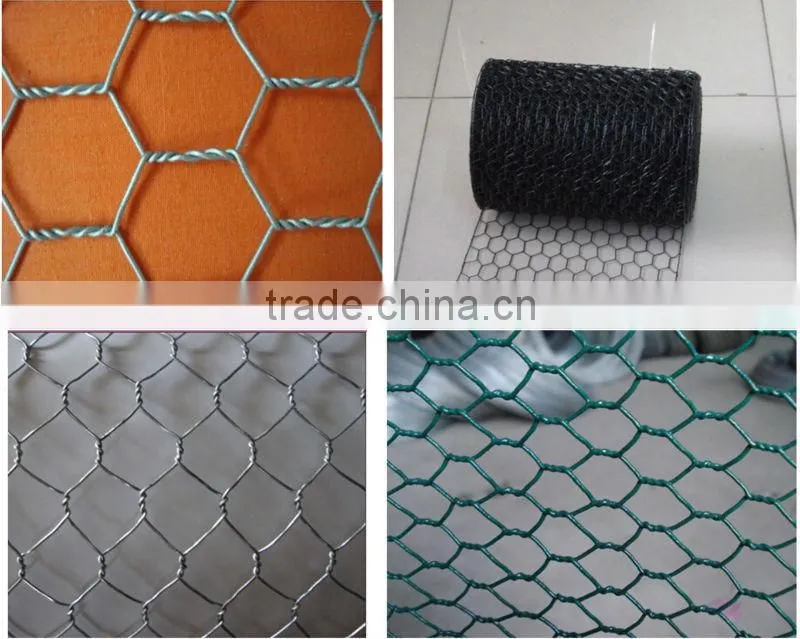

Anping hexagonal mesh
Anping hexagonal mesh
Material
low carbon steel or stainless steel ,galvanized iron wire, black iron wire, 304 310 316 321 stainless steel wire, brass, copper wire ,other materials on request
Surface treatment
1, electro galvanized before weaving
2, electro galvanized after weaving
3, hot dipped galvanized before weaving
4, hot dipped galvanized after weaving
5, pvc/plastic coated before weaving
6, pvc/plastic coated after weaving
Weave method
Hexagonal Wire Mesh Electro Galvanized before Weaving
Electro Galvanized After Weaving
Hot Dipped Galvanized before Weaving
Hot Dipped Galvanized after Weaving
PVC Coated Before or After Weaving
Stainless Steel Hexagonal Wire Netting
Specification
wire diameter: 0.4mm to 2.1mm
mesh size: 10mm to 100mm
roll height:0.5m,0.8m,1.0m,1.2m.1.5m,1.8m,2.0m
roll length: 10m/30m/50m/100m/800m length.
We also can supply as your request
| Mesh |
Min. Gal.v. G/SQ.M |
Height m |
Length Per roll m |
Wire Gauge (Diameter) BWG |
||
| Inch | mm |
Tolerance (mm) |
||||
| 3/8" | 10mm | ±1.0 | 0.7mm-145 | 0.6-2 |
50,100 |
27, 26, 25, 24, 23 |
| 1/2" | 13mm | ±1.5 | 0.7mm - 95 | 0.6-2 | 50,100 | 25, 24, 23, 22, 21 |
| 5/8" | 16mm | ±2.0 | 0.7mm - 70 | 0.6-2 | 50,100 | 27, 26, 25, 24, 23, 22 |
| 3/4" | 20mm | ±3.0 | 0.7mm - 55 | 0.6-2 | 50,100 | 25, 24, 23, 22, 21, 20, 19 |
| 1" | 25mm | ±3.0 | 0.9mm - 55 | 0.6-2 | 50,100 | 25, 24, 23, 22, 21, 20, 19, 18 |
| 1-1/4" | 31mm | ±4.0 | 0.9mm - 40 | 0.6-2 | 50,100 | 23, 22, 21, 20, 19, 18 |
| 1-1/2" | 40mm | ±5.0 | 1.0mm - 45 | 0.6-2 | 50,100 | 23, 22, 21, 20, 19, 18 |
| 2" | 50mm | ±6.0 | 1.2mm - 40 | 0.6-2 | 50,100 | 23, 22, 21, 20, 19, 18 |
| 2-1/2" | 65mm | ±7.0 | 1.0mm - 30 | 0.6-2 | 50,100 | 21, 20, 19, 18 |
| 3" | 75mm | ±8.0 | 1.4mm - 30 | 0.6-2 | 50,100 | 20, 19, 18, 17 |
| 4" | 100mm | ±8.0 | 1.6mm - 30 | 0.6-2 | 50,100 | 19, 18, 17, 16 |

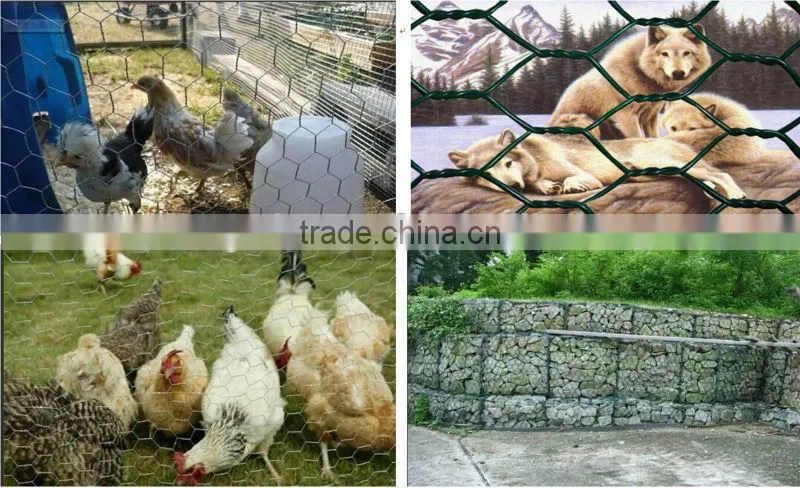

Application
1,Structural purposes , Heat insulation (ceilings, boilers..)
2, Pipe wrapping(petrolium) ,Isolation purposes ,
3, Indicator & protection for underground cables and pipes , Windows Protection
4, Light fencing applications ,Fishing ,Poultry farms ,Sugar industry
5, Rubber industry , rockwool blanket industry.
6, Poultry & animal housing, Crop protection. Fruit cages, Garden Protection, Rabbit Control ,Stucco in construction, reinforcement in road.

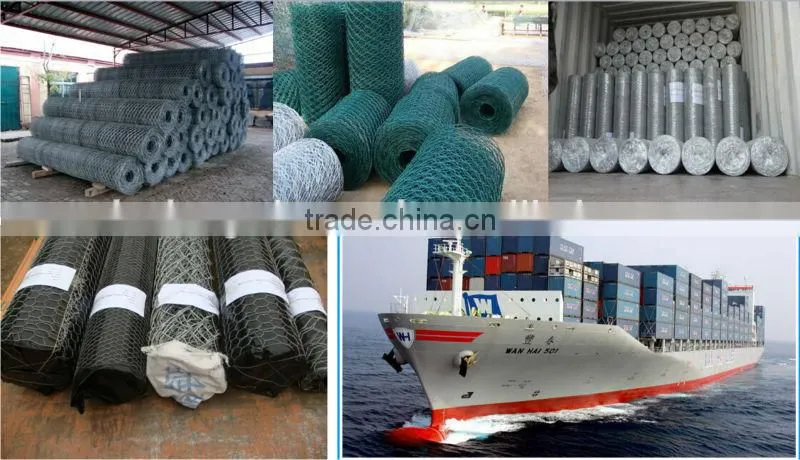

Packaging:
Normally each roll packed in water proof paper, then in termo foil (Shrinked Plastic);

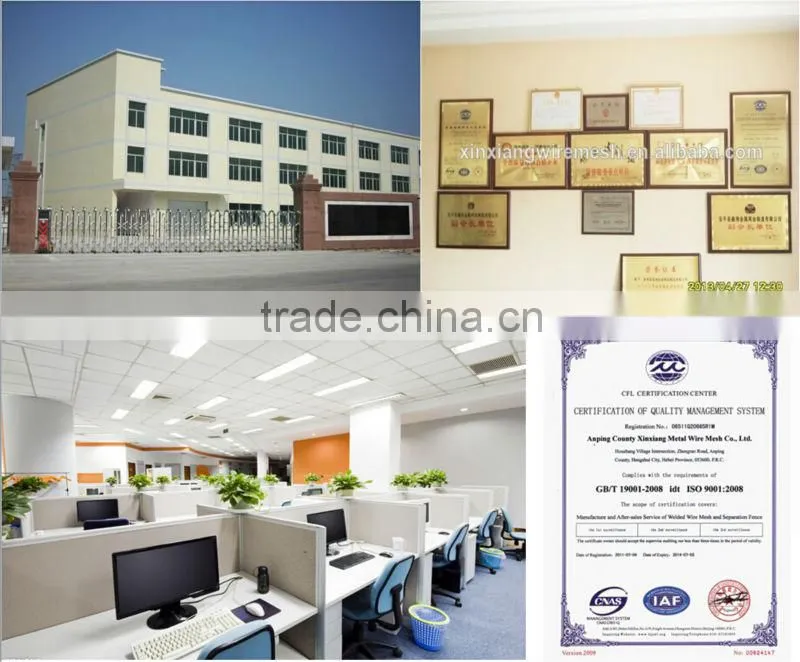

Company Profile
Founded: in 1998
Situated (Headquarters,Sales Office): in Beijing, the capital of China.
Located (Factory): in Anping, the Hometown of Wire Mesh in China.
Occupied area: 14,000 square meters.
Registered capital: about USD 8million .
Market: America, France, Germany, Italy, Russia, Australia, Indonesia, Philippines, Sri Lanka, Pakistan, South Africa and other countries in Southeast Asia and the Middle East.
Our Services
2.Customization: according to your size processing
3.respond promptly
4.Best reasonable factory direct sale price
5.supply sample for your test quality
6.After-sales support return if any quality problem
7.24 hours online

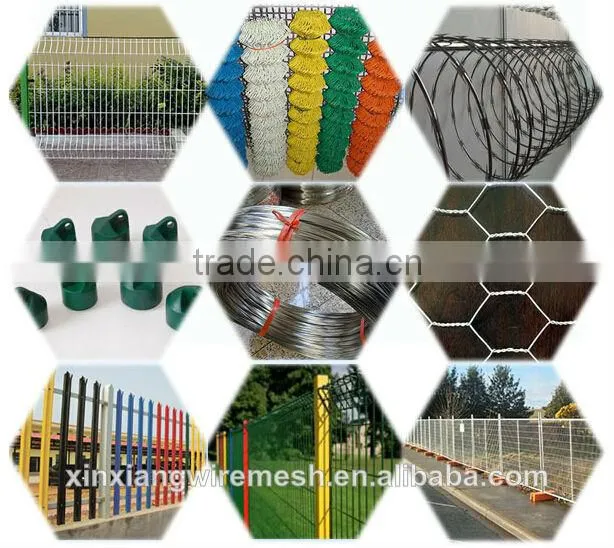

More products ti choose for you
