2014 Top Sale Durable Reinforced Welded Wire Mesh Panels
Product show

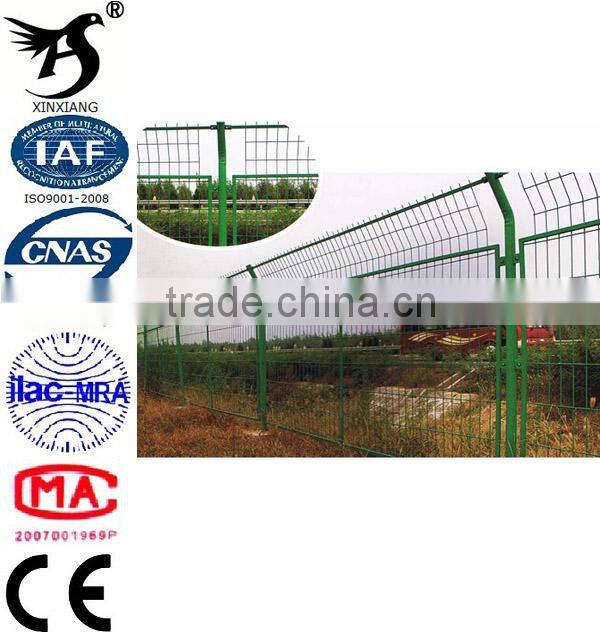

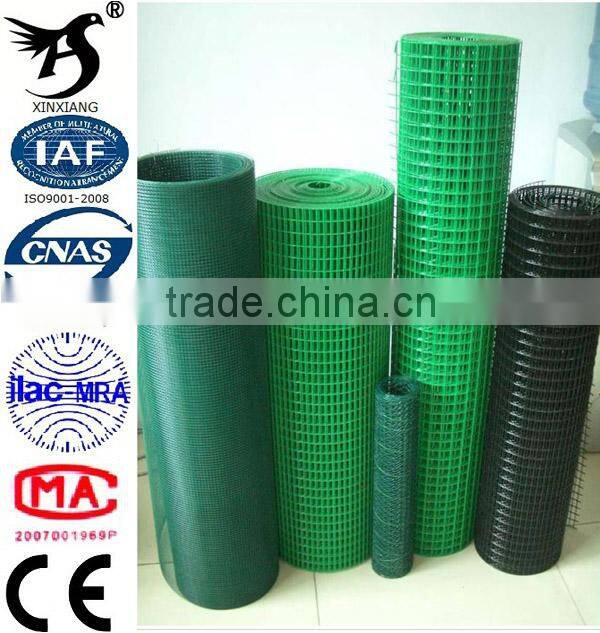

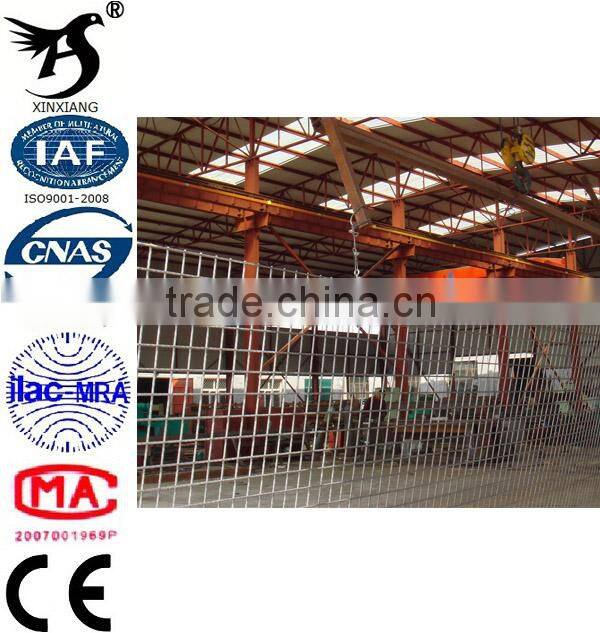

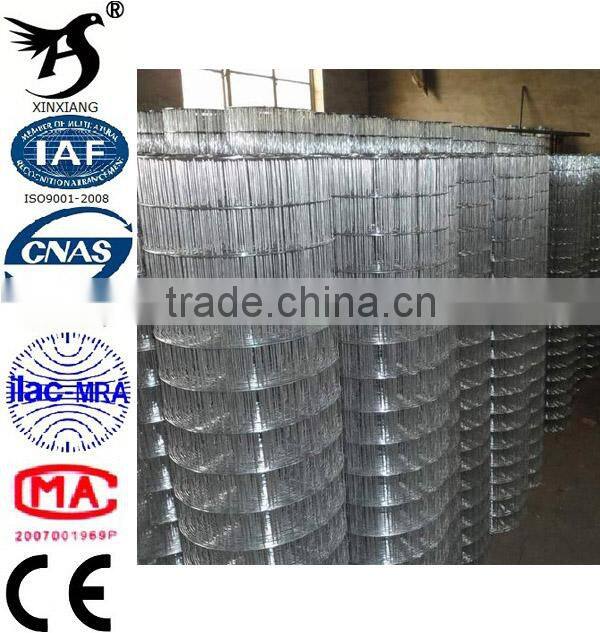

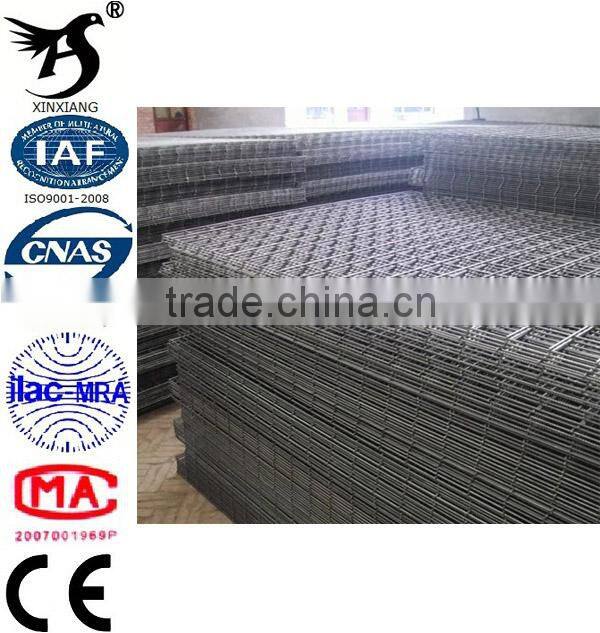

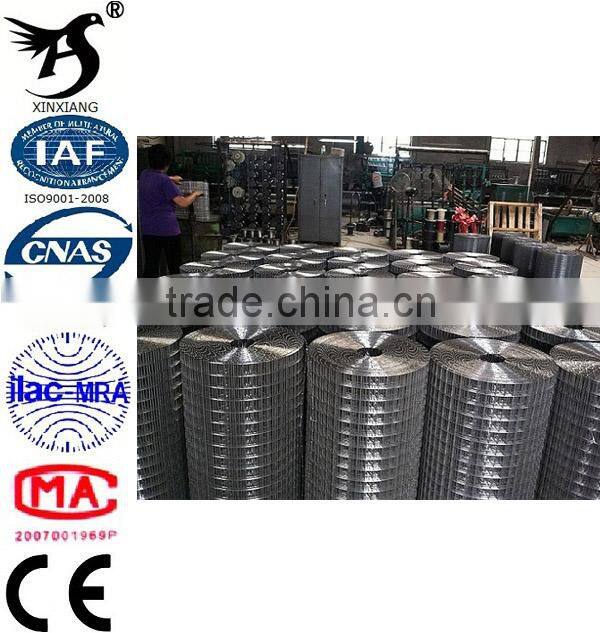

1. Pictures of Reinforced Welded Wire Mesh Panels
2. Details of Reinforced Welded Wire Mesh Panels
Regular size for Galvanized welded wire mesh:
| Mesh | Wire Dia.(mm) | Aperture(mm) |
| 2meshx2mesh | 1.6 | 11.1 |
| 4meshx4mesh | 1 | 5.35 |
| 6meshx6mesh | 0.8 | 3.43 |
| 8meshx8mesh | 0.6 | 2.57 |
| 10meshx10mesh | 0.5 | 2.04 |
| 12meshx12mesh | 0.5 | 1.61 |
| 16meshx16mesh | 0.4 | 1.18 |
| 20meshx20mesh | 0.3 | 0.97 |
| 30meshx30mesh | 0.23 | 0.62 |
| 40meshx40mesh | 0.21 | 0.43 |
| 50meshx50mesh | 0.19 | 0.32 |
| 60meshx60mesh | 0.15 | 0.27 |
Regular size for PVC coated welded wire mesh:
| WIRE DIAMETER | MESH | |
| INCH | MM | |
| 2.2mm/2.6mm | 4" x 4" | 101.6mm x 101.6mm |
| 2.2mm/2.6mm | 4" x 3" | 101.6mm x 50.8mm |
| 2.0mm/2.5mm | 4" X 2" | 101.6mm x 50.8mm |
| 1.9mm/2.4mm | 3" X 2" | 75mm x 50.8mm |
| 1.9mm/2.4mm | 2" X 2" | 50.8mm x 50.8mm |
| 1.9mm/2.4mm | 2" X 1" | 50.8mm x 25.4mm |
| 1.6mm/2.1mm | 3" X 2" | 75mm x 50.8mm |
| 0.8mm/1.1mm | 1/2" X 1/2" | 12.7mm x 12.7mm |
| 0.8mm/1.1mm | 3/4" X 3/4" | 19mm x 19mm |
| 0.6mm/0.9mm | 1/4" x 1/4" | 6.35mm x 6.35mm |
Introduction of welded wire mesh in roll:
Material: low carbon steel wire, stainless steel wire
Specification:
| Specification List of Welded Wire Mesh | ||
| Opening | Wire Diameter | |
| Inch | mm | (BWG) |
| 1/4"x1/4" | 6.4mmx6.4mm | 22,23,24 |
| 3/8"x3/8" | 9.5mmx9.5mm | 19,20,21,22 |
| 1/2"x1/2" | 12.7mmx12.7mm | 16,17,18,19,20,21,22,23 |
| 5/8"x5/8" | 16mmx16mm | 18,19,20,21 |
| 3/4"x3/4" | 19mmx19mm | 16,17,18,19,20,21 |
| 1"x1/2" | 25.4mmx12.7mm | 16,17,18,19,20,21 |
| 1-1/2"x1-1/2" | 38mmx38mm | 14,15,16,17,18,19,20,21 |
| 1"x2" | 25.4mmx50.8mm | 14,15,16 |
| 2"x2" | 50.8mmx50.8mm | 12,13,14,15,16 |
| 2" x 3" | 50mm x 75mm | 2.0mm,2.5mm,1.65mm |
| 3" x 3" | 75mm x 75mm | 2.67mm,2.41mm,2.11mm,1.83mm,1.65mm |
| 2" x 4" | 50mm x 100mm | 2.11mm,2.5mm |
| 4" x 4" | 100mm x 100mm | 2.0mm,2.5mm |
Characteristics:1.use automatic machine, has firm welding spot and flat surface.
2.sturdy construction and strong integrity, even partially damaged could not influence the integrity.
3.low cost and wide application.
The welded wire mesh also called estazolam plate net in the construction external wall to have the function of preserving heat.
The welded wire mesh in roll can be made of various of baskets, such as frust basket and poultry cages.
The welded wire mesh also used in the agriculture to protect the crops do not damage by the wild animales.
What information we need if you require a price?
1. Wire diameter, aperture, height*width, finishing(galvanized or pvc coated).
2. Where you will use it?
3. A drawing is better for a completed gabion system.

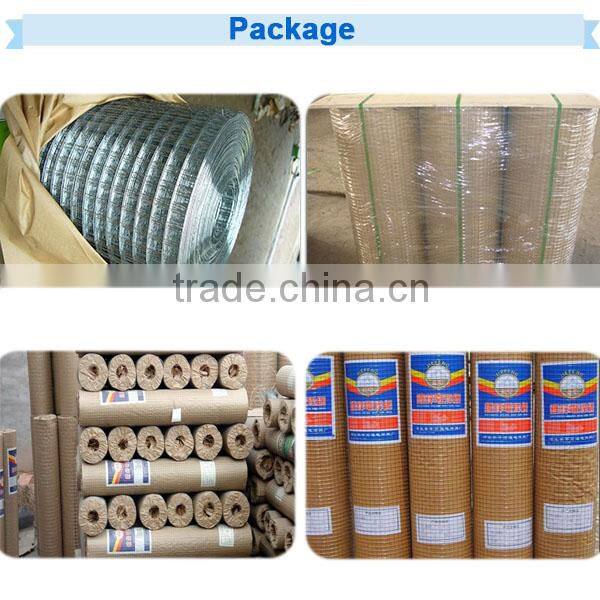

3.Package
Fence Panel: plastic film or water-proof paper first,
then wood pallet. Or as customers request.
Or as customers request.
