Specifications
Palisade Fencing for security fence1 Fence size:1.8m*2.5m,2.0*2.5m
2 palisade Center distance:120-180mm
3.security fence
ANPING COUNTY XINXIANG METAL WIRE MESH MANUFACTURE CO.,LTD

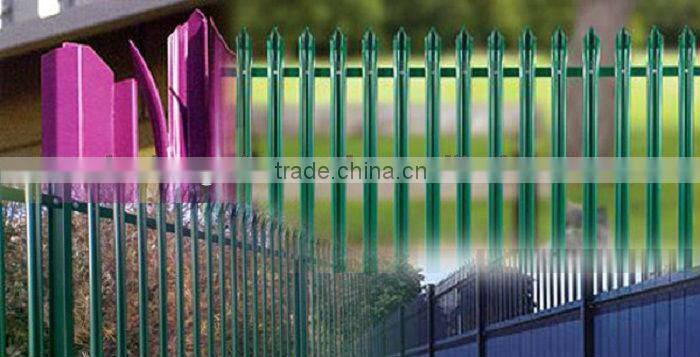

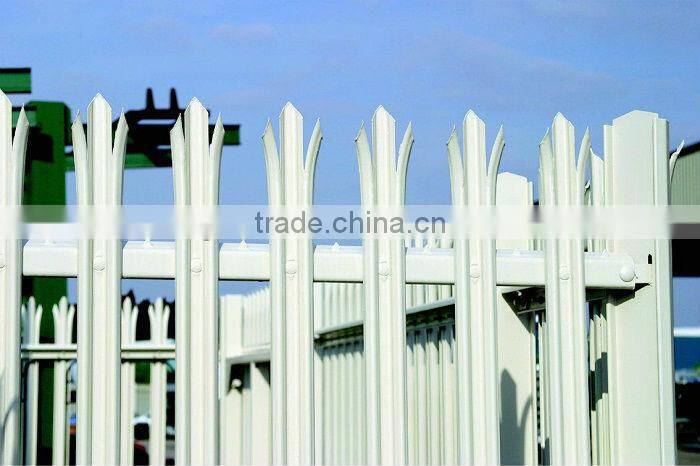

W and D type Palisade Fencing for security fence
1.Construction of Palisade Fencing for security fence:
A standard panel is constructed from hot and cold rolled steel sections supplied for assembly on site. Panels consist of 17
vertical pales manufactured in "D" or "W" profile with a choice of tops. The pales are fixed to rolled steel angle horizontals
which are supported by 102 x 44 joist posts.
2.Features and Uses of W type Palisade Fencing for security fence :
Palisade fence is strong, durable and fulfils many demanding roles. It is regularly used around industrial units, civic amenities, schools and other such applications where security is a major concern.
The security level of palisade can be increased by increasing the height of the fence, increasing the number of pales per panel, increasing the thickness of pale, adding a concrete plinth.
3.Connection of Palisade Fencing for security fence: bolted
pale: 60mm wide x 2mm thickness x 2.4m high
post: 50mm x 50mm x 1.6mm thickness x 2.95m high
Rail: 50mm x 50mm x 4.0mm thickness x 2.5m length (from post center to center)
Bolt: M8 and M12.
finish: galvanized with PVC coating.
W and D type
4.Specification of Palisade Fencng for security fence
Fence Height(mm) |
Pale Profile Sections 'D' (mm) |
Pale Profile Sections 'W' (mm) |
Horizontal Rails Angle Section (mm) |
IPA Section(mm) |
Length (mm) |
Support feet per bay |
1800 |
3 |
2.5 |
45x45x6 |
98 x 55 |
2400 |
2 |
2000 |
3 |
2.5 |
45x45x6 |
98 x 55 |
2625 |
2 |
2100 |
3 |
2.5 |
45x45x6 |
98 x 55 |
2725 |
2 |
2400 |
3 |
2.5 |
45x45x6 |
98 x 55 |
3125 |
2 |
3000 |
3 |
2.5 |
50x50x6 |
98 x 55 |
3925 |
2 |
