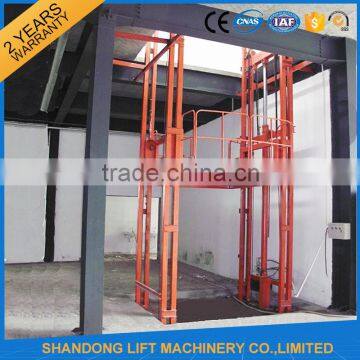

vertical guide rail goods lifts platform
- 3000 Set / Sets per Month
- Qingdao port China
- T/T
- China easy operated scissor lift platform, truck mounted platform scissor lift
- China low cost hydraulic elevating platform, truck mounted platform scissor lift
- 2015 hot sale double ladder stop type hydraulic scaffolding lift
- Big discount offered 8m lift self propelled hydraulic outdoor aerial work platform scissor lift
- China factory direct sale self propelled scissor lift table / hydraulic scissor lift
- China good working performance hydraulic scissor lift table, electric mini scissor lift
Product Details
Place of Origin: | Shandong, China | Brand Name: | SDLIFT | Model Number: | SJG3-3 |
Lift Mechanism: | Lift Chain | Lift Drive / Actuation: | Hydraulic | Power: | 3.0kw |
Rated Loading Capacity: | 3000kgs | Min. Lifting Height: | 200mm | Max. Lifting Height: | 3m |
Table Size: | 2m x 2m | Overall Dimensions: | 2.6m x 2.1m x 5m | Weight: | 2200kg |
Certification: | CE ISO | Warranty: | 24 Months | After-sales Service Provided: | Overseas third-party support available |
Product Description
Configuration
2) Scissor material: 200mm*100mm*10mm high strength Manganese Steel.
3) Hydraulic system: 380V/5.5Kw or others
4) High Precision Hydraulic Cylinder: 110*4sets
5) Piston Rod: 70*4 hard chromium plating surface.
6) High-pressure oil pump
7) Hydraulic oil: summer 46#, winter 32#
8) Controller: 1 control box below, 1 control panel above platform
Explosion-proof lock
Explosion-proof lock valve to avoid a sudden drop if emergency occurs.
Rails
The safety rails to guarantee safety of the goods above lift platform.
Safety
1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.
2) The safety rails to guarantee safety of the goods above lift platform.
3) Equipped 4 guide rails, to ensure the car parking lift runs more smoothly and steadily.
4) The limit switch system helps the car parking lift to stop at accurate position.
5) Electricity leakage protection device is equipped on , all electric components are CE certified.
6) All the car parking lift are passed 1.2 times loading test before leaving factory.
hydraulic cylinder and gear chain
control box, panel, limit switch
hydraulic power
Application
The car parking lift is widely used in indoor or outdoor of the buildings and warehouse. Used to lifting the goods or pallets between the floors.
To provide fast, efficient, convenient and safe access to mezzanines, basements, and any levels in multistoried building.
Pre-Sales Service
1) We can design the car parking lift as per your requirement.
2) The suitable car parking lift will be recommended to you once we get your requirement.
3) Shipment can be arranged from our port to your destination port.
After-Sales Service
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) 2 year warranty for whole machine without man-made faults.
7) We will send you parts for free if there are any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
9) Engineers are available to your country if necessary.
